STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.8
7.5. DISASSEMBLING THE CARDIO RECEIVER

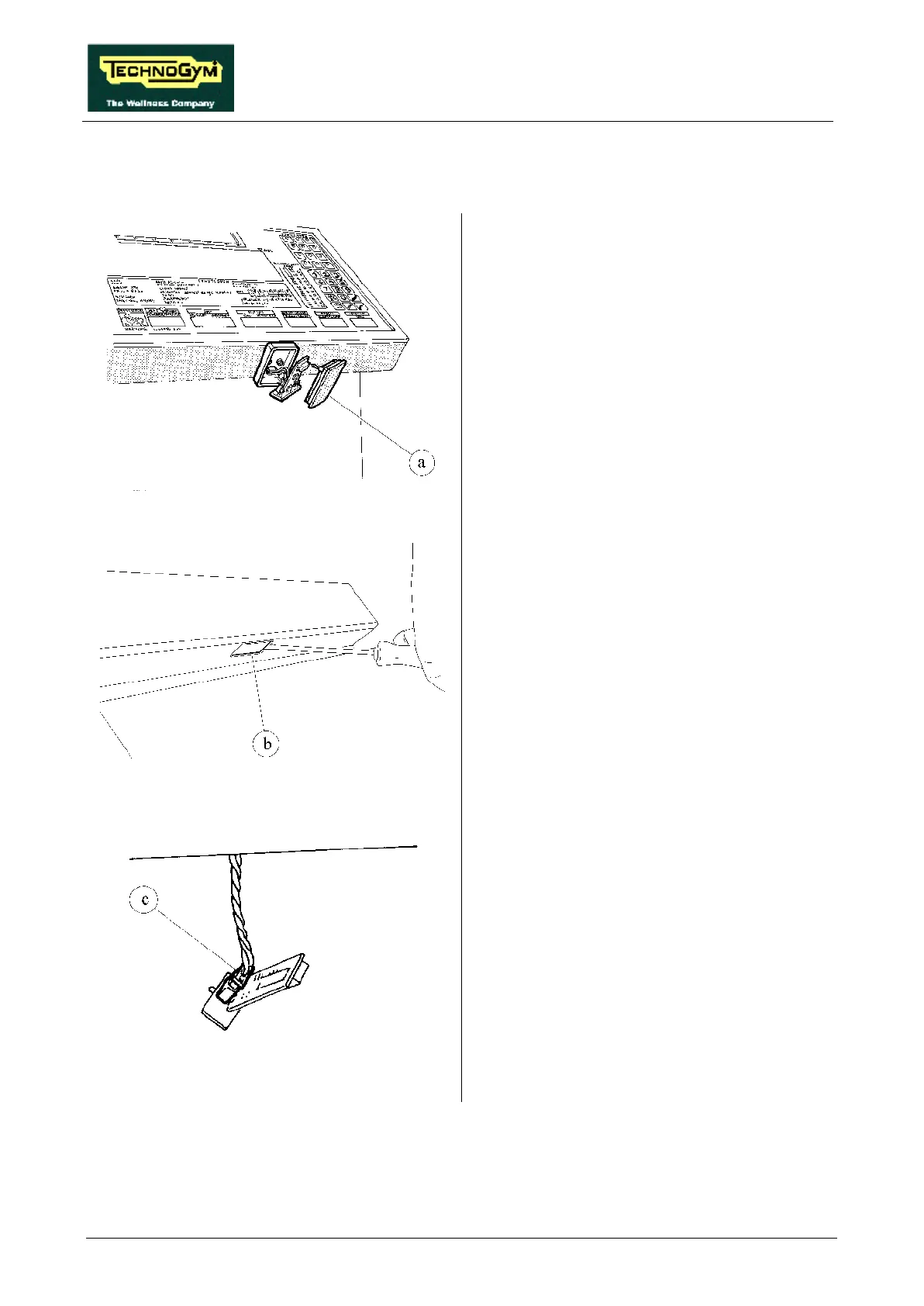

Figure 7.5-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
If the receiver is positioned under the display:
2. Use a flat blade screwdriver to open the box
a which contains the RECEIVER.
Figure 7.5-2
If the receiver is positioned inside the display:
3. Use a flat blade screwdriver to detach the box
b which contains the RECEIVER.
4. Open the box.
Figure 7.5-3
5. Disconnect connector c on cable ST-7 from
the RECEIVER.
6. Remove the RECEIVER.
To reassemble the RECEIVER, carry out the
above steps in reverse order, positioning it
between the 2 foam pads.
