8.8. ADJUSTING THE POSITION OF THE SLIDE AND BARS

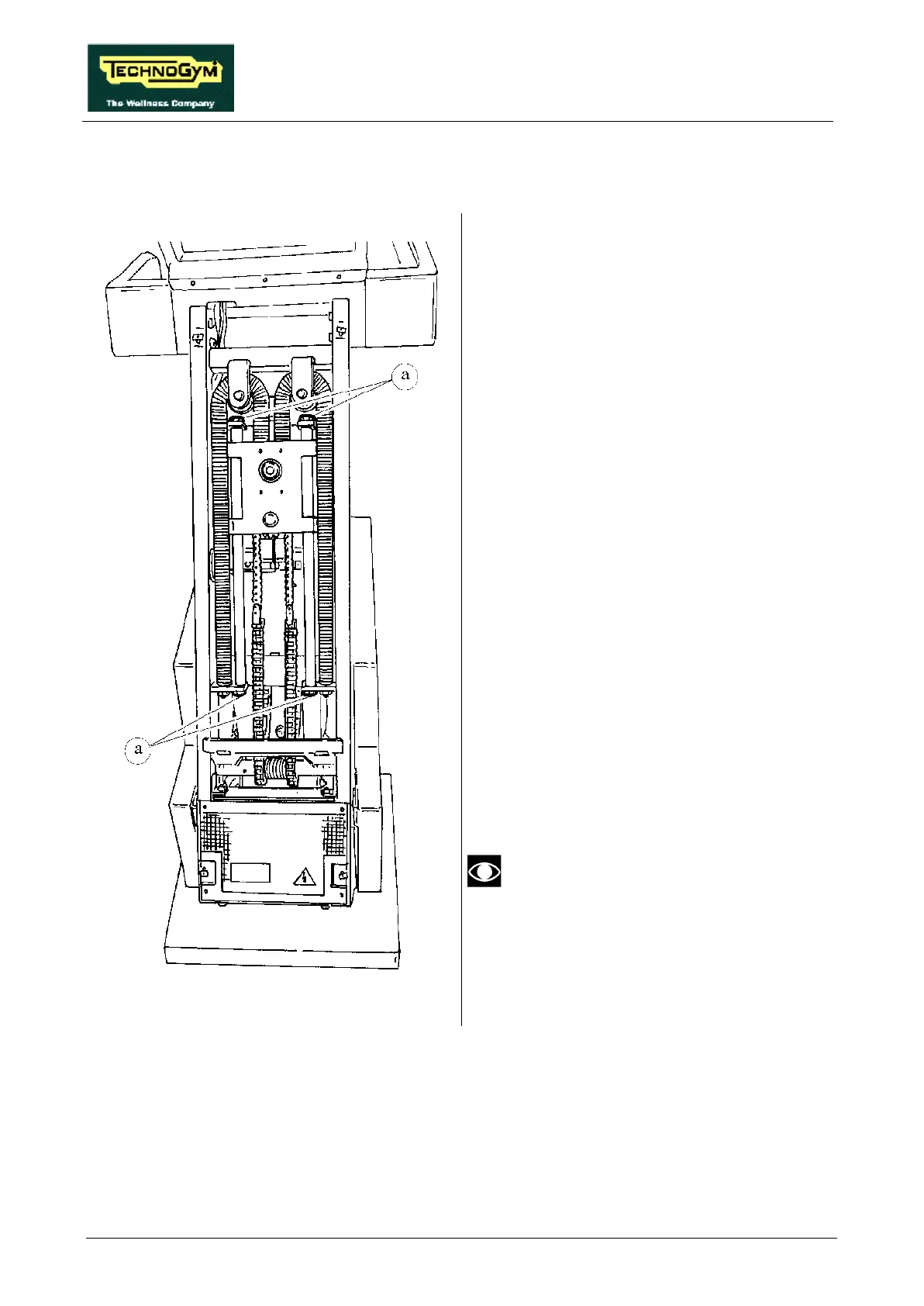

Figure 8.8-1
Carry out the procedures described in paragraph
7.6. “Disassembling the upright guard”.
To adjust the machine when no components have
been replaced:
1. Back off the 4 fixing screws a of the BARS.
2. Select stepping mode B (dependent stepping
motion).
3. Engage the pin of the selection knob in the
SLIDE.
4. Lightly lock down the 4 fixing screws a of
the BARS.
5. Select stepping mode A (independent
stepping motion).
6. Move the SLIDE up and down along the
BARS.
7. Check that the slide is able to move freely,
otherwise adjust the position of the BARS.
8. Repeat starting from point 2 until the SLIDE
is correctly engaged and moves smoothly
along the BARS.
9. After completing the adjustment, lock down
what previously backed off.
If this procedure is performed after
replacing a component of the SLIDE-
BAR group, it is advisable to carry out
the adjustment described above before
assembling the pedal chains and springs.
