STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.34
7.27. DISASSEMBLING THE SLIDE BARS

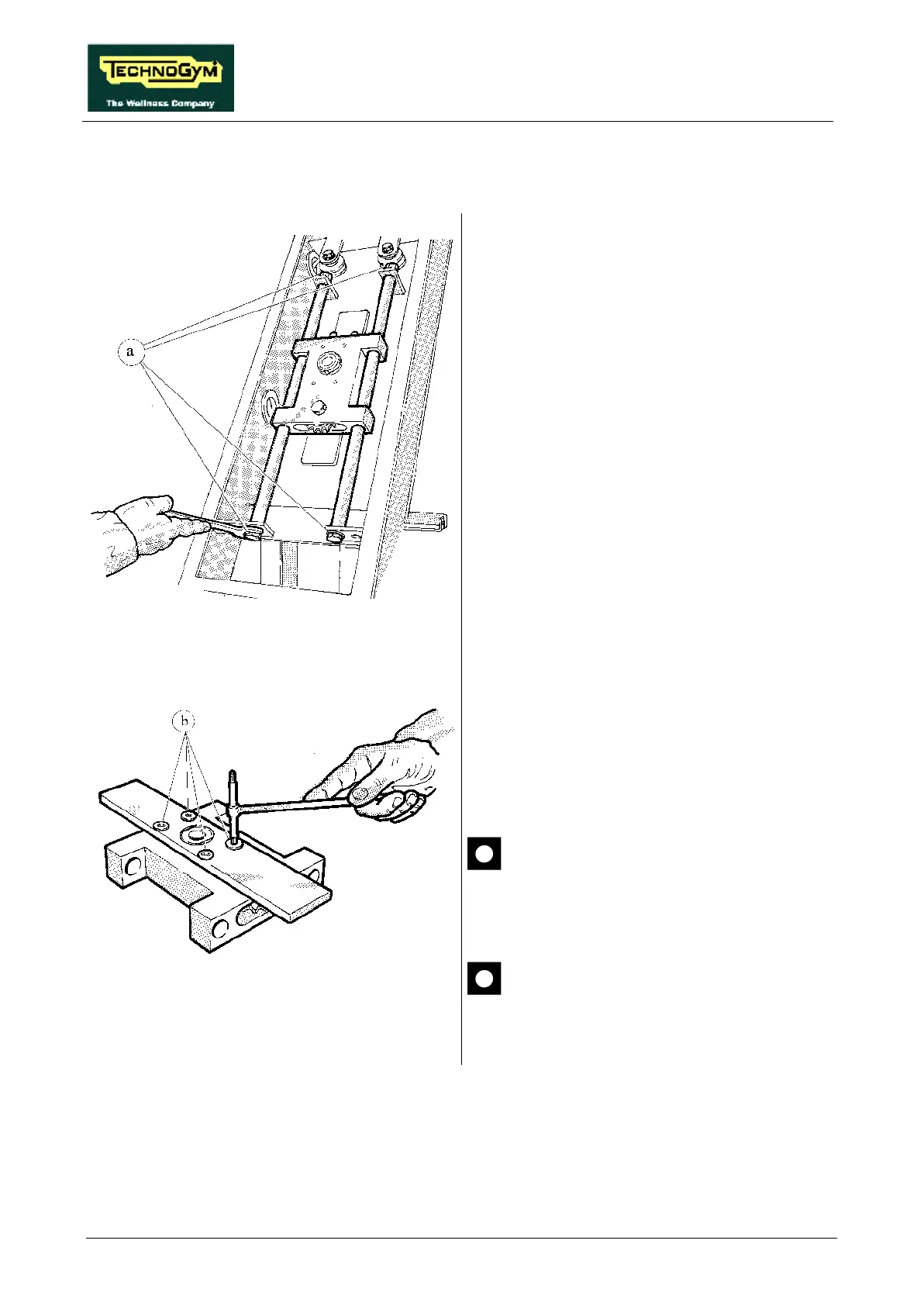

Figure 7.27-1
Carry out the procedures described in paragraph
7.15. “Disassembling the pedal chains” for the
chains on the short stretch only, and 7.25.
“Disassembling the springs”.
1. Select stepping mode B (dependent stepping
motion).
2. Back off the 4 screws a which fix the BARS
to the frame using a 17-mm wrench.
3. Remove the BARS and SLIDE.
Figure 7.27-2
To disassemble the runner from the SLIDE:
1. Back off the 4 screws b using a 5-mm hex T
wrench.
2. Remove the runner.
To reassemble the SLIDE and the guide BARS,
carry out the above steps in reverse order.
When reassembling the slide, be careful
to position it correctly: the dead hole
must be aligned with the fixing screw of
the slide sprocket.
After completing the procedure, adjust
the alignment of the BARS as described
in paragraph 8.8. .
