STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.17
7.13. DISASSEMBLING THE PEDAL CONNECTING RODS

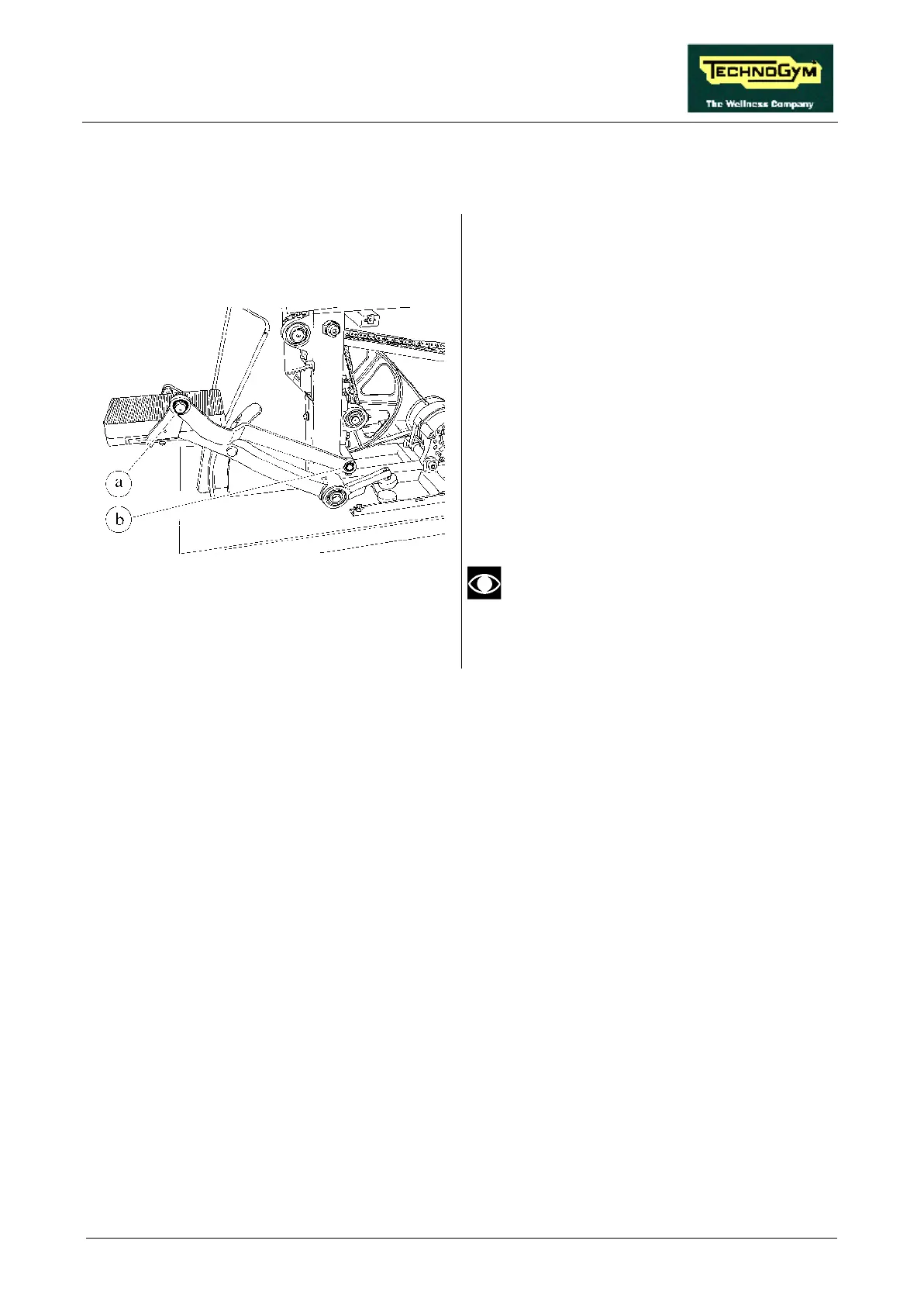

Figure 7.13-1
Carry out the procedures described in paragraph
7.8. “Disassembling the side guards”.
Working from both sides:
1. Remove the protective cap a.
2. Back off the screw underneath the cap using
a 17-mm wrench.
3. Back off screw b using a 17-mm wrench.
4. Remove the CONNECTING ROD.
To reassemble the PEDAL CONNECTING
RODS, carry out the above steps in reverse
order.
Before reassembling the CONNECTING
RODS, lubricate the bushings with a
thin layer of chain grease.
