STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.16

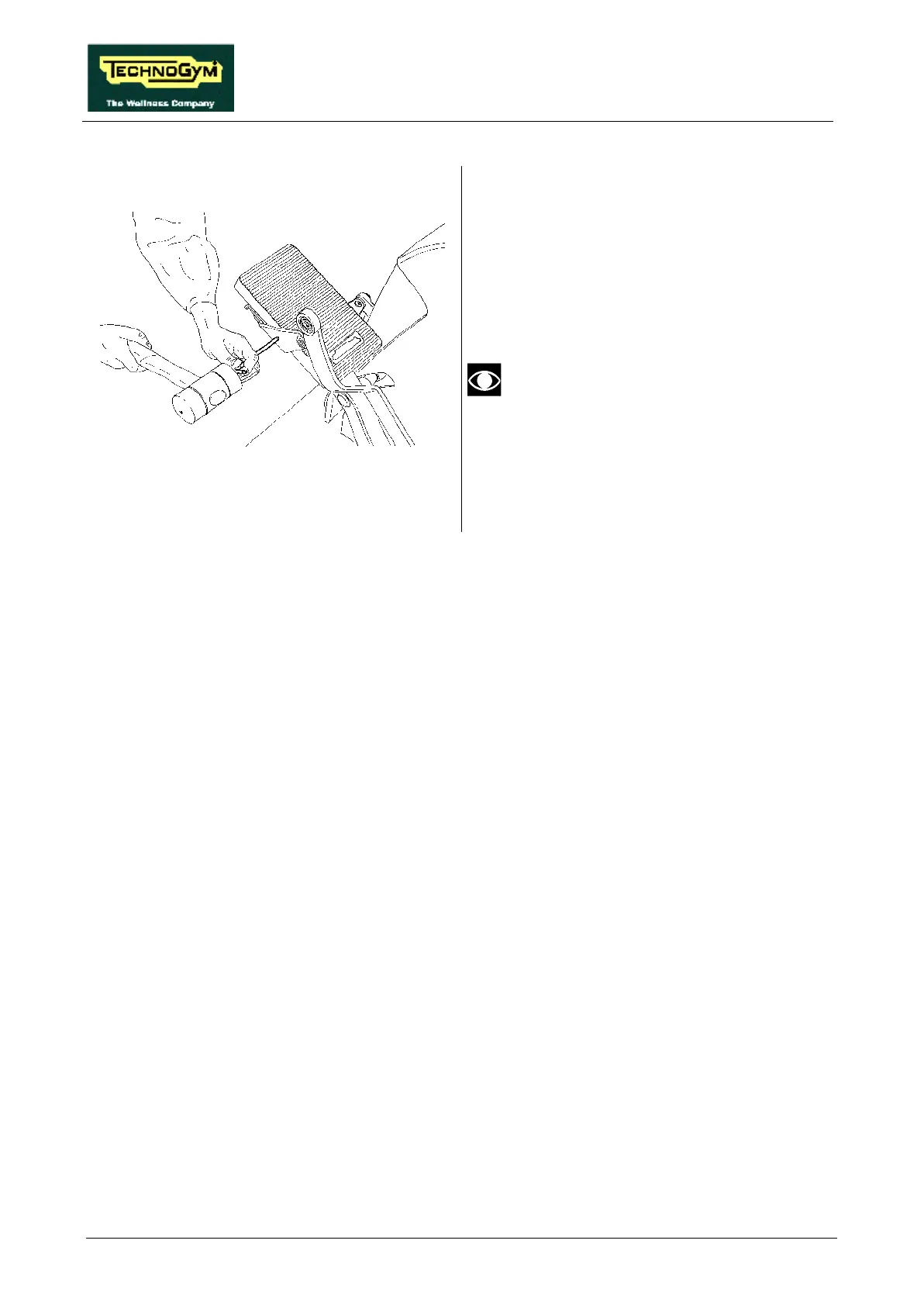

Figure 7.12-4
8. Using a T wrench and a rubber mallet,
remove the PEDAL GROUP pivot from the
lever.
9. Remove the PEDAL GROUP.
To reassemble the PEDAL GROUPS, carry out
the above steps in reverse order.
Align the fixing hole of the PEDAL
GROUP pivot with the corresponding
hole on the PEDAL GROUP.
To reassemble the PEDALS, carry out the above
steps in reverse order.
