STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.25
7.21. DISASSEMBLING THE SECONDARY SHAFT

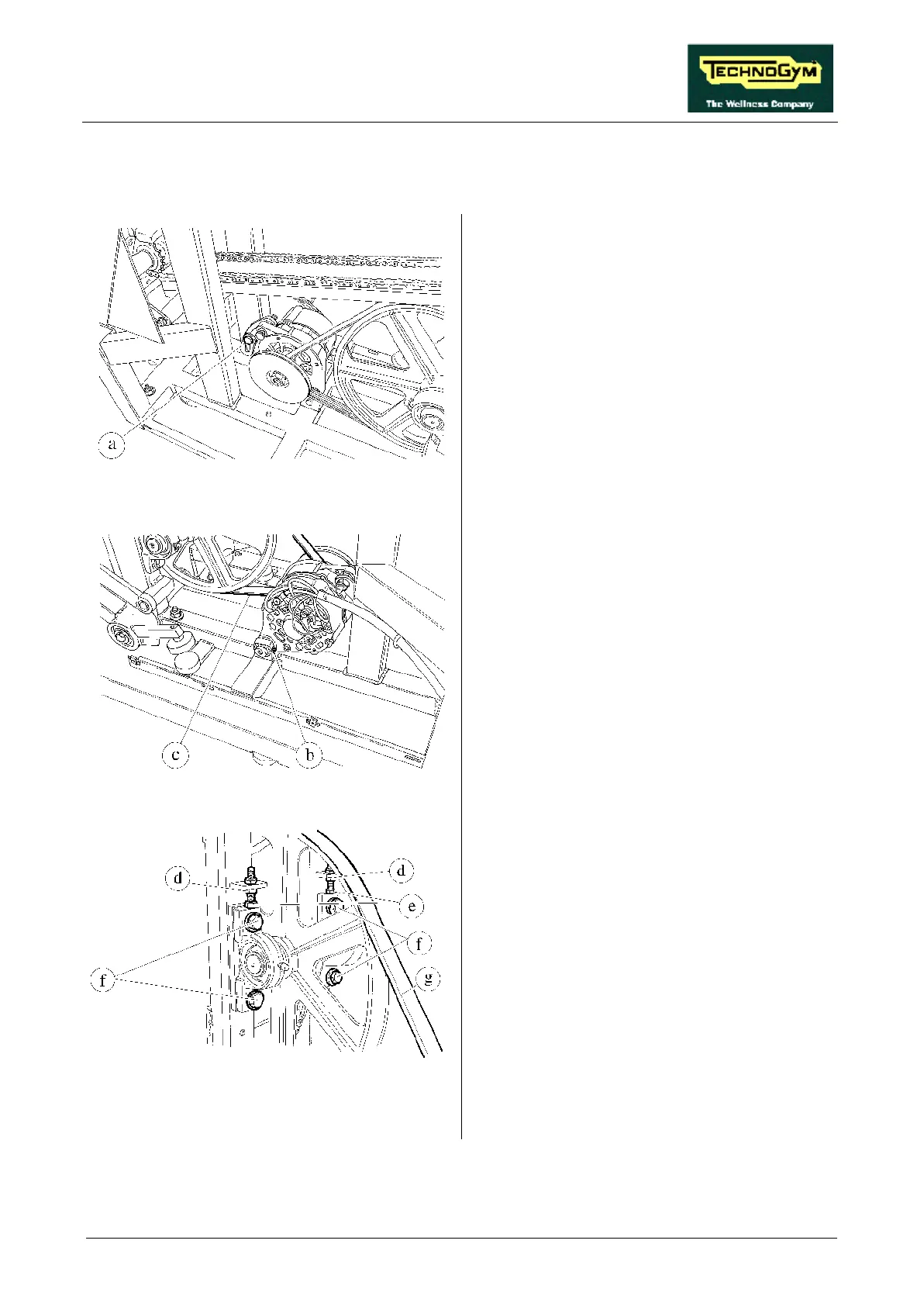

Figure 7.21-1
Carry out the procedures described in paragraph
7.16. “Disassembling the primary shaft -
secondary shaft chain ”.
1. Select stepping mode B (dependent stepping
motion).
2. Align the pedals.
3. Back off the nut a of the belt tension rod
using a 17-mm wrench.
Figure 7.21-2
4. Back off the dowel b using a 4-mm hex T
wrench.
5. Shift the alternator toward the pulley in order
to slacken belt c.
Figure 7.21-3
6. From both sides of the machine, back off the
lock nut d and lock down the SECONDARY
SHAFT adjusting screw e using a 13-mm
wrench.
7. Back off the 4 screws f which fix the
SECONDARY SHAFT to the frame, using a
17-mm wrench.
8. Remove the SECONDARY SHAFT, pulling
out belt g.
To reassemble the SECONDARY SHAFT, carry
out the above steps in reverse order.
Continued on the following page →
