7.24. DISASSEMBLING THE ALTERNATOR BRUSHES

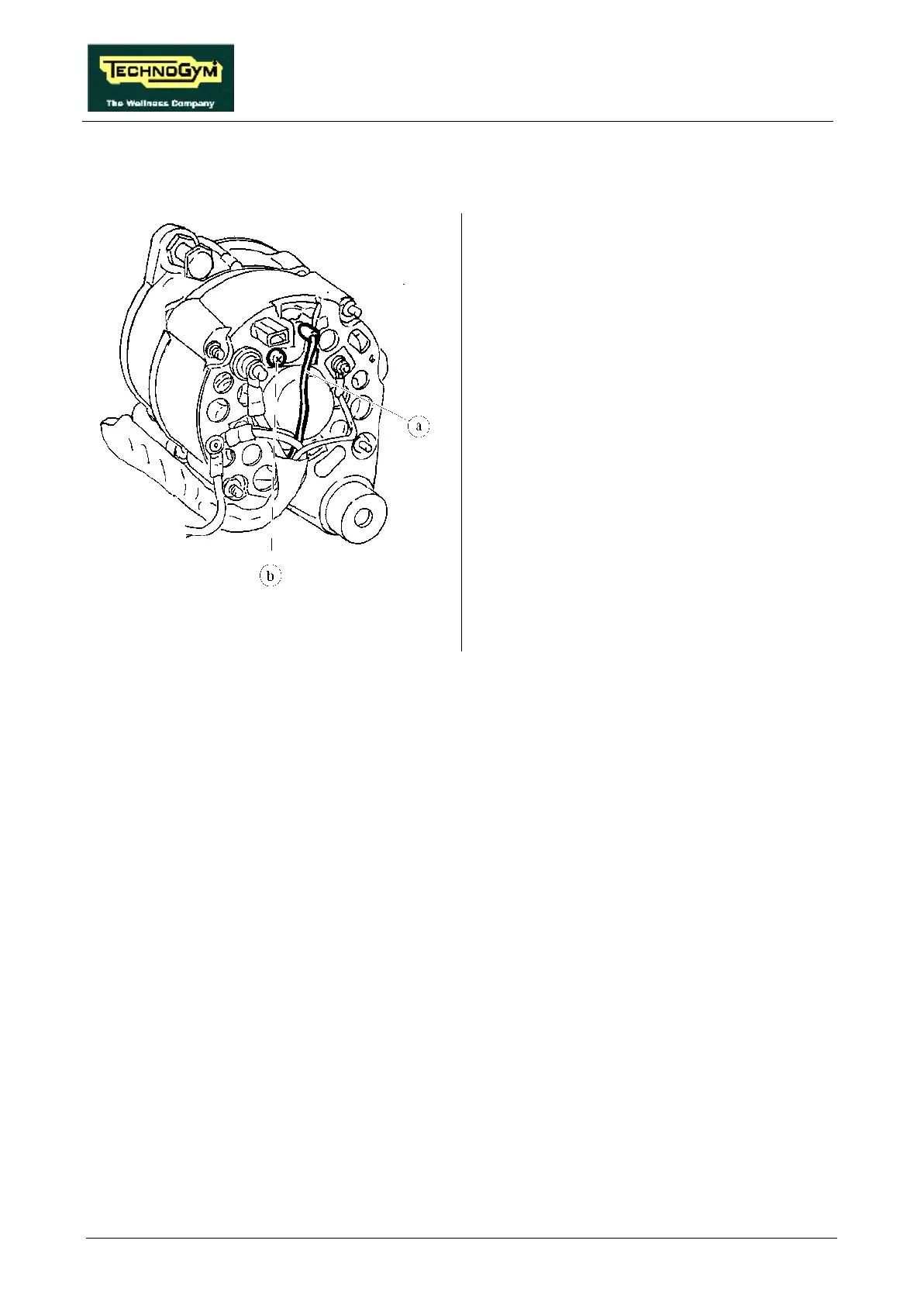

Figure 7.24-1
Carry out the procedures described in paragraph
7.8. “Disassembling the side guards”.
1. Disconnect cable a from the alternator.
2. Back off the clamping screw b of the
BRUSH group using a large Philips
screwdriver.
3. Remove the BRUSHES.
To reassemble the BRUSHES, carry out the
above steps in reverse order.
