STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.27

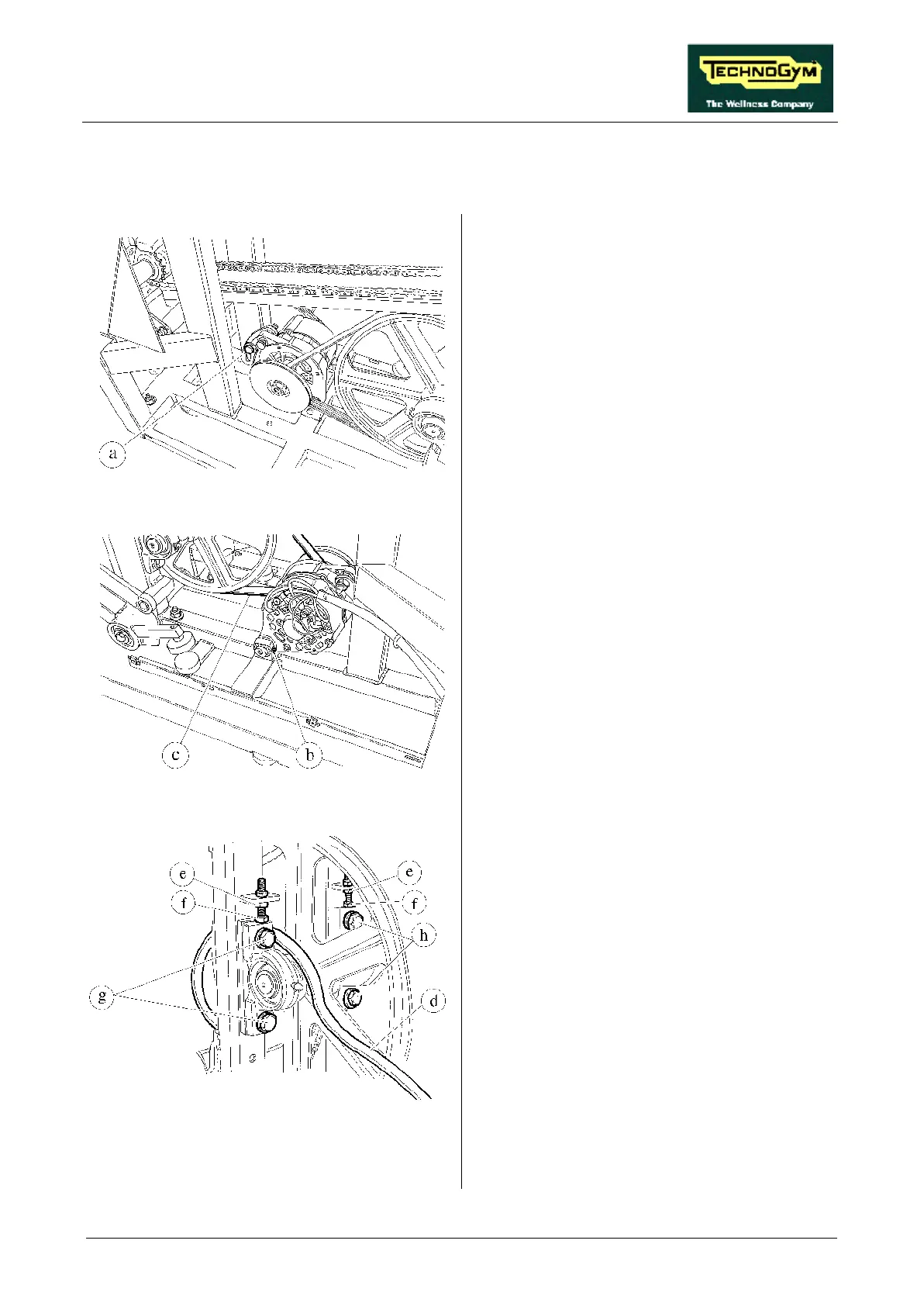

7.22. DISASSEMBLING THE BELT
Figure 7.22-1
Carry out the operations described in paragraph
7.8. “Disassembling the side guards”.
1. Back off the nut a of the belt tension rod
using a 17-mm wrench.
Figure 7.22-2
2. Back off the dowel b using a 4-mm hex T
wrench.
3. Shift the alternator toward the pulley in order
to remove the BELT c from the alternator
flywheel.
Figure 7.22-3
4. Remove the BELT d from the pulley on the
side opposite the chain.
5. Back off nut e and the secondary shaft
adjusting screw f using a 13-mm wrench.
6. Back off the 2 screws g which fix the
secondary shaft to the frame, using a 17-mm
wrench.
7. Back off the 2 screws h fixing the secondary
shaft to the frame using a 17-mm wrench.
8. Attempt to remove the BELT from the gap
created between the disassembled secondary
shaft support and the frame.
To reassemble the BELT, carry out the above
steps in reverse order.
Continued on the following page →
