Technogym Steprace - Disassembling the Slide Drive Sprocket

STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.24
7.20. DISASSEMBLING THE SLIDE DRIVE SPROCKET

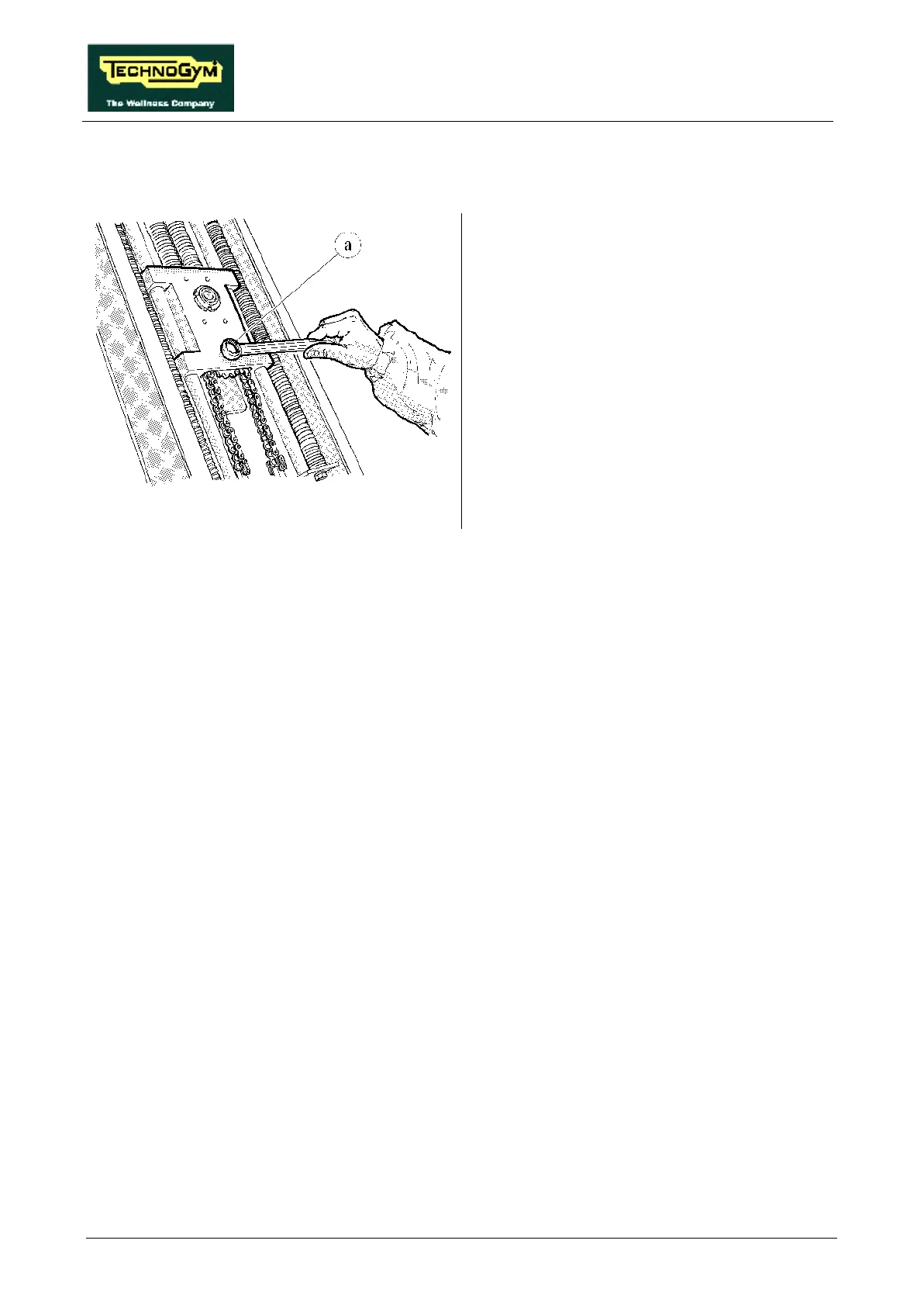

Figure 7.20-1
Carry out the procedure described in paragraph
7.6. “Disassembling the upright guard”.
1. Select stepping mode B (dependent stepping
motion).
2. Back off screw a using a 22-mm wrench.
3. Remove the SLIDE DRIVE SPROCKET and
its spacers.
To reassemble the DRIVE SPROCKET, carry
out the above steps in reverse order.
