7.16. DISASSEMBLING THE PRIMARY SHAFT - SECONDARY
SHAFT CHAIN

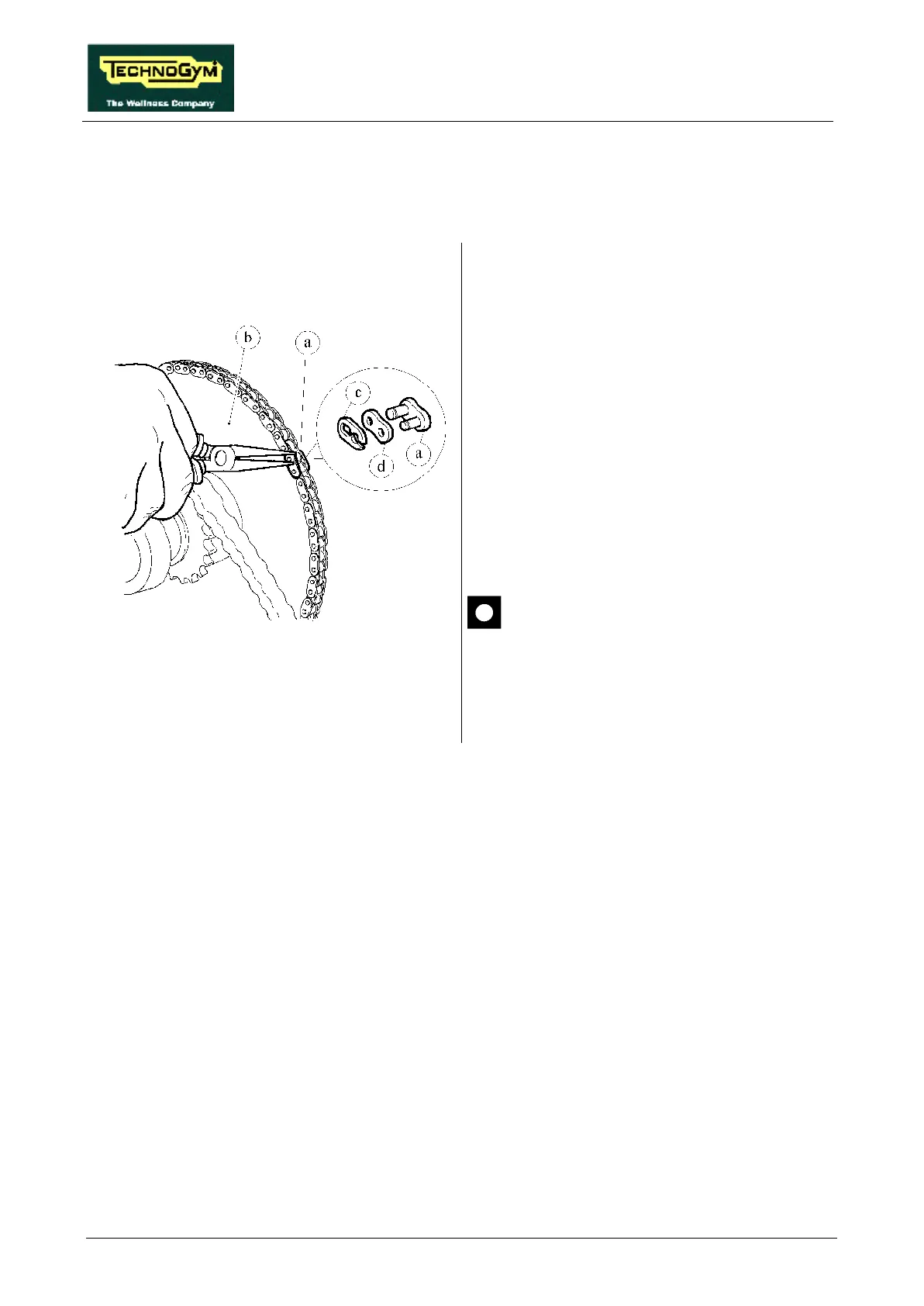

Figure 7.16-1
Carry out the procedures described in paragraphs
7.8. “Disassembling the side guards” and 7.9.
“Disassembling the chain guard”.
1. Turn the CHAIN until the connecting link a
is on the sprocket wheel of primary shaft b.
2. Release clip c from the link using the special
pliers.
3. Remove the connecting plate d.
4. Remove the connecting link a.
5. Remove the CHAIN.
To reassemble the CHAIN, carry out the above
steps in reverse order.
After completing this procedure, adjust
the alignment and tension of the
PRIMARY SHAFT - SECONDARY
SHAFT CHAIN as described in
paragraphs 8.3. and 8.4. .
