STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.12
7.9. DISASSEMBLING THE CHAIN GUARD

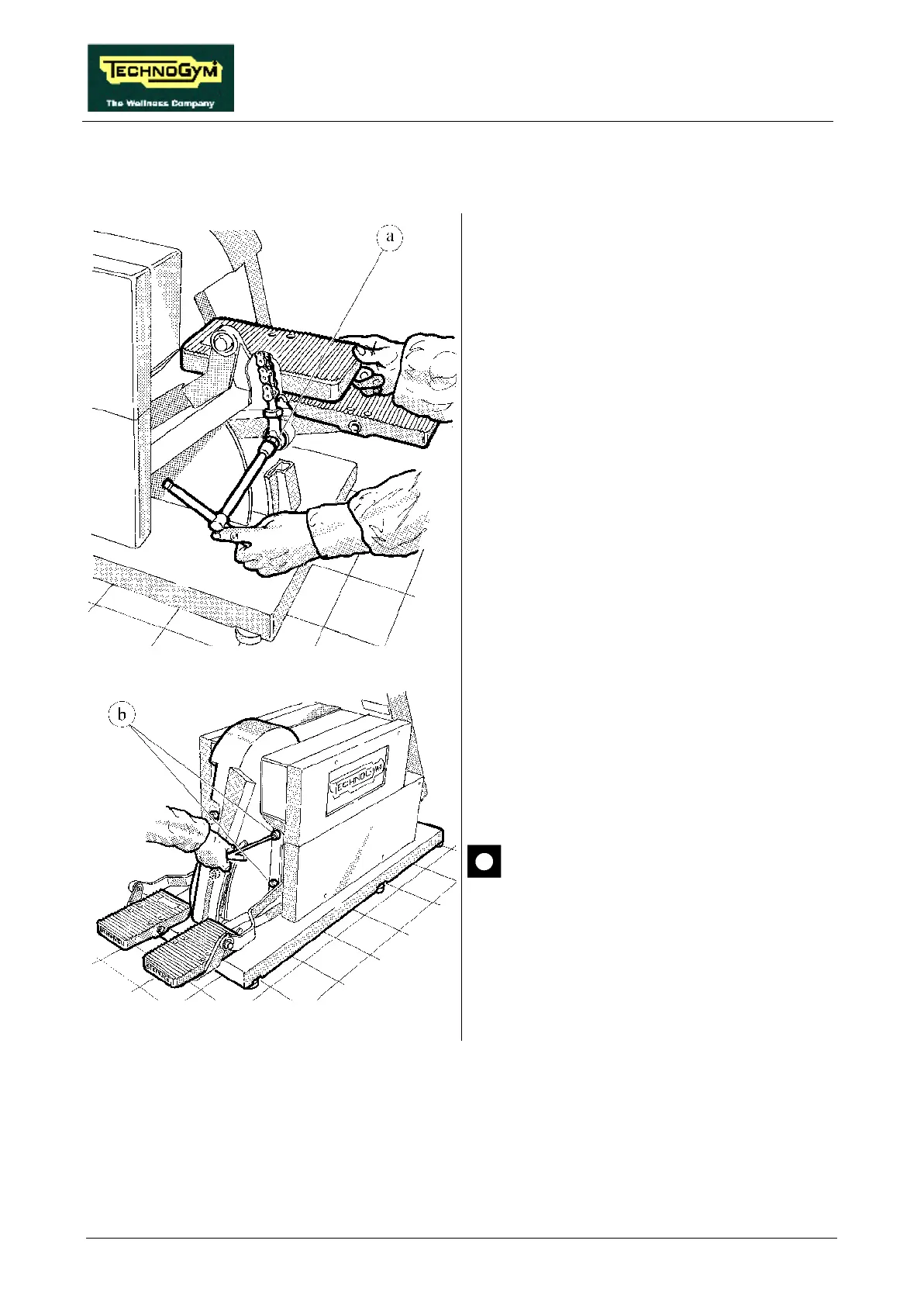

Figure 7.9-1
Carry out the procedures described in paragraph
7.8. “Disassembling the side guards”.
1. Working on the right pedal, back off the
screw a which fixes the pedal to the ball joint
using a 17-mm socket wrench.
2. Lower the pedal to the ground.
3. Repeat the same procedure on the left pedal.
Figure 7.9-2
4. On each side of the machine, back off the 2
screws b using a 5-mm hex wrench.
5. Pull the CHAIN GUARD upward to remove
it.
On old machines, the CHAIN GUARD
was fixed to the base with a screw that
can be accessed by turning the machine
over on one side.
To reassemble the CHAIN GUARD, carry out
the above steps in reverse order.
