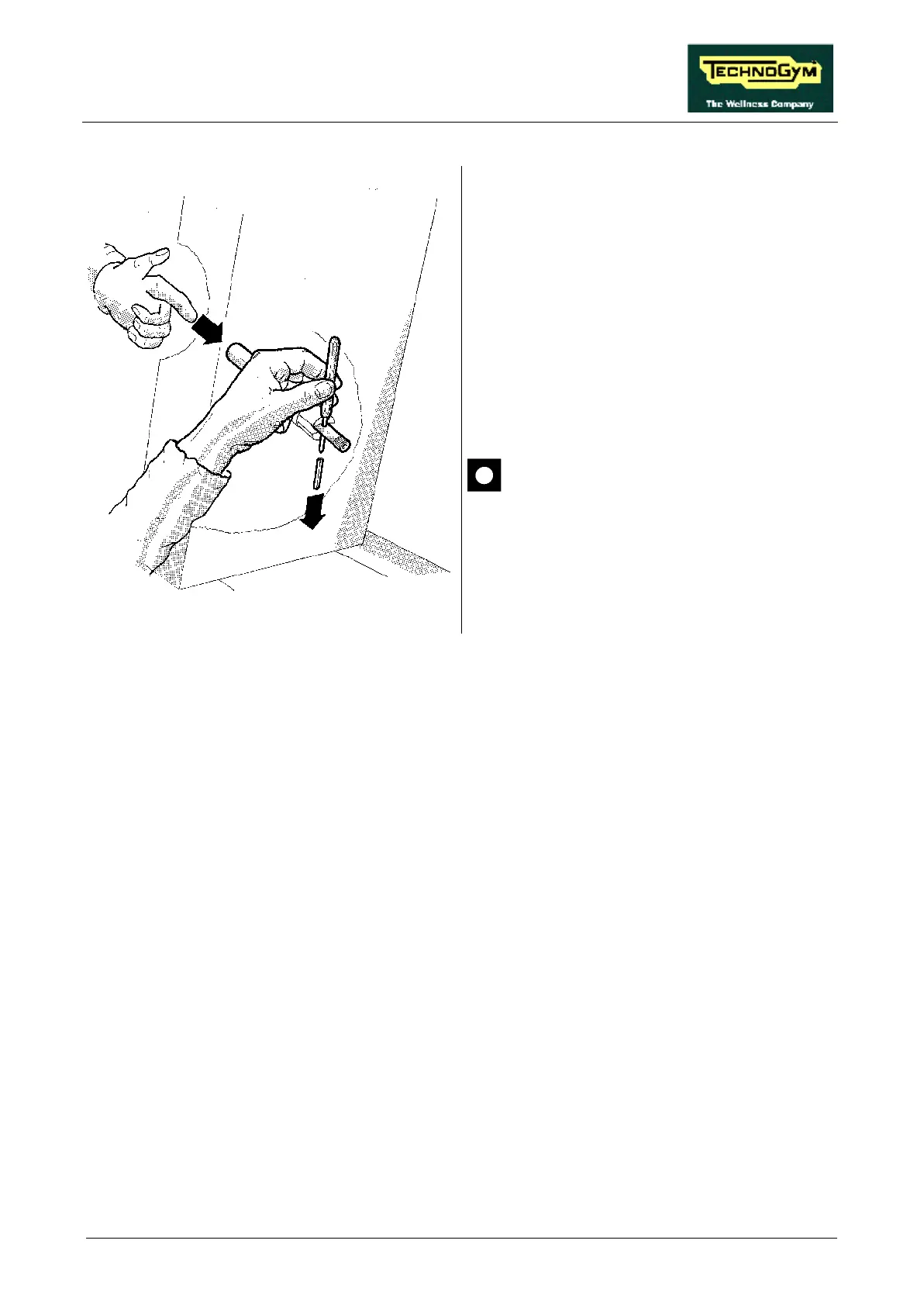

Figure 7.29-3
5. Pushing the PIN out from the upright,
remove the pointed tool.
6. Gradually reduce the pressure on the PIN
until it can be removed from the front
together with its spring.
To reassemble the SELECTION KNOB PIN,
carry out the above steps in reverse order.
To correctly reassemble the
SELECTION KNOB PIN, the slotted
end must be on the side of the knob.
