UPS EVO DSP PLUS Modular 55 User’s manual
9.2 Exterior
In the front of the UPS, there are: Control Panel and door lock.
The side panels are lockable. The casters at the bottom of the UPS cabinet can be used to move over short
distances. There are four leveling feet to fix and stabilize the UPS cabinet on the ground. Refer to Figure 9.2.
To access the interior, open the door with the key
Inside the cabinet, there are Breakers, Static Transfer Switch (STS) Module, Power Module slots and Battery
Module slots (Battery Module Slots is only for Standard Series).
All wiring terminal blocks are located in the back of cabinet.

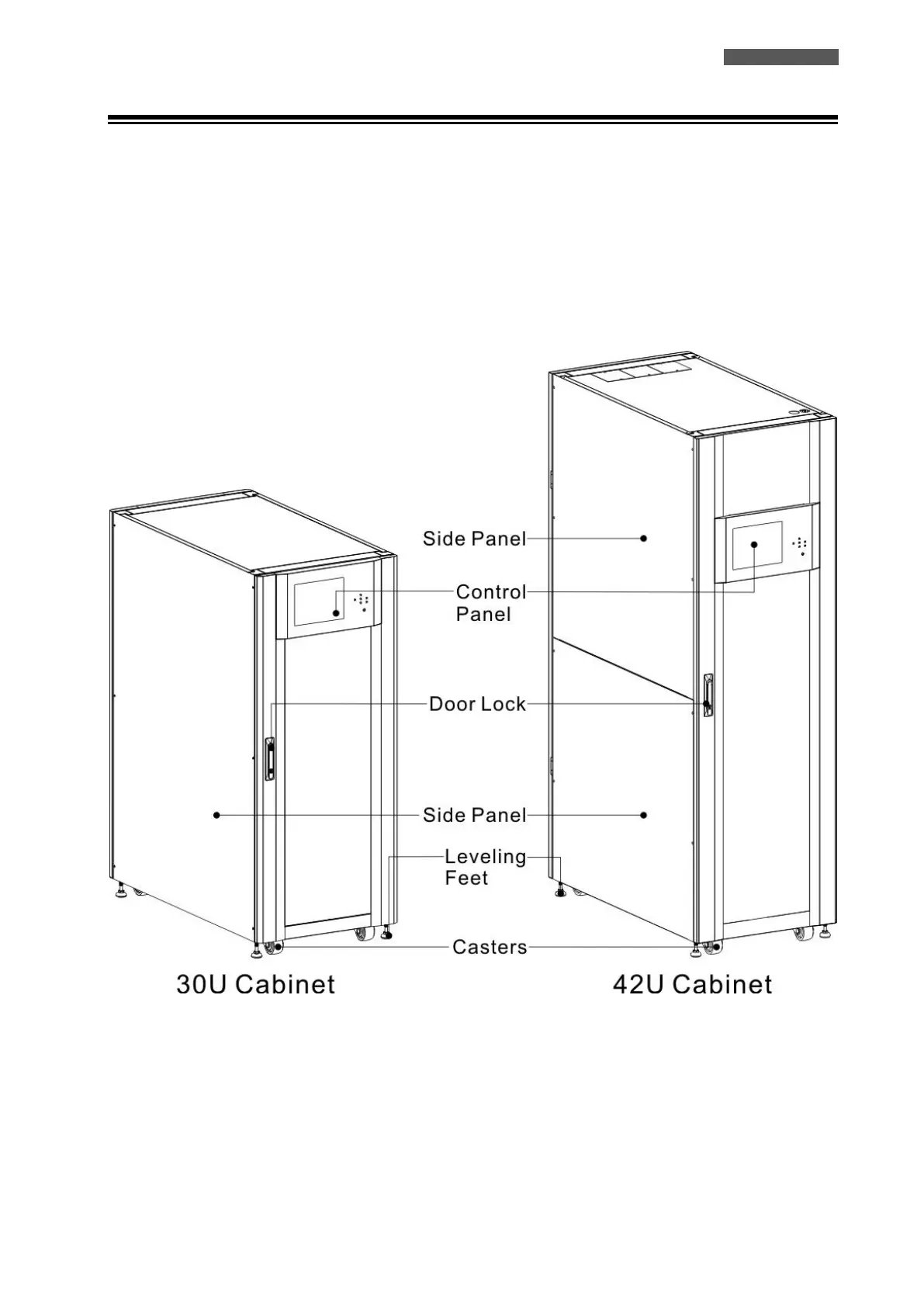

Figure 9.2 – Type of UPS Cabinet
