9 External Description
9.1 Type of UPS Cabinet
There are two series of UPS Cabinets: STANDARD and EXTENDED for different requirements.
The Standard Cabinets have the Battery Modules inside and they can work as a Stand-Alone UPS or be connected
to Battery externally.
The Extended Cabinets don’t have the Battery Module compartments. The Battery has to be connected
externally.
Please consider the External Battery space and wiring gauge for installation.
Standard Series
Extended Series
Cabinet
Height
30U
42U
30U
30U
42U
42U
Switch Unit
1
1
1
1
1
1
STS
1
1
1
1
1
1
Max. Power
Module
3
4
4
6
8
10
Battery
Module
12
20
N/A
N/A
N/A
N/A

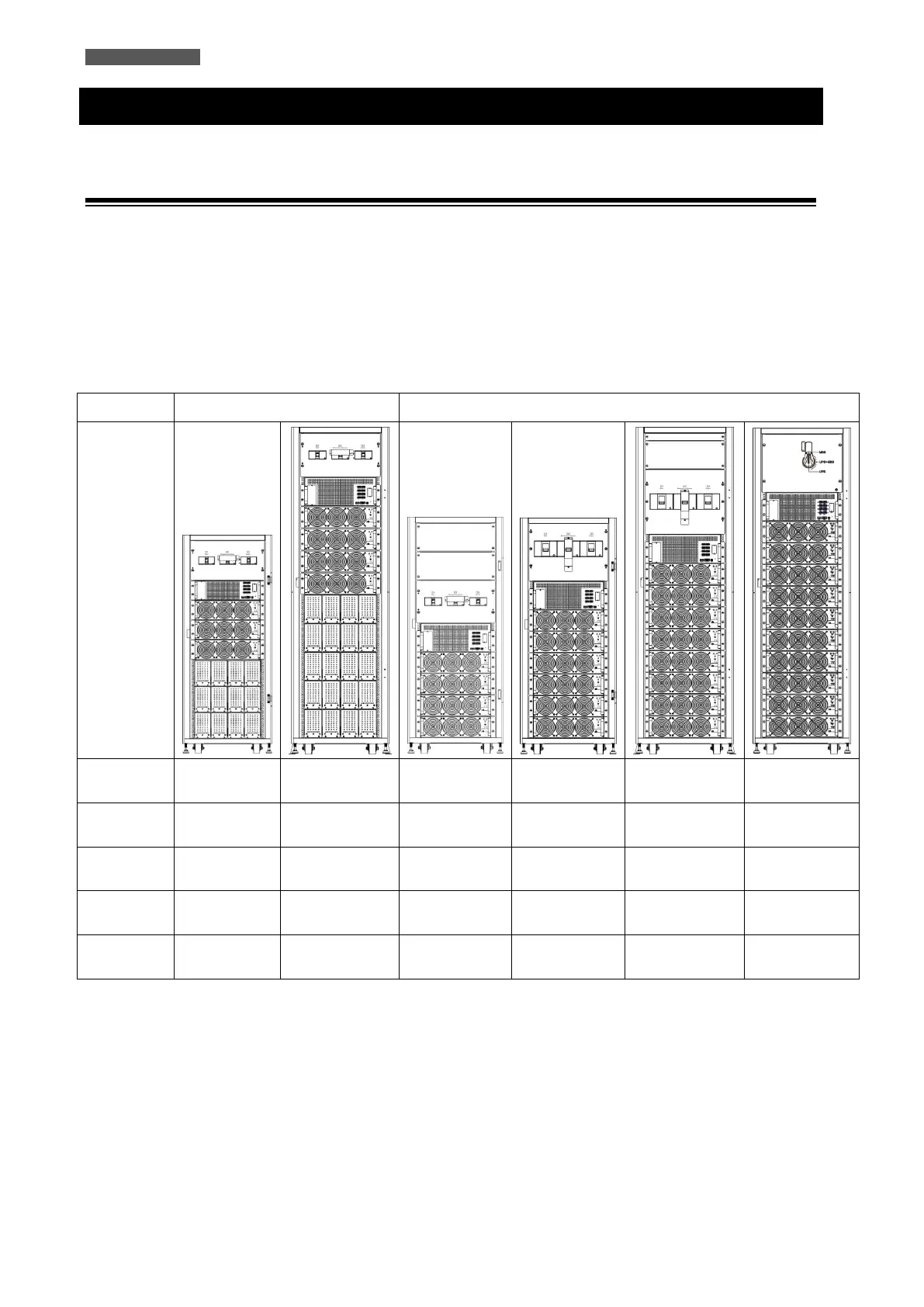

Figure 9.1 – Type of UPS Cabinet
