UPS EVO DSP PLUS Modular 67 User’s manual

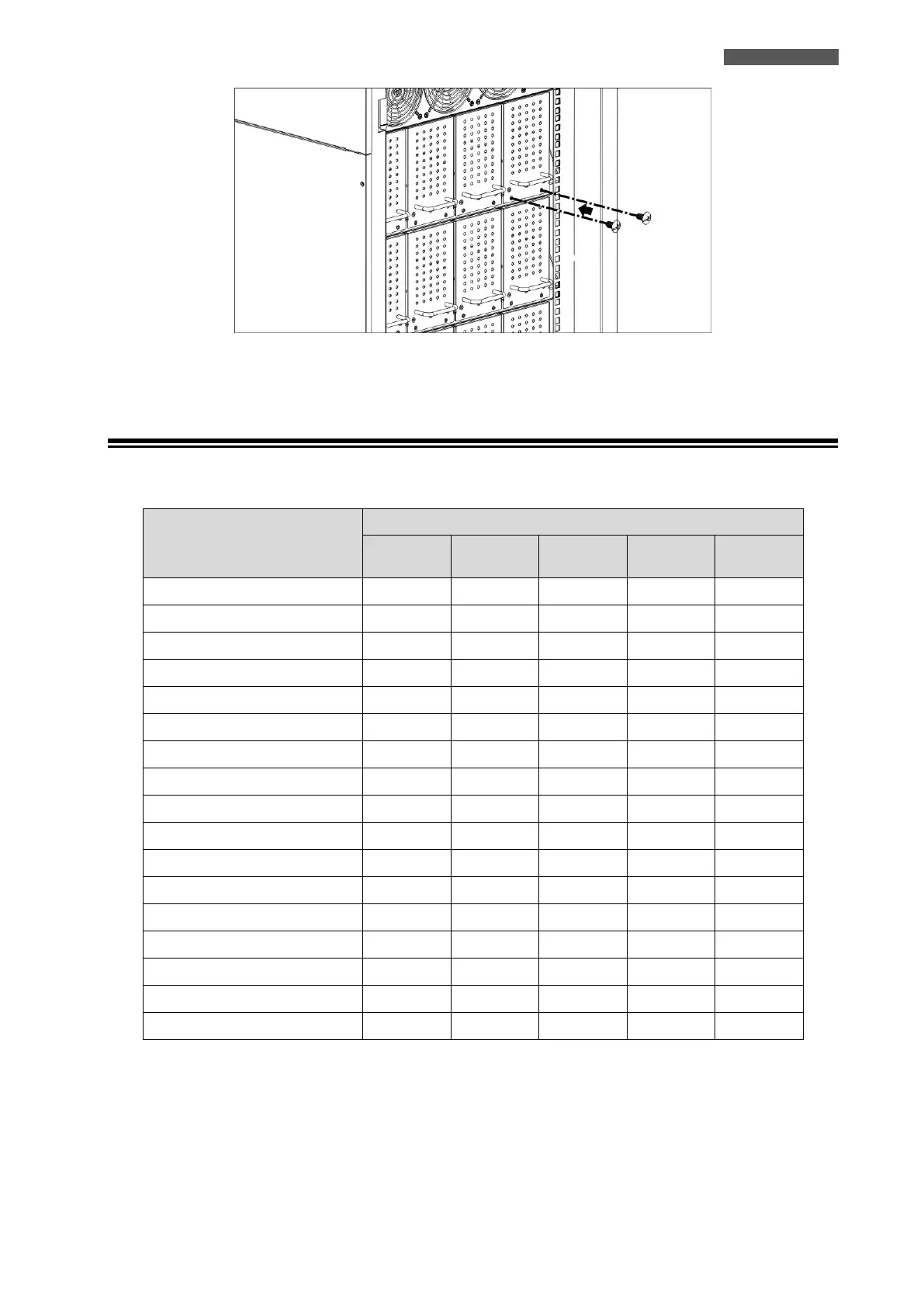

Figure 10.8 – Secure the Battery Modules to the cabinet
10.3 Wiring
The following Table shows the recommended size for Input, Output and Battery wires, for some power sizes.
Model
Wiring spec (cross section) mm
2
Input
Phases
Output
Phases
Neutral
Battery
Ground
EVO DSP PLUS Modular 20KVA
6,6
6,6
6,6
25
6,6
EVO DSP PLUS Modular 30KVA
10
10
10
25
10
EVO DSP PLUS Modular 40KVA
16
16
16
70
16
EVO DSP EVO Modular 60KVA
35
35
35
95
35
EVO DSP EVO Modular 80KVA
50
50
50
150
50
EVO DSP EVO Modular 90KVA
70
70
70
150
70
EVO DSP EVO Modular 100KVA
70
70
70
185
70
EVO DSP EVO Modular 120KVA
95
95
95
240
95
EVO DSP EVO Modular 140KVA
150
150
150
300
150
EVO DSP EVO Modular 150KVA
150
150
150
120 x 2
150
EVO DSP EVO Modular 160KVA
185
185
185
120 x 2
185
EVO DSP EVO Modular 180KVA
240
240
240
150 x 2
240
EVO DSP EVO Modular 200KVA
240
240
240
210 x 2
240
EVO DSP EVO Modular 210KVA
300
300
300
240 x 2
300
EVO DSP EVO Modular 240KVA
300
300
300
240 x 2
300
EVO DSP EVO Modular 270KVA
120 x 2
120 x 2
120 x 2
300 x 2
120 x 2
EVO DSP EVO Modular 300KVA
150 x 2
150 x 2
150 x 2
185 x 3
150 x 2
