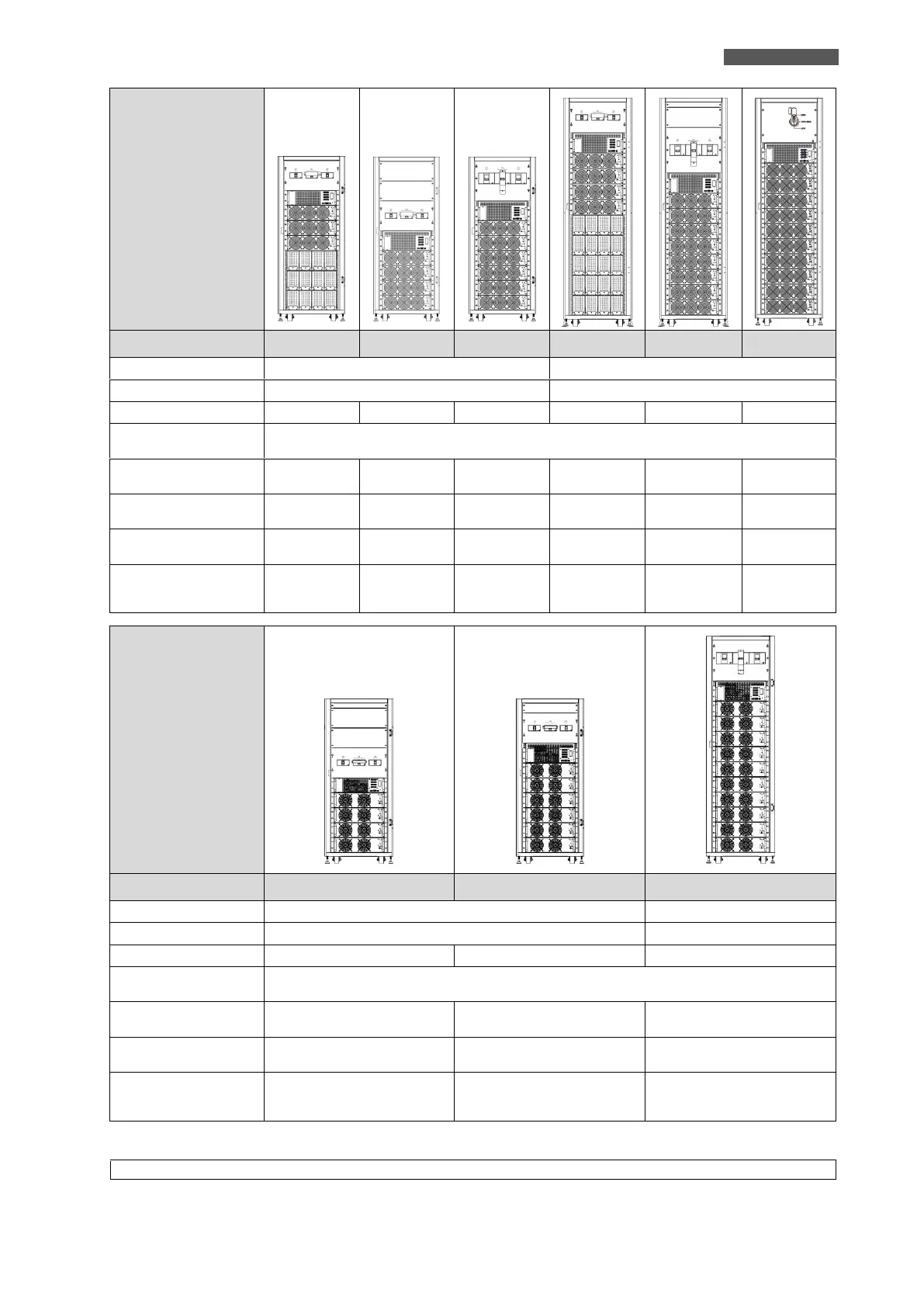

UPS EVO DSP PLUS Modular 89 User’s manual
CONFIGURATION with
30KVA or 20KVA
Power Modules
Cabinet Type
30U-90KVA
30U-120KVA
30U-180KVA
42U-120KVA
42U-210KVA
42U-300KVA
Height
30U
42U
Dimension (W x H x D)
600 x 1475 x 1100 mm
600 x 2010 x 1100 mm
STS Power
90KVA
120KVA
180KVA
120KVA
210KVA
300KVA
Type of installable
Power Modules
30KVA or 20KVA
Max Number of Power
Modules
3
4
6
4
8
10
Max Power
(with 20KVA Modules)
60KVA
80KVA
120KVA
80KVA
160KVA
200KVA
Max Power
(with 30KVA Modules)
90KVA
120KVA
180KVA
120KVA
210KVA(*)
300KVA
Number of Battery
Layers (4 Battery
Module on each layer)
3
(12 Battery
Modules)
4
(16 Battery
Modules)
-
5
(20 Battery
Modules)
-
-
CONFIGURATION
with 20KVA
Power Modules
Cabinet Type
30U-80KVA
30U-120KVA
30U-200KVA
Height
30U
42U
Dimension (W x H x D)
600 x 1475 x 1100 mm
600 x 2010 x 1100 mm
STS Power
80KVA
120KVA
200KVA
Type of installable
Power Modules
20KVA
Max Number of Power
Modules
4
6
10
Max Power
(with 20KVA Modules)
80KVA
120KVA
200KVA
Number of Battery
Layers (4 Battery
Module on each layer)
-
-
-
(*) in case of 8 x 30KVA Power Modules, one must be Redundant
Technical data may change without prior notice
