Tektronix 222 User Manual

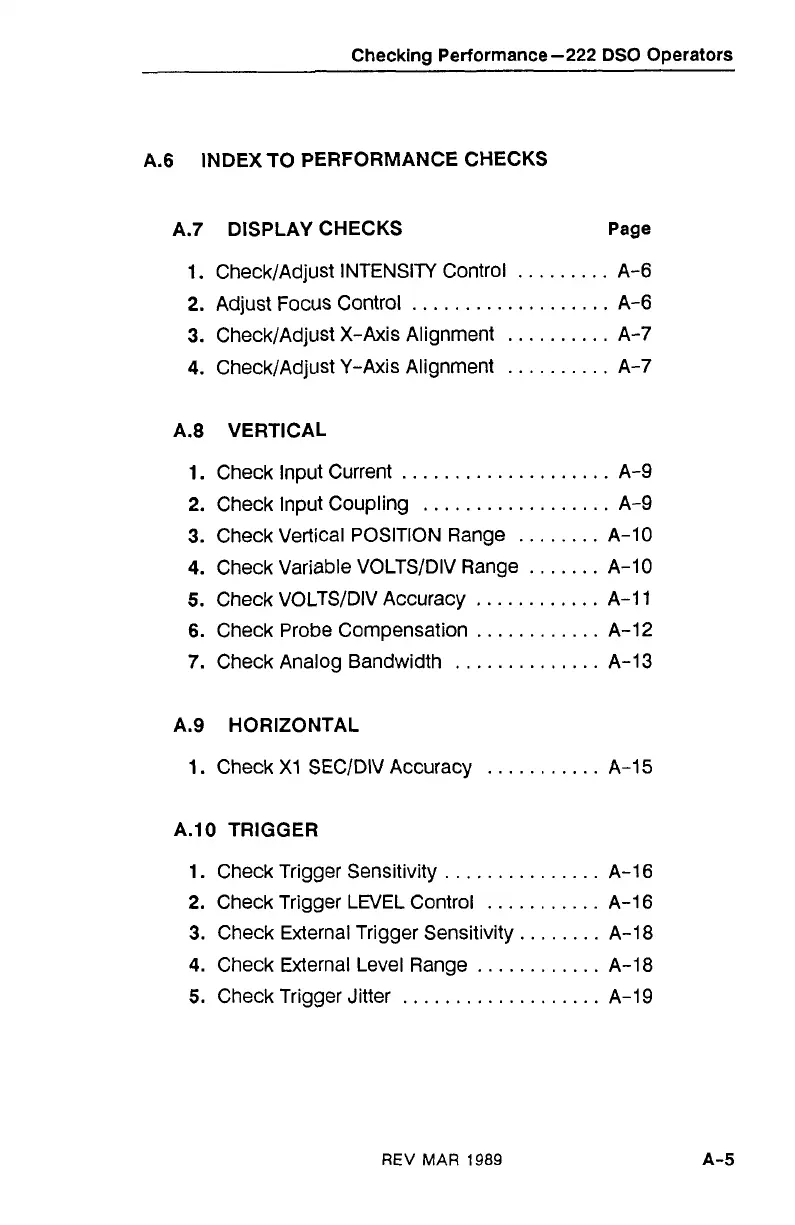

Checking Performance-222 DSO Operators
A.6 INDEX TO PERFORMANCE CHECKS
A.7 DISPLAY CHECKS
Page
......... 1 . CheckIAdjust INTENSITY Control
A-6
2 . Adjust Focus Control ................... A-6
.......... 3 . CheckJAdjust X-Axis Alignment
A-7
.......... 4 . CheckIAdjust Y-Axis Alignment
A-7
A.8 VERTICAL
1
. Check Input Current .................... A-9
2 . Check Input Coupling .................. A-9
3 . Check Vertical POSITION Range ........ A-10
4 . Check Variable VOLTSIDIV Range ....... A-10
5 . Check VOLTSIDIV Accuracy ............ A-11
6
. Check Probe Compensation ............ A-12
7 . Check Analog Bandwidth .............. A-13
A.9 HORIZONTAL
1 . Check XI SECIDIV Accuracy ........... A-15
A.10 TRIGGER
1
. Check Trigger Sensitivity ............... A-16
2 . Check Trigger LEVEL Control ........... A-16
3 . Check External Trigger Sensitivity ........ A-18
4 . Check External Level Range ............ A-18
5 . Check Trigger Jitter ................... A-19
REV MAR 1989

Tektronix 222 Specifications

General

Brand	Tektronix
Model	222
Category	Test Equipment
Language	English
