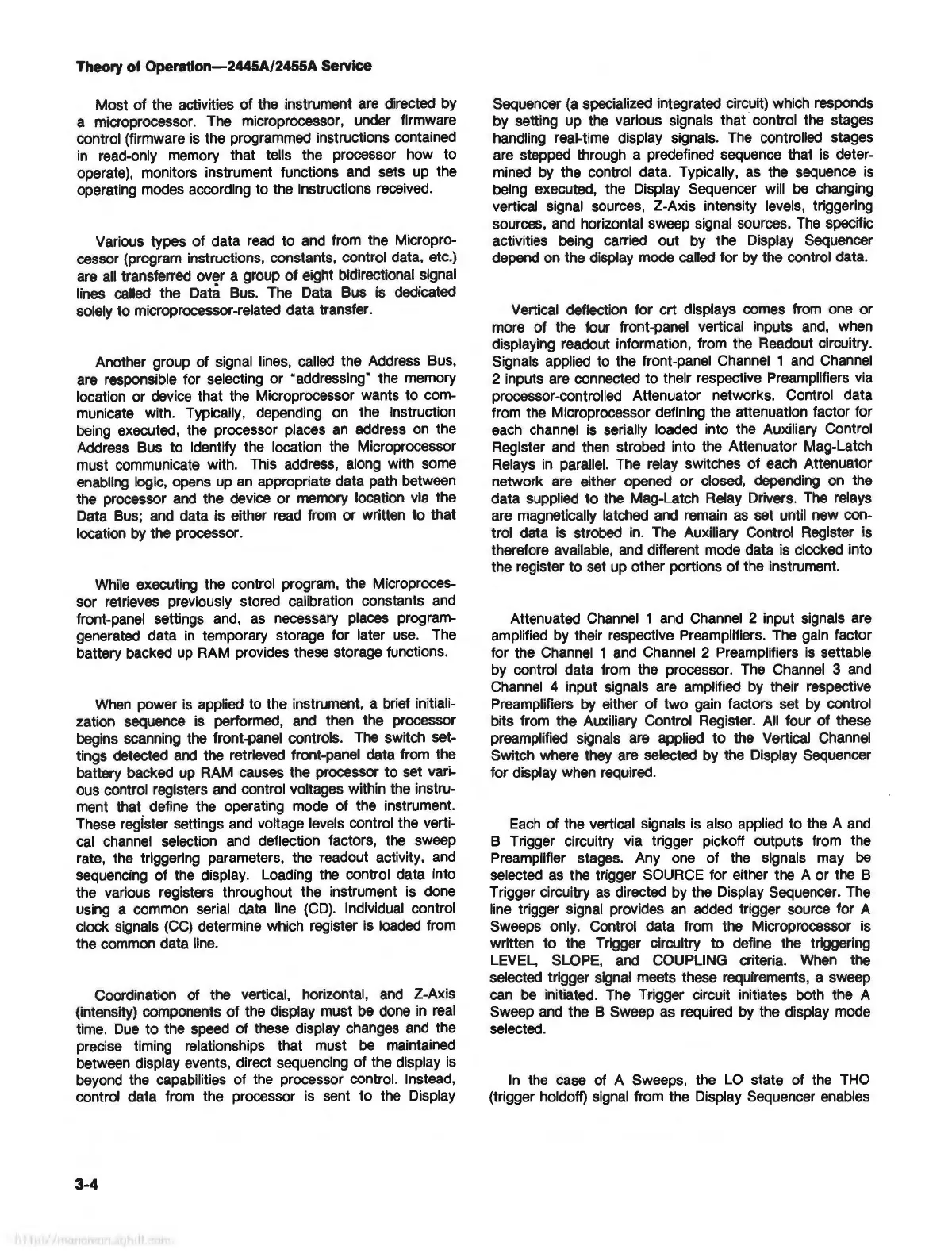

Theory of Operation-2445A/2455A Service
Most of the activities of the instrument
are
directed by
a microprocessor. The microprocessor, under firmware
control (firmware
is
the programmed instructions contained
in
read-only memory that tells the processor how to
operate), monitors instrument functions
and
sets up the
operating modes according to the instructions
received.
Various types of data
read
to
and
from the Micropro-
cessor (program instructions, constants, control data, etc.)
are
all
transferred over a group of eight bidirectional signal
lines called the Data Bus. The Data Bus is dedicated
solely to microprocessor-related data transfer.
Another group of signal lines, called the Address Bus,
are responsible for selecting or "addressing" the memory
location or device that the Microprocessor wants to com-
municate with. Typically, depending
on
the instruction
being
executed, the processor places
an
address
on
the
Address Bus to identify the location the Microprocessor
must communicate with. This address, along with some
enabling
logic,
opens up
an
appropriate data path between
the processor
and
the device or memory location via the
Data
Bus
;
and
data is either
read
from or written to that
location
by
the processor.
While
executing the control program, the Microproces-
sor retrieves previously stored calibration constants
and
front-panel settings
and,
as
necessary places program-
generated data
in
temporary storage for later
use.
The
battery backed
up
RAM
provides these storage functions.
When
power
is
applied to the instrument, a brief initiali-
zation sequence
is
performed,
and
then the processor
begins scanning
the
front-panel controls.
The
switch set-
tings detected
and
the retrieved front-panel data from the
battery backed
up
RAM
causes the processor to set vari-
ous control registers
and
control voltages within the instru-
ment that define the operating mode of the instrument.
These register settings
and
voltage levels control the verti-
cal
channel
selection
and
deflection factors,
the
sweep
rate, the triggering parameters, the readout activity,
and
sequencing of the display. Loading
the
control data into
the various registers throughout the instrument
is
done
using a common serial data
line
(CD).
Individual control
clock signals
(CC)
determine which register
is
loaded from
the common data
line
.
Coordination of the vertical, horizontal,
and
Z-Axis
(intensity) components of the display must
be
done
in
real
time.
Due
to the
speed
of these display changes
and
the
precise timing relationships that must
be
maintained
between display events, direct sequencing of the display
is
beyond the capabilities of
the
processor control. Instead,
control data from the processor
is
sent to the Display
3-4
Sequencer
(a
specialized integrated circuit) which responds
by setting up
the
various signals that control the stages
handling real-time display signals.
The
controlled stages
are
stepped through a predefined sequence that
is
deter-
mined
by
the control data. Typically,
as
the sequence is
being
executed, the Display Sequencer will
be
changing
vertical signal sources, Z-Axis intensity levels, triggering
sources,
and
horizontal sweep signal sources.
The
specific
activities
being
carried out by the Display Sequencer
depend
on
the display mode called for by the control data.
Vertical deflection for crt displays comes from one or
more of the four front-panel vertical inputs
and,
when
displaying readout information, from
the
Readout circuitry.
Signals applied to the front-panel Channel 1
and
Channel
2 inputs are connected to their respective Preamplifiers
via
processor-controlled Attenuator networks. Control data
from
the
Microprocessor defining the attenuation factor for
each
channel
is
serially loaded into the Auxiliary Control
Register
and
then
strobed into the Attenuator Mag-Latch
Relays
in
parallel. The relay switches of
each
Attenuator
network are either opened or closed, depending
on
the
data supplied to
the
Mag-Latch Relay Drivers.
The
relays
are magnetically latched
and
remain
as
set until new con-
trol data
is
strobed
in
.
The
Auxiliary Control Register
is
therefore available,
and
different mode data
is
clocked into
the register to set up other portions of the instrument.
Attenuated
Channel
1
and
Channel 2 input signals are
amplified by their respective Preamplifiers.
The
gain factor
for the
Channel
1
and
Channel 2 Preamplifiers
is
settable
by control data from the processor.
The
Channel
3
and
Channel
4 input signals are amplified by their respective
Preamplifiers
by
either of two gain factors set
by
control
bits from the Auxiliary Control Register.
All
four of these
preamplified signals
are
applied to the Vertical
Channel
Switch where they are selected by
the
Display Sequencer
for display
when
required.
Each
of the vertical signals is also applied to the A
and
B Trigger circuitry
via
trigger pickoff outputs from the
Preamplifier stages. Any
one
of
the
signals may
be
selected
as
the trigger
SOURCE
for either the A or
the
B
Trigger circuitry
as
directed by the Display Sequencer. The
line
trigger signal provides
an
added
trigger source for A
Sweeps only. Control data from the Microprocessor is
written to the Trigger circuitry to define the triggering
LEVEL,
SLOPE,
and
COUPLING criteria.
When
the
selected trigger signal meets these requirements, a sweep
can
be
initiated. The Trigger circuit initiates both the A
Sweep
and
the B Sweep
as
required
by
the display mode
selected.
In
the
case of A Sweeps, the
LO
state of
the
THO
(trigger holdoff) signal from the Display Sequencer enables
