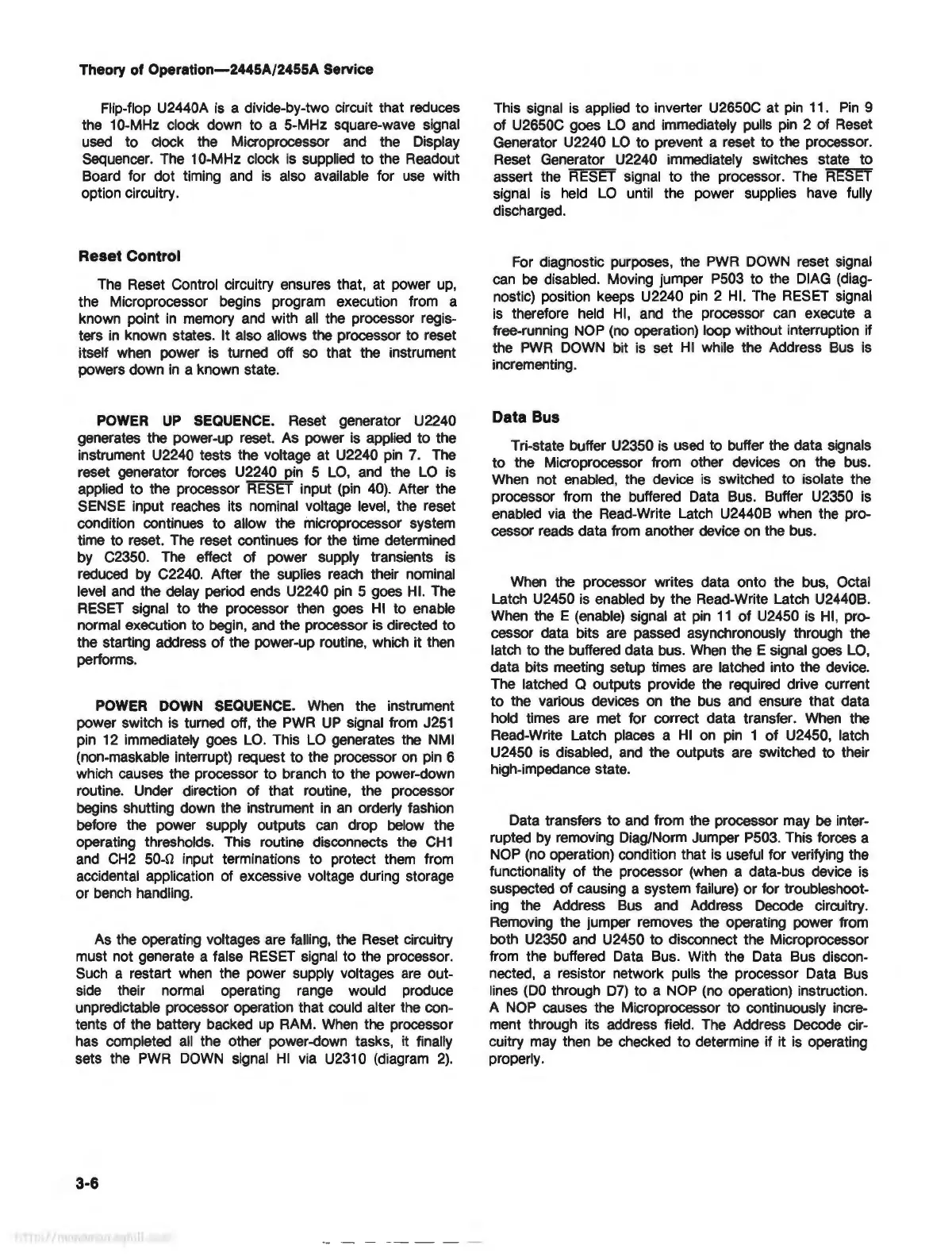

Theory of Operation-2445A/2455A Service
Flip-flop U2440A is a divide-by-two circuit that reduces
the 10-MHz clock down to a 5-MHz square-wave signal
used to clock the Microprocessor
and the Display
Sequencer. The 10-MHz clock
is supplied to the Readout
Board for dot timing
and is also available for use with
option circuitry.
Reset Control
The Reset Control circuitry ensures that, at power up,
the Microprocessor begins program execution from a
known point
in memory and with all the processor regis-
ters
in known states. It also allows the processor to reset
itself when power is turned off so that the instrument
powers down
in a known state.
POWER UP SEQUENCE. Reset generator U2240
generates the power -up reset. As power
is applied to the
instrument U2240 tests the voltage at U2240
pin 7. The
reset generator forces U2240 pin 5 LO, and the LO is
applied to the processor
RESET input (pin 40). After the
SENSE input reaches its nominal voltage level, the reset
condition continues to allow the microprocessor system
time to reset.
The reset continues for the time determined
by C2350. The effect of power supply transients is
reduced by C2240. After the suplies reach their nominal
level and the delay period ends U2240 pin 5 goes HI. The
RESET signal to the processor then goes HI to enable
normal execution to
begin, and the processor is directed to
the starting address of the power-up routine, which it then
performs.
POWER DOWN SEQUENCE. When the instrument
power switch is turned off, the
PWR UP signal from J251
pin 12 immediately goes LO. This LO generates the NMI
(non-maskable interrupt) request to the processor on pin 6
which causes the processor to branch to the power-down
routine. Under direction of that routine, the processor
begins shutting down the instrument
in an orderly fashion
before the power supply outputs
can drop below the
operating thresholds. This routine disconnects the
CH1
and CH2 þÿ50©input terminations to protect them from
accidental application of excessive voltage during storage
or
bench handling.
As the operating voltages are falling, the Reset circuitry
must not generate a false
RESET signal to the processor.
Such a restart when the power supply voltages are out-
side their normal operating range would produce
unpredictable processor operation that could alter the con-
tents of the battery backed
up RAM . When the processor
has completed
all the other power-down tasks, it finally
sets the
PWR DOWN signal HI via U2310 (diagram 2).
3-6
This signal is applied to inverter U2650C at pin 11 . Pin 9
of U2650C goes
LO and immediately pulls pin 2 of Reset
Generator U2240
LO to prevent a reset to the processor.
Reset Generator U2240 immediately switches state to
assert the RESET signal to the processor. The
RESET
signal is held LO until the power supplies have fully
discharged.
For diagnostic purposes, the
PWR DOWN reset signal
can be disabled. Moving jumper P503 to the DIAG (diag-
nostic) position keeps U2240
pin 2 HI. The RESET signal
is therefore held HI, and the processor can execute a
free-running
NOP (no operation) loop without interruption if
the PWR DOWN bit is set HI while the Address Bus is
incrementing.
Data Bus
Tri-state buffer U2350 is used to buffer the data signals
to the Microprocessor from other devices
on the bus.
When not enabled, the device is switched to isolate the
processor from the buffered Data Bus. Buffer U2350 is
enabled
via the Read-Write Latch U2440B when the pro-
cessor reads data from another device
on the bus.
When the processor writes data onto the bus, Octal
Latch U2450
is enabled by the Read-Write Latch U2440B.
When the E (enable) signal at pin 11 of U2450 is HI, pro-
cessor data bits are passed asynchronously through the
latch to the buffered data bus.
When the E signal goes LO ,
data bits meeting setup times
are latched into the device.
The latched
Q outputs provide the required drive current
to the various devices
on the bus and ensure that data
hold times are met for correct data transfer.
When the
Read-Write Latch places a
HI on pin 1 of U2450, latch
U2450 is disabled,
and the outputs are switched to their
high-impedance state.
Data transfers to and from the processor may be inter-
rupted
by removing Diag/Norm Jumper P503 . This forces a
NOP (no operation) condition that is useful for verifying the
functionality of the processor (when a data-bus device is
suspected of causing a system failure) or for troubleshoot-
ing the Address Bus and Address Decode circuitry.
Removing the jumper removes the operating power from
both U2350
and U2450 to disconnect the Microprocessor
from the buffered Data Bus. With the Data Bus discon-
nected, a resistor network pulls the processor Data Bus
lines
(DO through D7) to a NOP (no operation) instruction.
A
NOP causes the Microprocessor to continuously incre-
ment through its address field. The Address Decode cir-
cuitry
may then be checked to determine if it is operating
properly.
