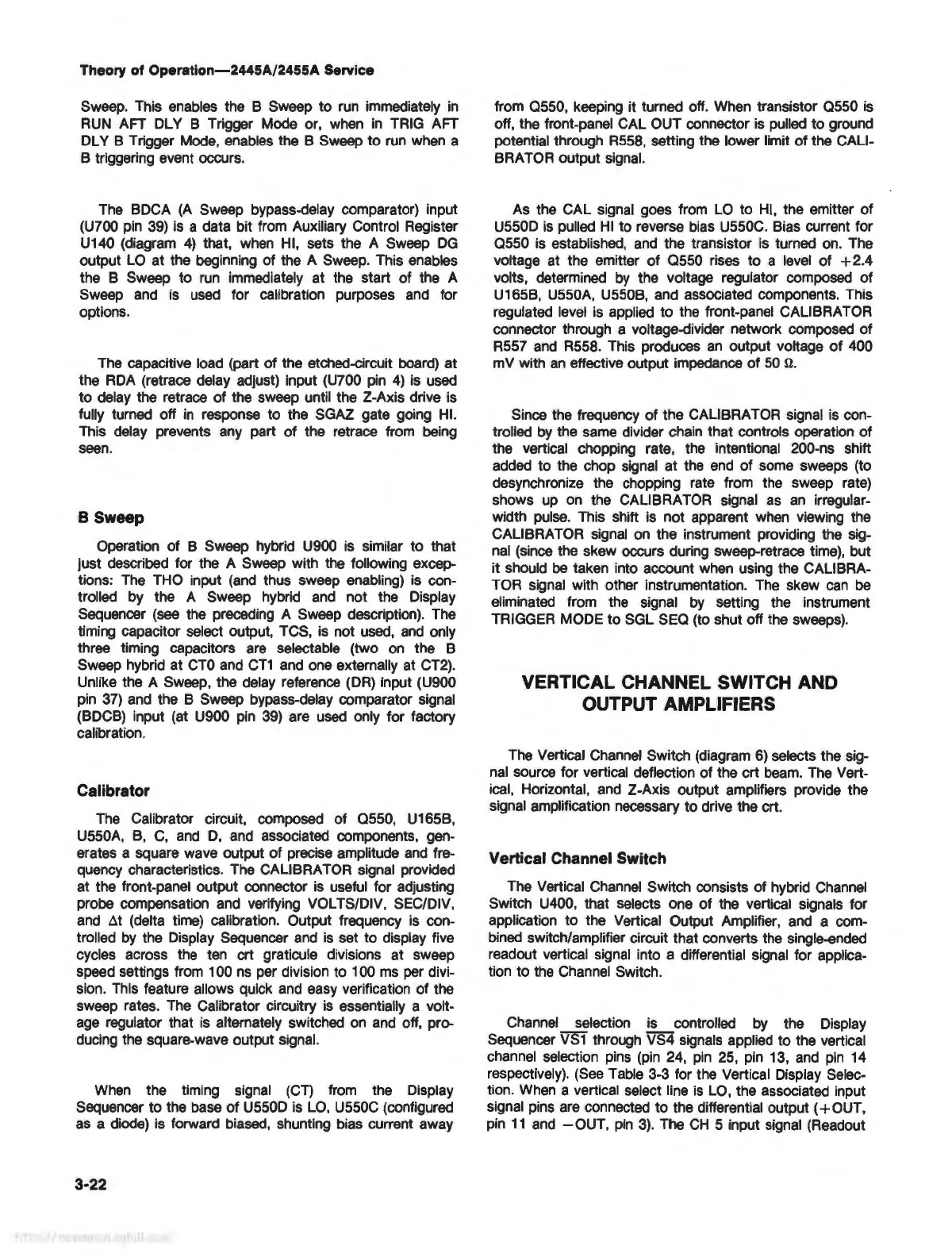

Sweep. This enables the B Sweep to
run
immediately
in
RUN
AFT
DL
Y B Trigger Mode or,
when
in
TRIG AFT
DL Y B Trigger Mode, enables the B Sweep to
run
when a
B triggering event occurs.
The
BDCA
(A
Sweep bypass-delay comparator) input
(U700
pin
39)
is a data bit from Auxiliary Control Register
U140 (diagram
4)
that,
when
HI,
sets the A Sweep
DG
output
LO
at the beginning of the A Sweep. This enables
the B Sweep to
run
immediately at the start of the A
Sweep
and
is
used
for calibration purposes
and
for
options.
The
capacitive load (part of the etched-circuit board) at
the
RDA
(retrace delay adjust) input (U700
pin
4)
is used
to delay the retrace of the sweep until the Z-Axis drive
is
fully turned off
in
response to the SGAZ gate going
HI.
This delay prevents
any
part of the retrace from being
seen.
B Sweep
Operation of B Sweep hybrid U900
is
similar to that
just described for the A Sweep with the following excep-
tions:
The
THO input
(and
thus sweep enabling) is con-
trolled
by
the A Sweep hybrid
and
not the Display
Sequencer
(see
the preceding A Sweep description). The
timing capacitor select output, TCS, is not
used,
and
only
three timing capacitors
are
selectable (two
on
the B
Sweep hybrid at CT0
and
CT1
and
one externally at
CT2).
Unlike the A Sweep, the delay reference
(DR)
input (U900
pin
37)
and
the B Sweep bypass-delay comparator signal
(BDCB) input (at U900
pin
39)
are
used
only for factory
calibration.
Calibrator
The
Calibrator circuit, composed of 0550, U1658,
U550A,
B,
C,
and
D,
and
associated components, gen-
erates a square wave output of precise amplitude
and
fre-
quency characteristics. The CALIBRATOR signal provided
at the front-panel output connector
is
useful for adjusting
probe compensation
and
verifying VOL TS/DIV, SEC/DIV,
and
þÿ”t
(delta time) calibration. Output frequency
is
con-
trolled
by
the Display Sequencer
and
is
set to display five
cycles across the ten crt graticule divisions at sweep
speed settings from 100
ns
per division to 100
ms
per divi-
sion. This feature allows quick
and
easy verification of the
sweep rates.
The
Calibrator circuitry
is
essentially a volt-
age
regulator that
is
alternately switched
on
and
off, pro-
ducing the square-wave output signal.
When
the timing signal
(CT)
from
the Display
Sequencer to the base of U550D
is
LO,
U550C (configured
as
a diode)
is
forward biased, shunting bias current away
3-22
from 0550, keeping it turned off.
When
transistor
0550
is
off, the front-panel CAL OUT connector
is
pulled to ground
potential through
R558,
setting the lower limit of the CALI-
BRATOR output signal.
As the CAL signal goes from
LO
to
HI,
the emitter of
U550D
is
pulled
HI
to reverse bias U550C. Bias current for
0550
is established,
and
the transistor
is
turned
on.
The
voltage at the emitter of
0550
rises to a
level
of + 2.4
volts, determined
by
the voltage regulator composed of
U165B, U550A, U550B, and associated components. This
regulated
level
is applied to the front-panel CALIBRATOR
connector through a voltage-divider network composed of
R557
and
R558. This produces
an
output voltage
of
400
mV
with
an
effective output impedance of
50
þÿ©.
Since the frequency of the CALIBRATOR signal
is
con-
trolled
by
the same divider chain that controls operation of
the vertical chopping rate, the intentional 200-ns shift
added to the chop signal at the
end
of some sweeps (to
desynchronize the chopping rate from the sweep rate)
shows
up
on
the CALIBRATOR signal
as
an
irregular-
width
pulse.
This shift is not apparent
when
viewing the
CALIBRATOR signal
on
the instrument providing the sig-
nal
(since the skew occurs during sweep-retrace time), but
it should
be
taken into account when using the CALIBRA-
TOR signal with other instrumentation.
The
skew
can
be
eliminated from the signal
by
setting the instrument
TRIGGER
MODE to SGL
SEQ
(to shut off the sweeps).
VERTICAL CHANNEL SWITCH AND
OUTPUT AMPLIFIERS
The
Vertical Channel Switch (diagram
6)
selects the sig-
nal
source for vertical deflection of the crt
beam
.
The
Vert-
ical, Horizontal,
and
Z-Axis
output amplifiers provide the
signal amplification necessary to drive the crt.
Vertical Channel Switch
The Vertical
Channel
Switch consists of hybrid Channel
Switch
U400,
that selects one
of
the vertical signals for
application to the Vertical Output Amplifier,
and
a com-
bined
switch/amplifier circuit that converts the single-ended
readout vertical signal into a differential signal for applica-
tion to the Channel Switch.
Channel
selection is controlled
by
the Display
Sequencer
VS1
through VS4 signals applied to the vertical
channel selection pins
(pin
24,
pin
25,
pin 13,
and
pin
14
respectively).
(See
Table 3-3 for the Vertical Display Selec-
tion.
When
a vertical select line
is
LO,
the associated input
signal pins
are
connected to the differential output
(+OUT
,
pin
11
and
-OUT,
pin
3).
The
CH
5 input signal (Readout
