Tektronix CSA7404B Service Manual

Operating Information
CSA7404B, TDS7704B, TDS7404B, TDS7254B & TDS7154B Service Manual
2-3
Mic......... .... ....
XVGA Out (PC only,
for dual display
operation) .........
Printer.............
RS-232..........
Network................
Keyboard ................
Mouse.................
USB..................
Compactdiskdrive.......
GPIB........
Instrument monitor
(large-screen instrument
display)...........
Description Icon/Label Locations
Audio line out.............
Removable hard drive or
floppy ...................
Audio line in .............

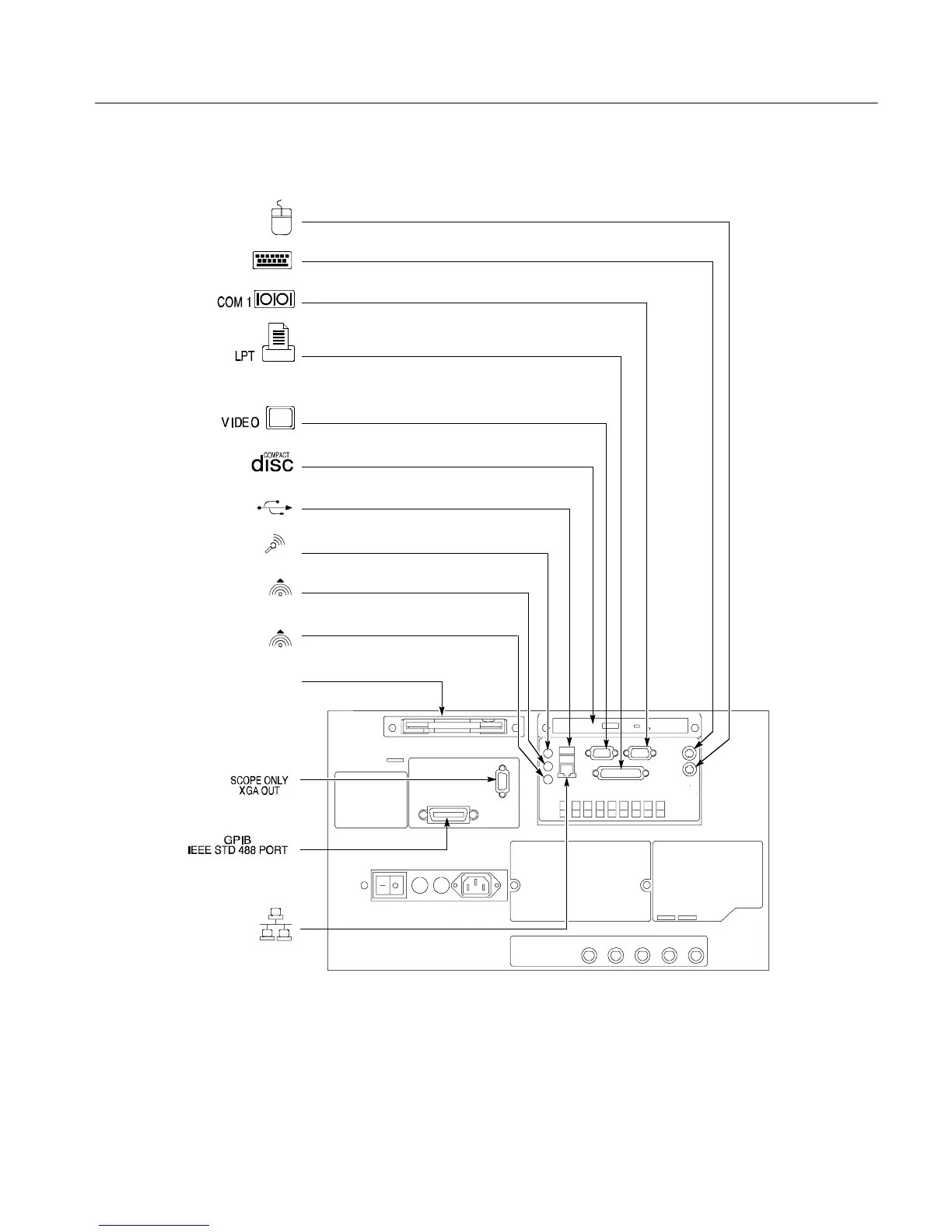

Figure 2- 1: Locations of peripheral connect ors on rear panel
