Operating Information
CSA7404B, TDS7704B, TDS7404B, TDS7254B & TDS7154B Service Manual
2-5
On/Standby
switch

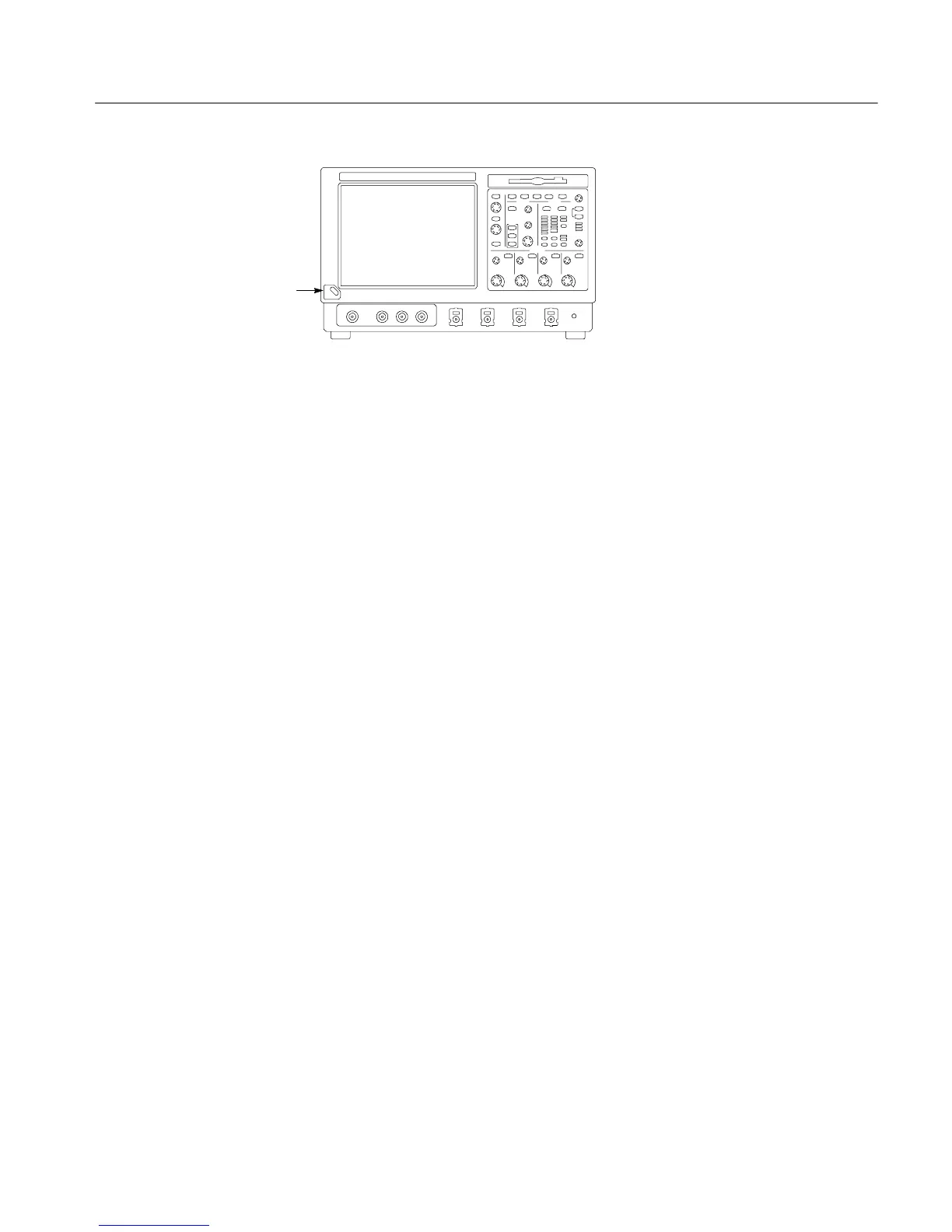

Figure 2- 3: On/Standby switch location
The instrument has a built-in On/Standby function that removes power from
most circuitry in the instrument when you press the On/Standby switch.
To completely remove power to the instrument, perform the shutdown just
described, and then set the power switch on the rear panel to off.
This section describes how to install the system software found on the product-
software CD that accompanies this product. The instrument ships with the
product software installed, so only perform these procedures if reinstallation
becomes necessary.
Software Release Notes. Read the software release notes README.TXT ASCII
file on the product-software CD before performing installation procedures. This
file contains additional installation and operation information that supercedes
other product documentation.
To view the README.TXT file, open the Notepad Windows accessory and open
the file on the product-software CD. After installation, you can also read the
copy from a directory on the product:
C:\Program Files\TekScope\ReadMe.txt
Operating System Restoration. Use the procedure that accompanies your
Operating System Restore CD should reinstalling system software become
necessary.
The compact disc contains the files necessary to restore the Windows operating
system and necessary drivers for the instrument.
The Windows operating system and drivers are factory installed on the instru-
ment hard disk. The compact disc serves as a backup in the event that you have
to rebuild the hard drive. You must restore the Windows operating system before
you can install the oscilloscope firmware and other product software.
Powering Off the
Instrument
Software Installation
