Get Acquainted w
ith the Instrument

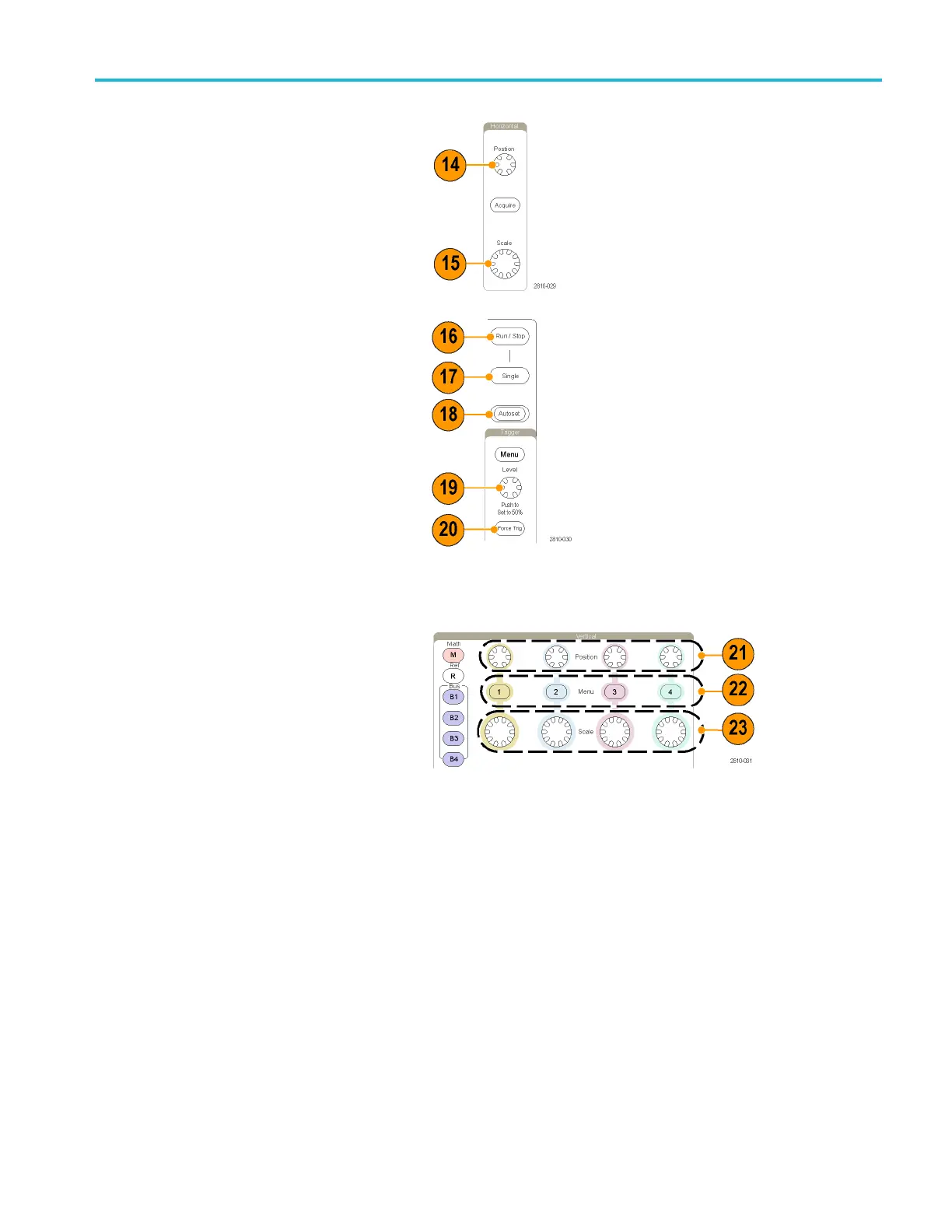

14. Horizontal Pos
ition. Turn to adjust
the trigger point location relative to the
acquired waveforms. Push Fin e to ma ke
smaller adjus
tments.
15. Horizontal S
cale. Turn to adjust the
horizontal scale (time/division).
16. Run/Stop. Push to start or stop
acquisitions.
17. Single. Push to make a single
acquisition.
18. Autoset. Push to automatically set the
vertical, horizontal, and trigger controls
for a usable, stable display.
19. Trigger Level. Turn to adjust the trigger
level. P ush to set the trigger level to the
midpoint of the waveform.
20. Force Trig. Push to force an immediate
trigger event.
21. Vertical P osition . Turn to adjust the
vertical position of the corresponding
waveform. Push Fine to make smaller
adjustments.
22. 1, 2, 3, 4. Push to display or remove
the corresponding waveform from the
display and access the vertical menu.
23. Vertical Scale. Turn to adjust the
vertical scale factor of the corresponding
waveform (volts/division).
MSO4000B and DP O4000B Series Oscilloscopes User Manual 37
