Section D – Tester Installation
CD14 Tester & CD AutoPlus Autosampler User Guide—75-108-800 Rev. B—31 May 2021 28 of 130
EAR99 technology subject to restrictions on cover page.
8. The people on the rear side should back away from
the unit as soon as they can while the two on the
front continue to position the unit with all 5 feet in
contact with the bench top.
9. Remove the lift handles and oval inserts (5/32” Allen
hex wrench) from the frame.

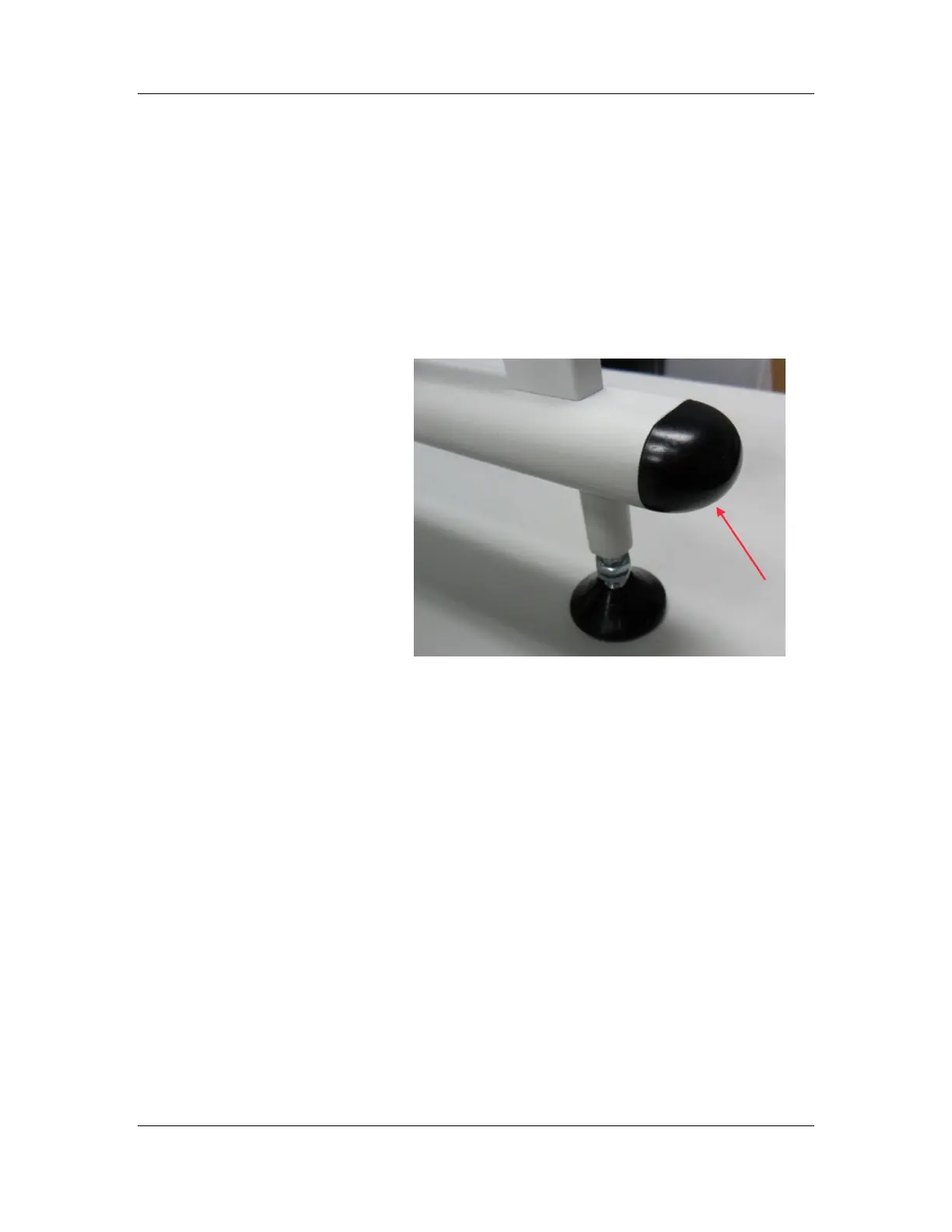

10. Install the two front frame end caps by lightly tapping
them in place with a hammer.
Level the Unit
1. Position the unit on the table to allow for other
equipment that may need to be installed next to it
(e.g., autosamplers).
2. The height of the unit has been factory set to within
3.7 – 3.9 in. (9.4 – 9.9 cm) from the bench top to the
underside of the bath support plate.
3. Level the unit via the two front feet, and the single
rear foot under the mast. While doing so, maintain
the height of the unit within the factory height range.
