Section F – Operation
CD14 Tester & CD AutoPlus Autosampler User Guide—75-108-800 Rev. B—31 May 2021 51 of 130
EAR99 technology subject to restrictions on cover page.
When the tester is in operation, ensure that the key of the
shaft clamp and the key on the spindle itself are at the same
level so that they will lock together.

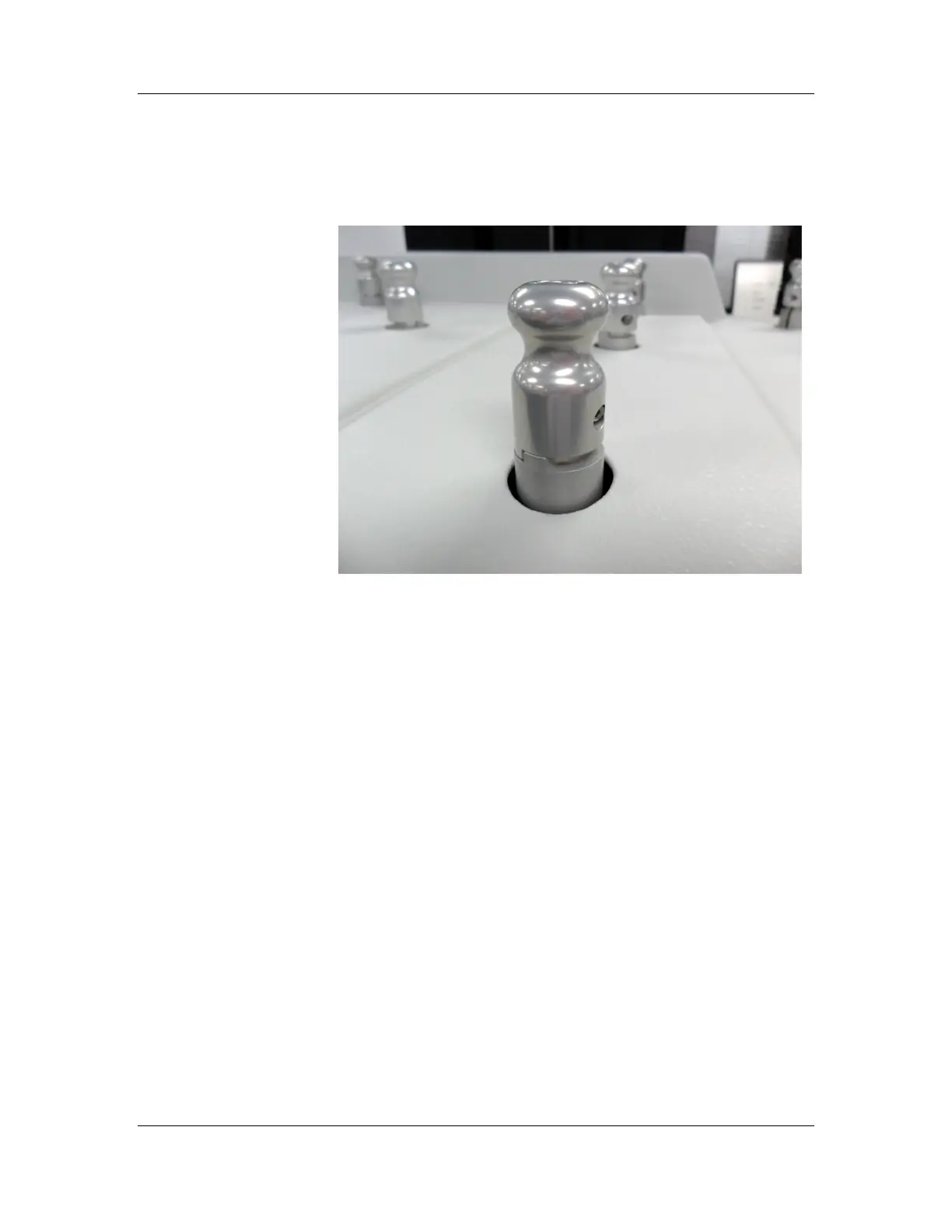

Figure F-1: Shaft Clamp and Key in Position
Vessel Installation
1. Lower the vessel into place in the vessel bushing.
2. Rotate until the keys on the vessel slide into the
groves on the vessel ring and then rotate the vessel
clockwise until it stops. Note the witness marks. The
vessels will only go in one way.
