1.4 System Capability
1.4.1 Description
 Lines: up to 3
 Cordless Handsets: up to seven cordless handsets (provided separately)
LWS-BS Station 1 Station 2 Station 3 Station 4 Station 5 Station 6 Station 7

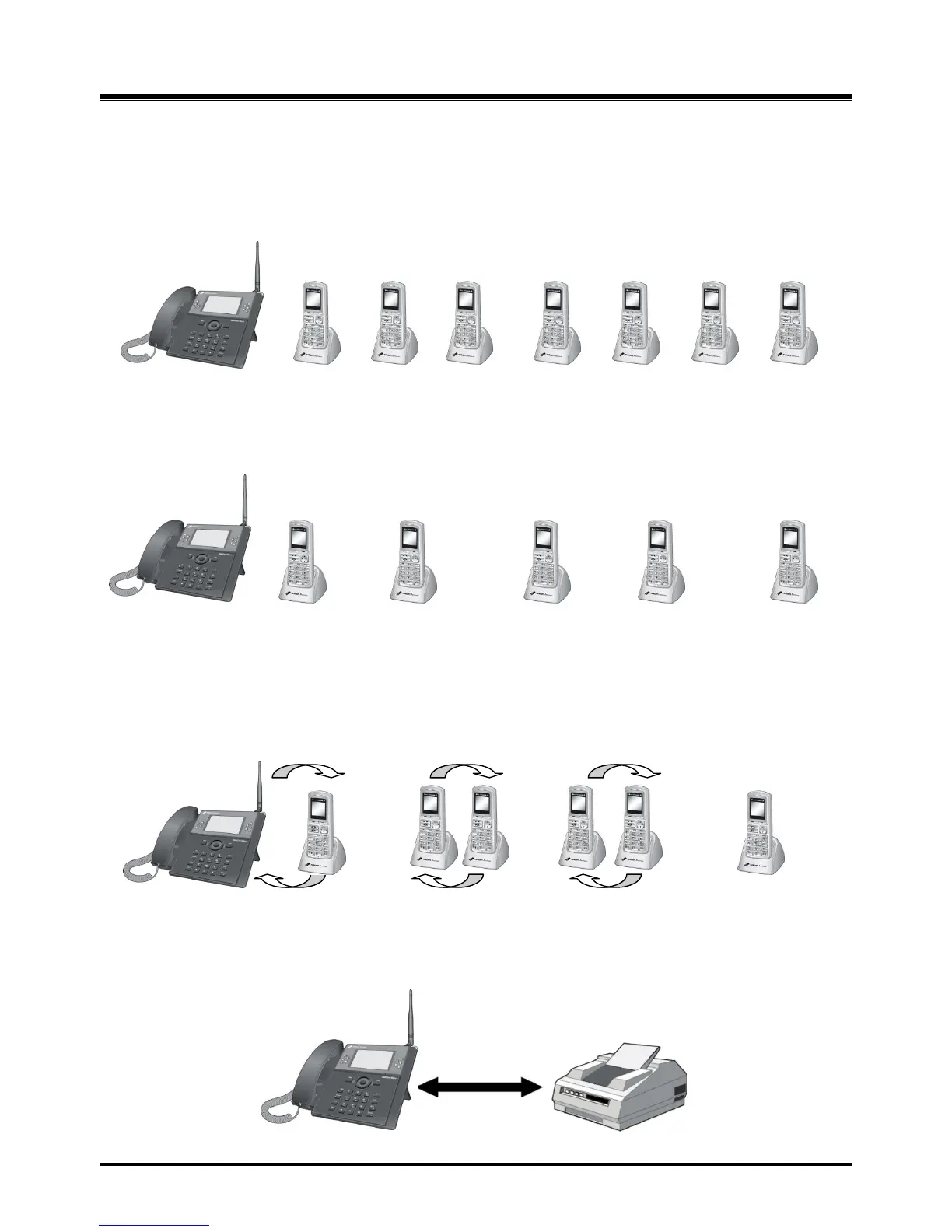

Figure 1.4-1 LWS-BS and GDC-400H/450H
External calls (Line calls): up to 3 supported.
Figure 1.4-2 Three (3) External Calls Supported
Internal Calls: Three (3) internal calls can be conducted on five (5) cordless handsets and the LWS-BS
while the six (6) cordless handset
simultaneously makes an external call.
Figure 1.4-3 – Internal Calls Supported
One (1) FAX call or SLT can be conducted on the SLT port of the LWS-BS.
Figure 1.4-4 FAX or SLT call via SLT port of the LWS-BS
External call
On line1
External call
On line2
External call
On line3
External call
On line1
External call
On line2
External call
On line3
Or
External call
On line X
