OptiCon Micro
Installation and Operation Manual
3
LWS-WK (Wireless terminal) Power Adapter Quick User Guide
AC power cord

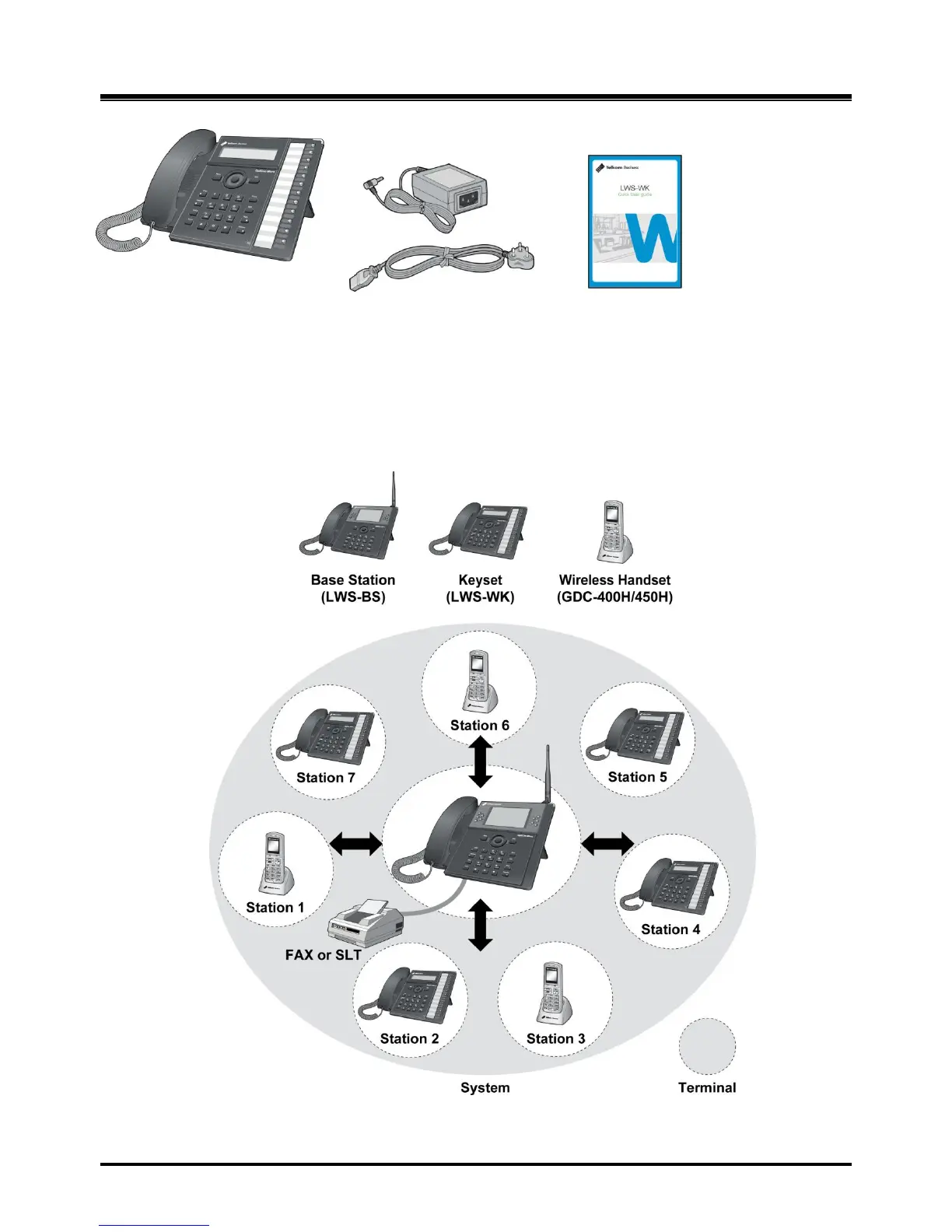

Figure 1.2-2 LWS-WK Package Contents
1.3 Configuration
The following image depicts a sample configuration using the LWS-BS system and the wireless
telephone, i.e.: LWS-WK and GDC-400H/450H.
Figure 1.3-1 Sample Configuration
