Tenda AC1200 User Manual

85

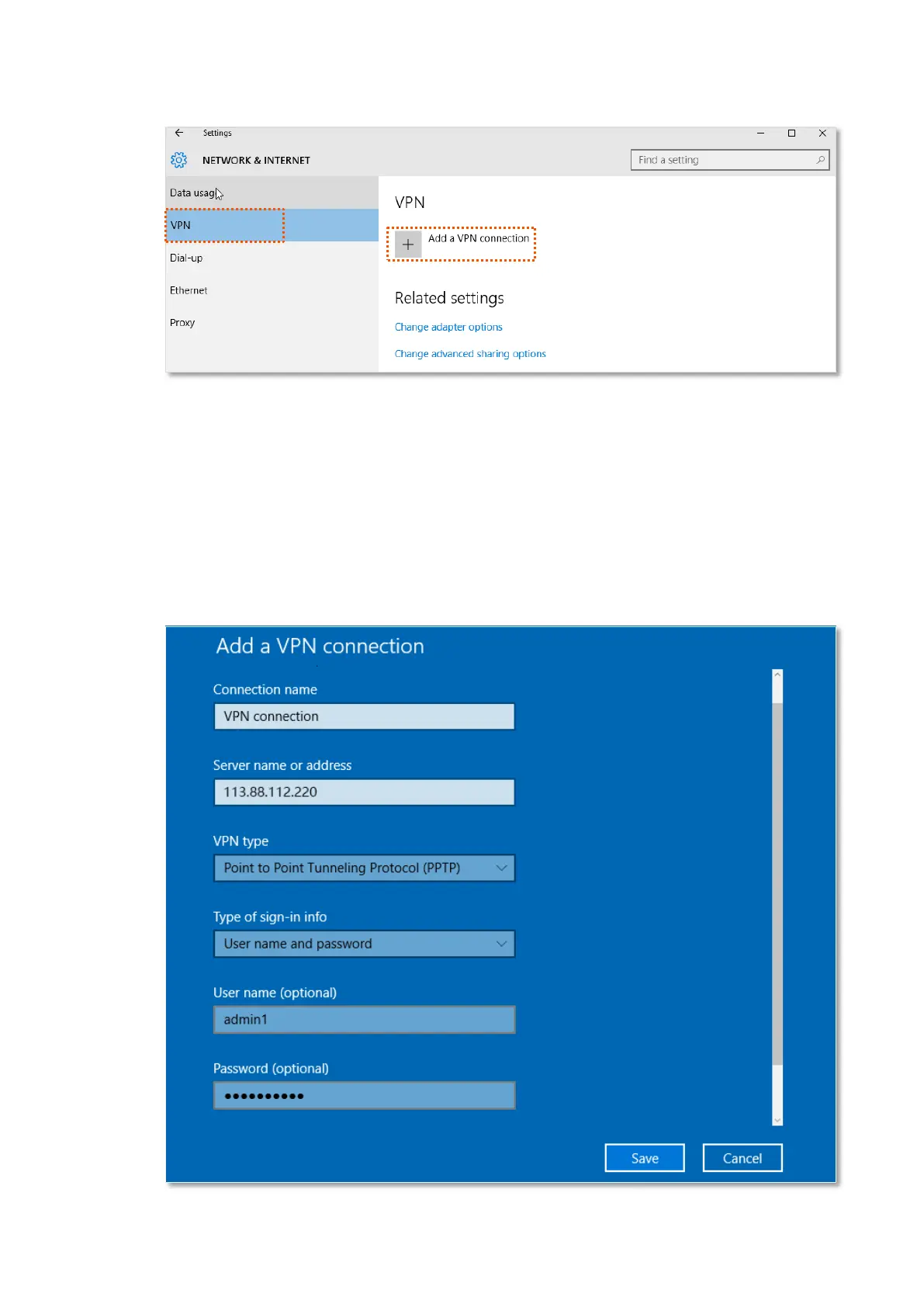

Step 2 Choose VPN on the left side, and click Add a VPN connection.
Step 3 Configure the VPN parameters.
1. Enter a connection name, such as VPN connection.
2. Enter the server address, which is 113.88.112.220 in this example.
3. Select a VPN type, which is Point to Point Tunneling Protocol (PPTP) in this example.
4. Select a type of sign-in info, which is User name and password in this example.
5. Enter the user name and password, which are both admin1 in this example.
6. Click Save.

Tenda AC1200 Specifications

General

Data Transfer Rate	1200Mbps
Wireless Standard	IEEE 802.11ac/a/n 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency Bands	2.4GHz, 5GHz
Wireless Speed	300Mbps (2.4GHz) + 867Mbps (5GHz)
Antenna	4 x 5dBi external antennas
Security	WPA/WPA2-PSK
Button	WPS button, Reset button
DHCP Server	Support
