If this p
age doesn’t appear
, please re
fer to
Q1
in
F
AQ
.

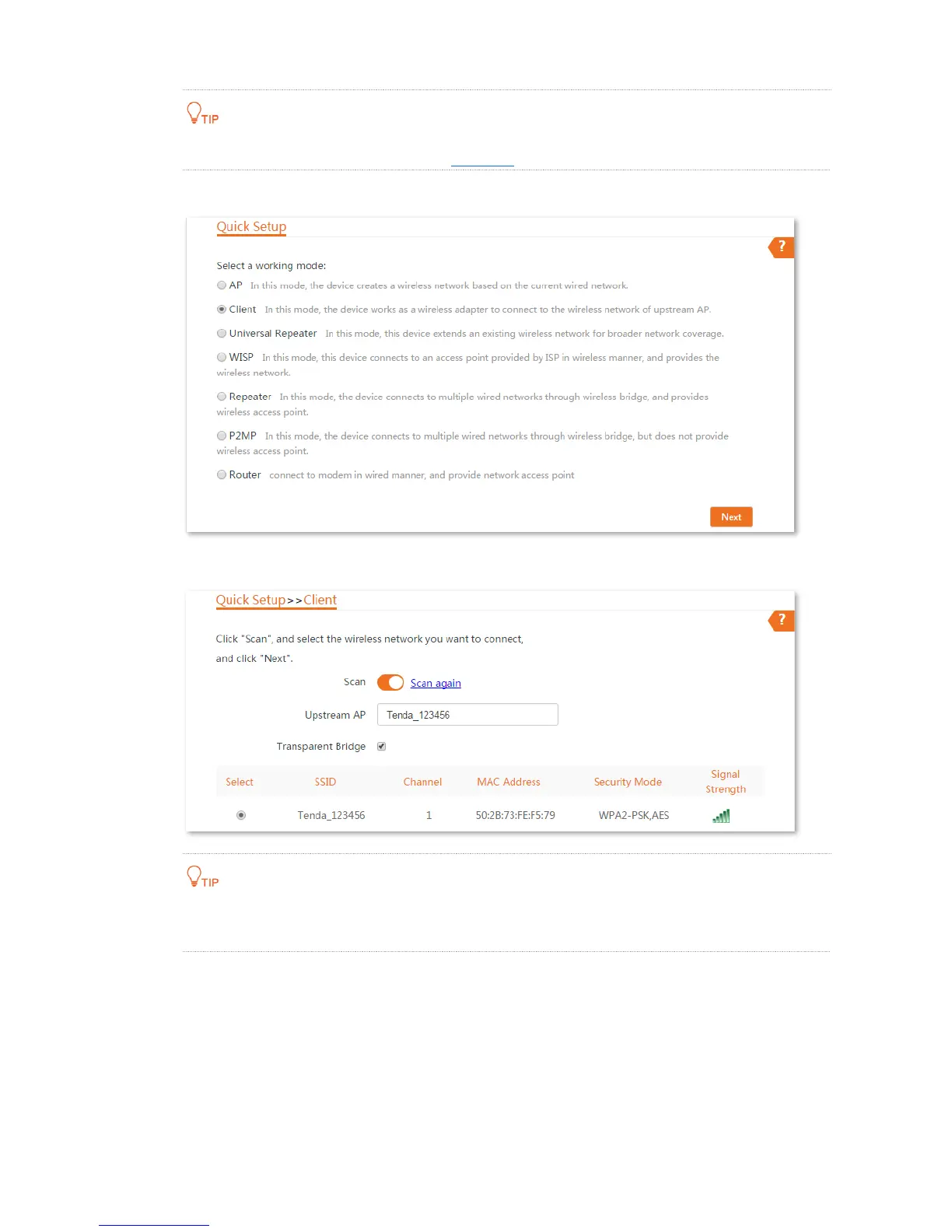

3.
Select
Client
, and click
Next
.
4.
Select the SSID
of
CPE1
you set, which is
Tenda_123456
in this example, and click
Next
.
If there is no wir
eless network is scanned, choose
Wireless
>
Basic
, and ensur
e t
hat the wir
eless
function is enabled. Then try again.
5.
Enter the WiFi password you set
for
CPE1
in the
Key
text box, and click
Next
.
23
25
