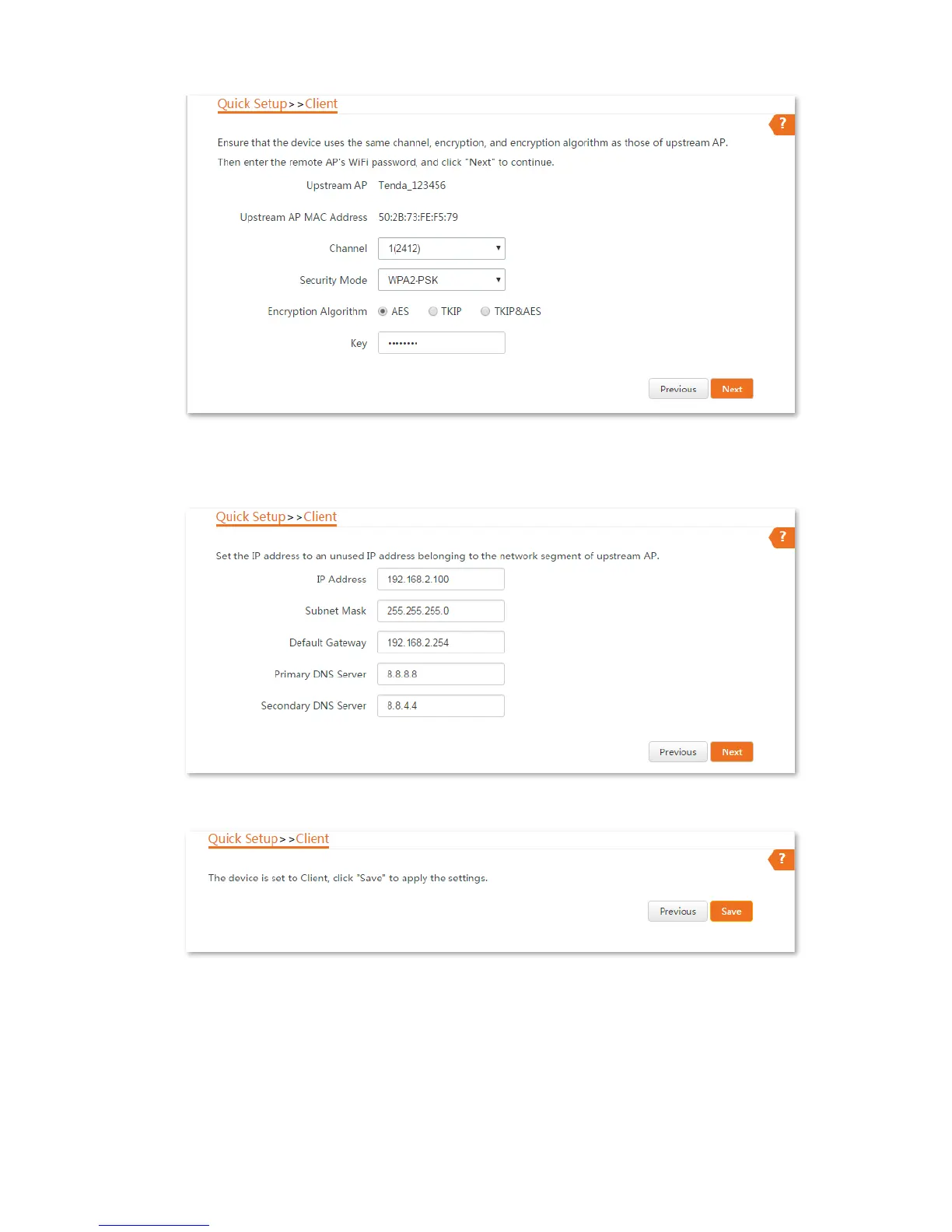

6.
Set the
IP address
to an unused IP address belonging to the same network segment as that of
CPE1
.
For example, if the IP address of CPE1 is 192.168.2.1, you can set this CPE
’s IP address to 192.168.2.
X
(
X
ranges from 2 to 254). Then click
Next
.
7.
Click
Save
, and wait until the CPE reboots to activate the settings.
----End
When
LED1,
LED2,
and
LED3
of
CPE1
are
solid
on,
and
LED1,
LED2,
and
LED3
of
CPE2
are
blinking,
the
bridging
succeeds.
