45
7.

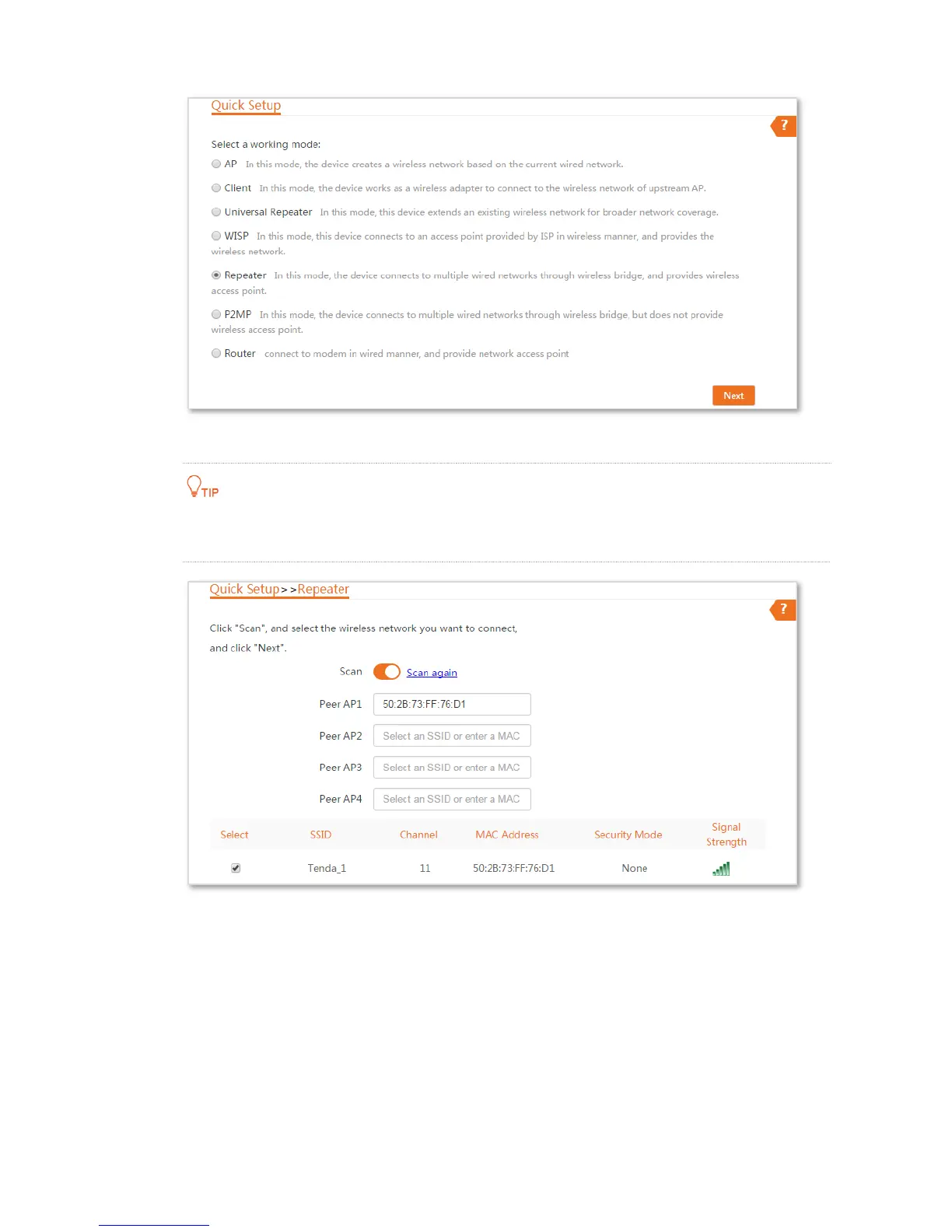

Select the SSID of the main CPE from the list, which is
Tenda_1
in this example, and click
Next
.
If you cannot scan the SSID of the main CPE fr
om the list, choose
Wireless
>
Basic
and enable the
wireless function. Then try ag
ain.
8.
Click
Next
directly on the following page.
51
53
