46

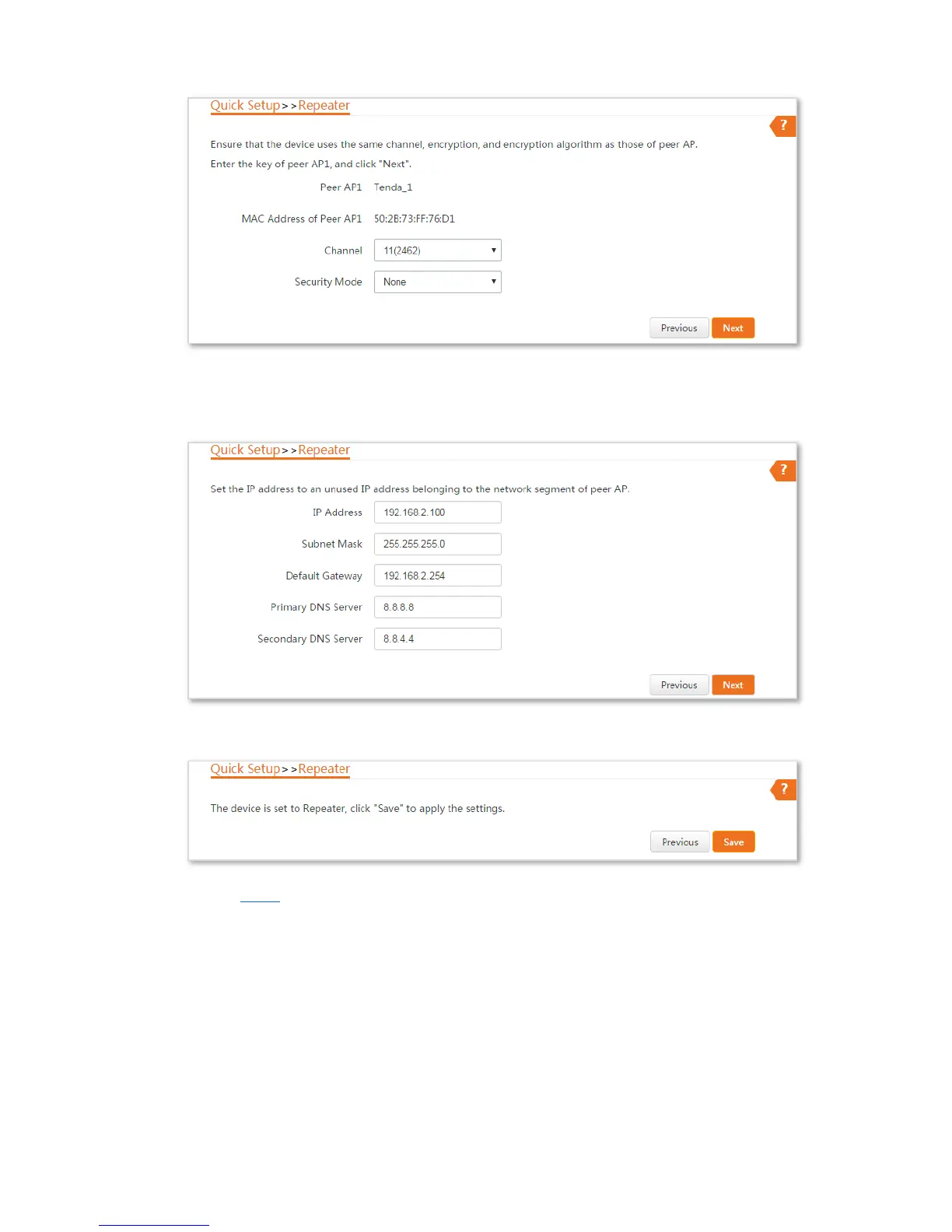

9. Set the IP address to an unused IP address belonging to the same network segment as that of the main
CPE. For example, if the IP address of the main CPE is 192.168.2.1, you can set this device’s IP
address to 192.168.2.X (X ranges from 2 to 254). Then click Next.
10. Click Save, and wait until the device reboots to activate the settings.
Step 2 Perform Step 1 above to set CPE2, CPE3 and CPE4 to Repeater mode respectively.
Step 3 Set the main CPE to Repeater mode to bridge CPE1, CPE2, CPE3 and CPE4.
1. Log in to the web UI of the main CPE, and choose Quick Setup to enter the configuration page.
2. Select Repeater mode, and click Next.
3. Select SSIDs of CPE1, CPE2, CPE3 and CPE4 respectively, and click Next.
4. Click Next at the bottom of the following page.
