Hours Min.
Procedure:
Table: 004
GTH-4017EX
GTH-4514EX
GTH-4013EX
November 2008 Section 7 - Repair Procedures
TABLE 004
Document 57.0009.0427
15
GTH-4017EX GTH-4514EX GTH-4013 EX

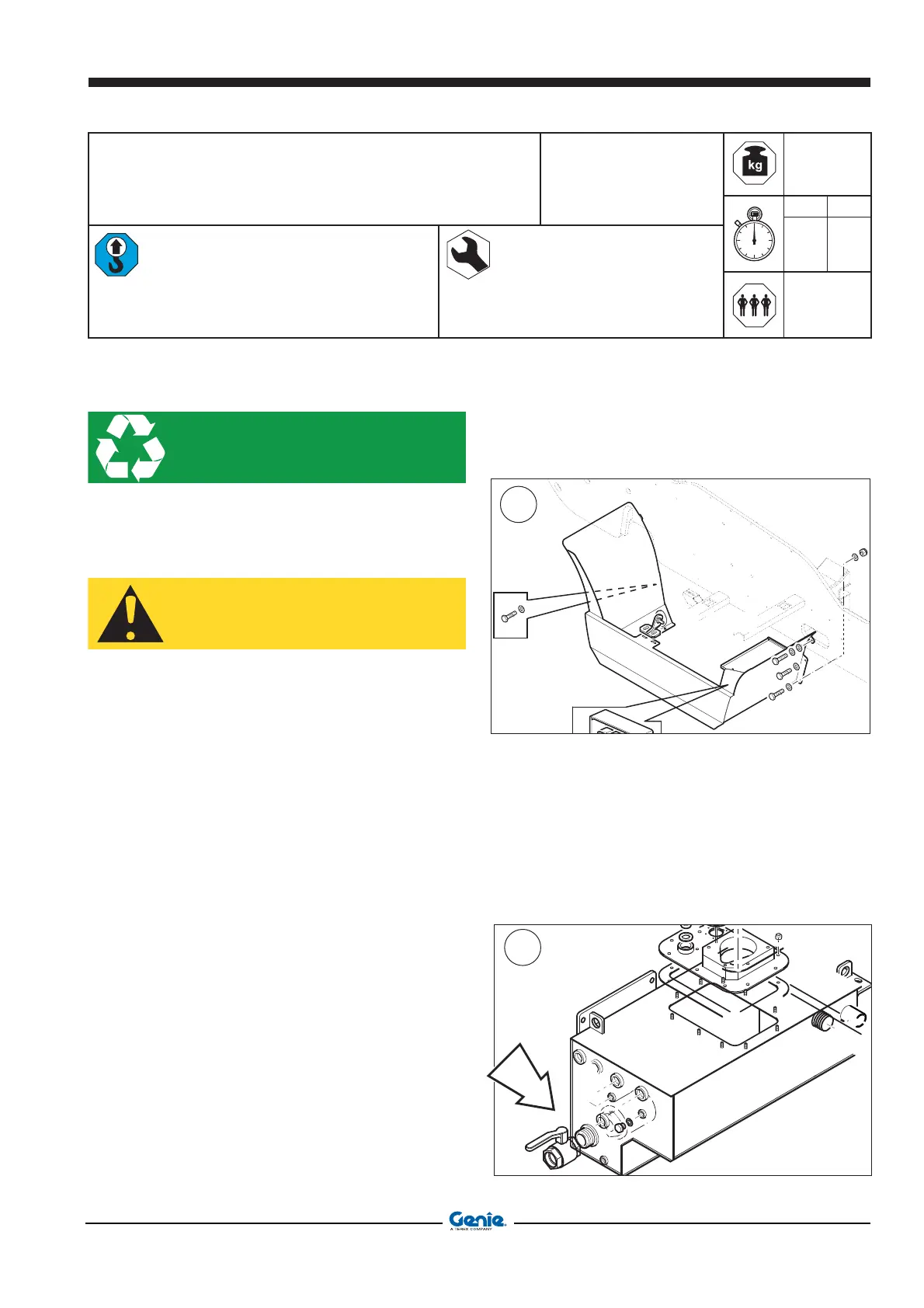

Hydraulic pumps disassembly
Bridge crane or swing hoist, payload
500 kg
Standard tools
40
2 30
1
Operation:
PROTECT THE
ENVIRONMENT
Before disconnecting the hydraulic piping, place
containers of suitable size underneath to prevent
oil spillage.
CAUTION
Carefully clean the area around the piping to be
disconnected, plug all disconnected parts with
caps, rags or adhesive tape to prevent dust or
impurities from entering the circuit. They can
cause serious damage.
1 Open the carter engine and disconnect the
battery using a 13mm wrench.
2 Using two 17mm wrenches, remove the six
screws that fix the engine lower cover.
3 Remove the lower cover using a stacker.
4 Close the oil tank cock.
2
4
To Next Page
