Terex Genie GTH-4017 EX - Check the Oil Level in the Front and Rear Differential Gears; Check the Oil Level in the Four Wheel Reduction Gears

Document 57.0009.0427
GTH-4017EX GTH-4514EX GTH-4013EX
34
Section 4 - Maintenance Procedures November 2008
TABLE C
A

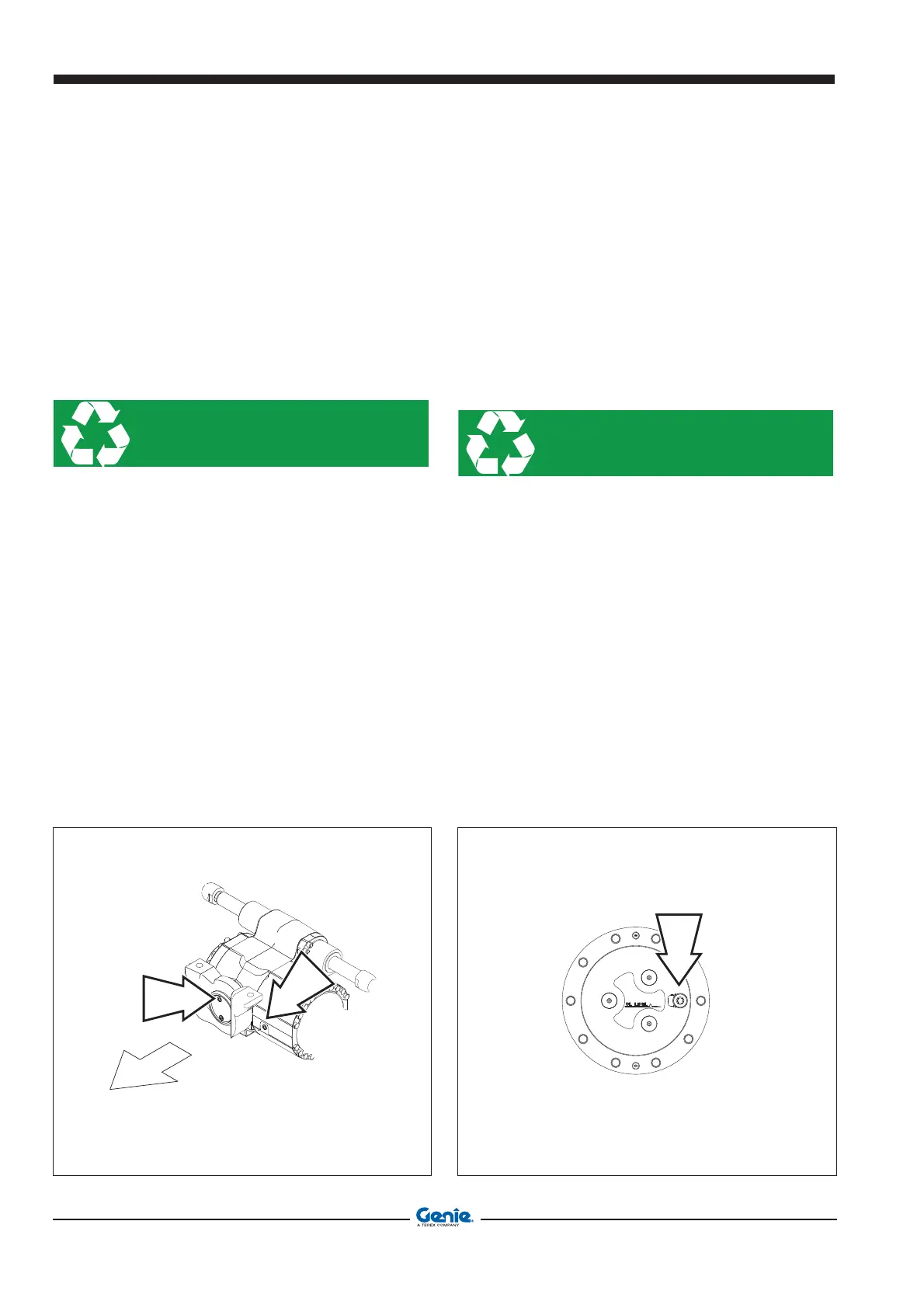

C-3 CHECK THE OIL LEVEL IN THE FRONT AND
REAR DIFFERENTIAL GEARS
To check the oil level in the front and rear differential
gears:
- Stop the machine on a level ground and ensure the
parking brake is engaged.
- Remove the plug A and check the oil is level with
hole.
- If necessary, top-up the oil through the hole B until
oil comes out from the hole A.
- Refit the plugs A e B.
PROTECT THE
ENVIRONMENT
Place a container of suitable size under the plug for
oil leaks.
C-4 CHECK THE OIL LEVEL IN THE FOUR WHEEL
REDUCTION GEARS
To check the oil level in the four wheel reduction
gears:
- Stop the machine on a level ground and ensure the
parking brake is engaged and plug A finds on the
horizontal axis.
- Clean the plug all around, then remove it and check
if oil is level with the hole.
- If necessary, add new oil through hole A until it is
level.
- Refit the plug.
PROTECT THE
ENVIRONMENT
Place a container of suitable size under the plug for
oil leaks.
B
A
