Terex Genie GTH-4017 EX - Check the Engine Oil Level

Section 4 - Maintenance Procedures November 2008
TABLE A
Document 57.0009.0427
GTH-4017EX GTH-4514EX GTH-4013EX
8

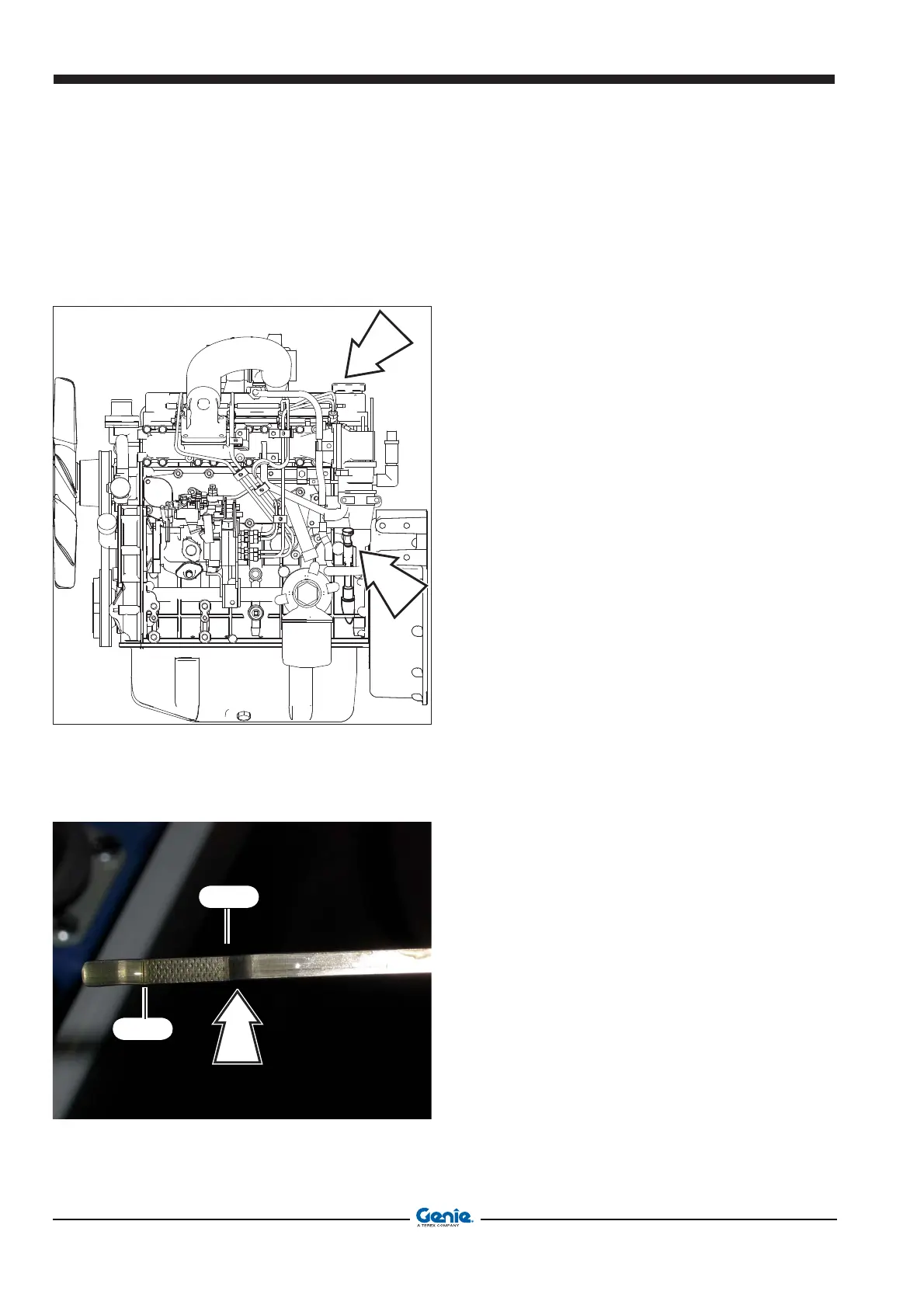

A-7 CHECK THE ENGINE OIL LEVEL
To check the engine oil leve, proceed as follows:
- Stop the machine on a level ground, stop the engine
and ensure the parking brake is engaged.
- Pull out the rod of the level A and ensure the oil
comes to the maximum height B.
MAX
MAX
MIN
- Pull out the rod A again and ensure the oil comes to
the maximum level B.
- Refit the rod A and the plug C.
- If the oil is below this level, remove the pluh C and
add new oil in the engine using a gradueted cup.
B
A
C
