Terex Genie GTH-4017 EX - Technical Specifications - Main Dimensions; Machine Dimensions Table

Document 57.0009.0427
1
GTH-4017EX GTH-4514EX GTH-4013EX
November 2008 Section 2 - Technical Specification

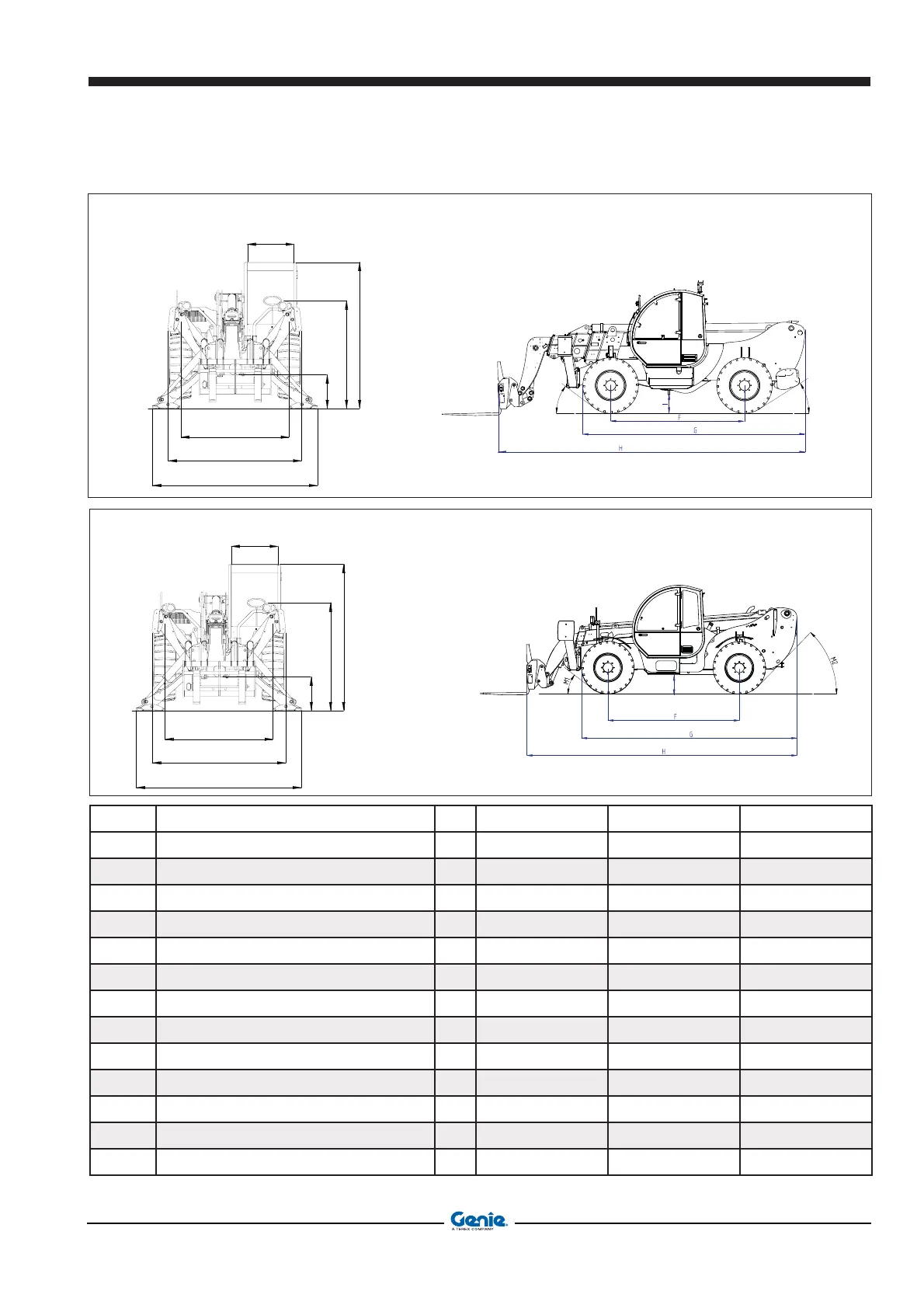

2.1 MAIN DIMENSIONS
GTH-4017 EX GTH-4514 EX GTH-4013 EX
A Height mm 2610 2560 2400
B Height at steering whell mm 1650 1600 1600
C Width mm 2450 2450 2320
D Inside cab width mm 780 780 780
E Track mm 1980 1980 1920
F Wheelbase mm 2850 2850 2950
G Lenght to the front tyres mm 4700 4650 4790
H Lenght to the attachment holding plate mm 6490 6100 6060
I Ground clerance, center mm 425 375 390
J Max width with ext. outriggers mm 2950 2950 2890
K Ground clerance, axle mm 450 400 441
• Inside turning radius mm 2150 2150 2425
• Outside turning radius mm 4500 4500 4650
GTH-4017 EX GTH-4514 EX
Technical Specification
D
E
C
J
K
B
A
M1
M2
GTH-4017 EX GTH-4514 EX
D
E
C
J
K
B
A
I
