Terex Genie GTH-4017 EX - Change the Engine Oil and Relevant Filter

November 2008 Section 4 - Maintenance Procedures
TABLE A
Document 57.0009.0427
33
GTH-4017EX GTH-4514EX GTH-4013EX

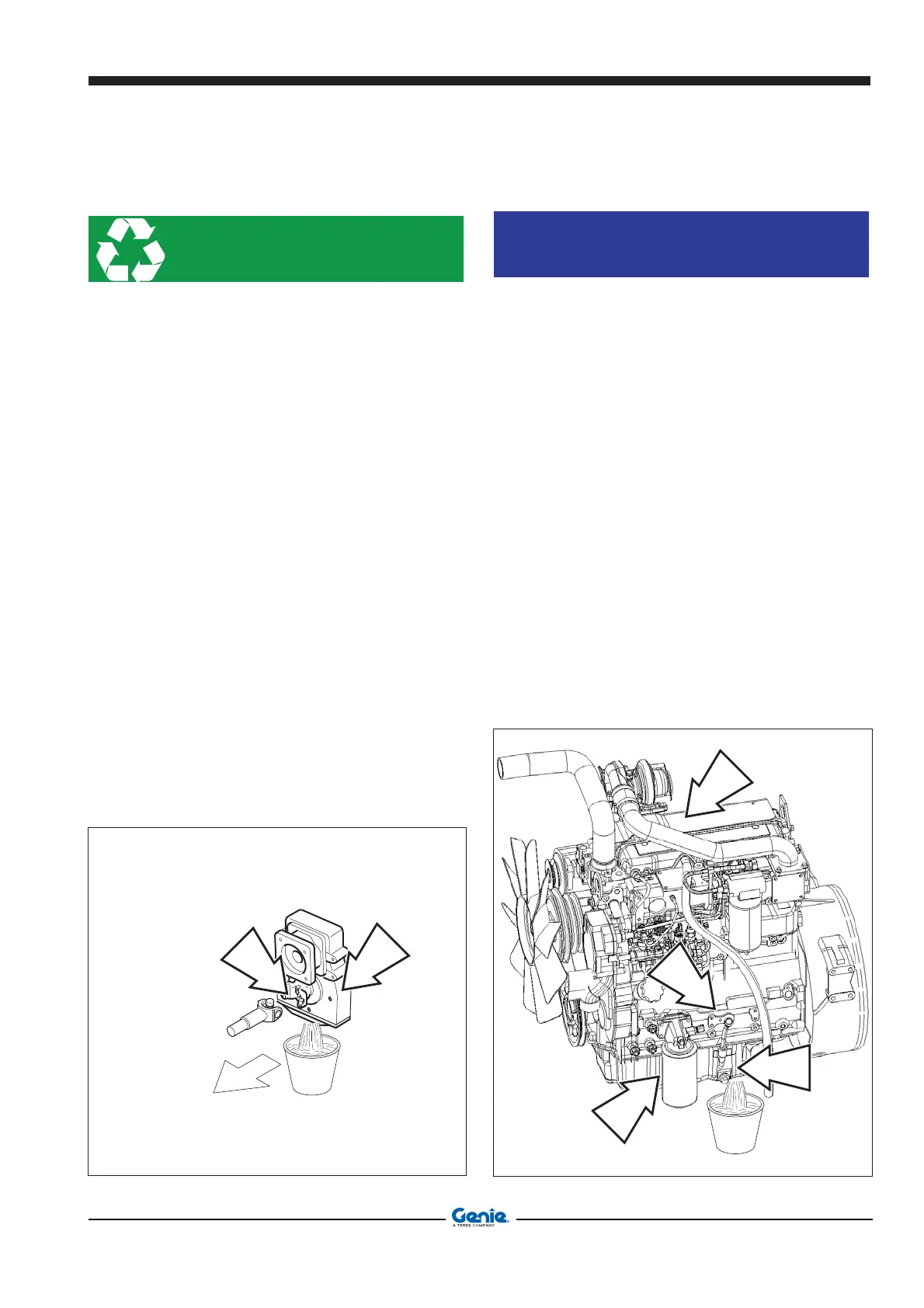

To change the oil in the power divider reduction
gears:
- Stop the machine on a level ground and ensure the
parking brake is engaged.
PROTECT THE
ENVIRONMENT
Place a container of suitable size under the plug for
oil leaks.
- Remove the plug A.
- Remove the plug B and allow the oil to flow
entirely.
- Refit the plug B.
- Add the oil through the plug A until it is level with
hole.
- Refit the plug A.
Recommended oil:
- TRACTORENAULT THFI 208 LF SAE 80W
API GL-4 / FORD M2C 86 B / Massey Ferguson M
1135
C-2 CHANGE THE ENGINE OIL AND RELEVANT
FILTER
- Stop the machine on a level ground and ensure the
parking brake is engaged.
NOTICE
For the engine maintenance, please refer to the specific
Operator’s manual supplied with the machine.
- Remove the plug A.
- Remove the plug B and allow the oil to flow
entirely.
- Refit the plug B.
- Unscrew the filter D and change it with a new one.
- Add new oil through the plug A.
- Using the rod C, check the right engine oil level.
A
B
B
A
C
D
