A-13 GREASE ALL JOINTS OF THE BOOM, THE REAR
AXLE SHAFT JOINT, THE TRANSMISSION
SHAFTS, THE FRONT AND REAR AXLES AND
ANY EQUIPMENT OF THE MACHINE
CAUTION
Before injecting grease into the greasers, thoroughly
clean them to avoid that mud, dust or other matters
can mix with the lubricant and reduce or annihilate
the lubrication effect.
Remove any old grease with a degreaser from the
telescopes before smearing them with new grease.
Regularly grease the machine to grant it efficient condi-
tions and a long life.
By means of a pump, inject grease into the special
greasers.
As the fresh grease comes out, stop the operation.

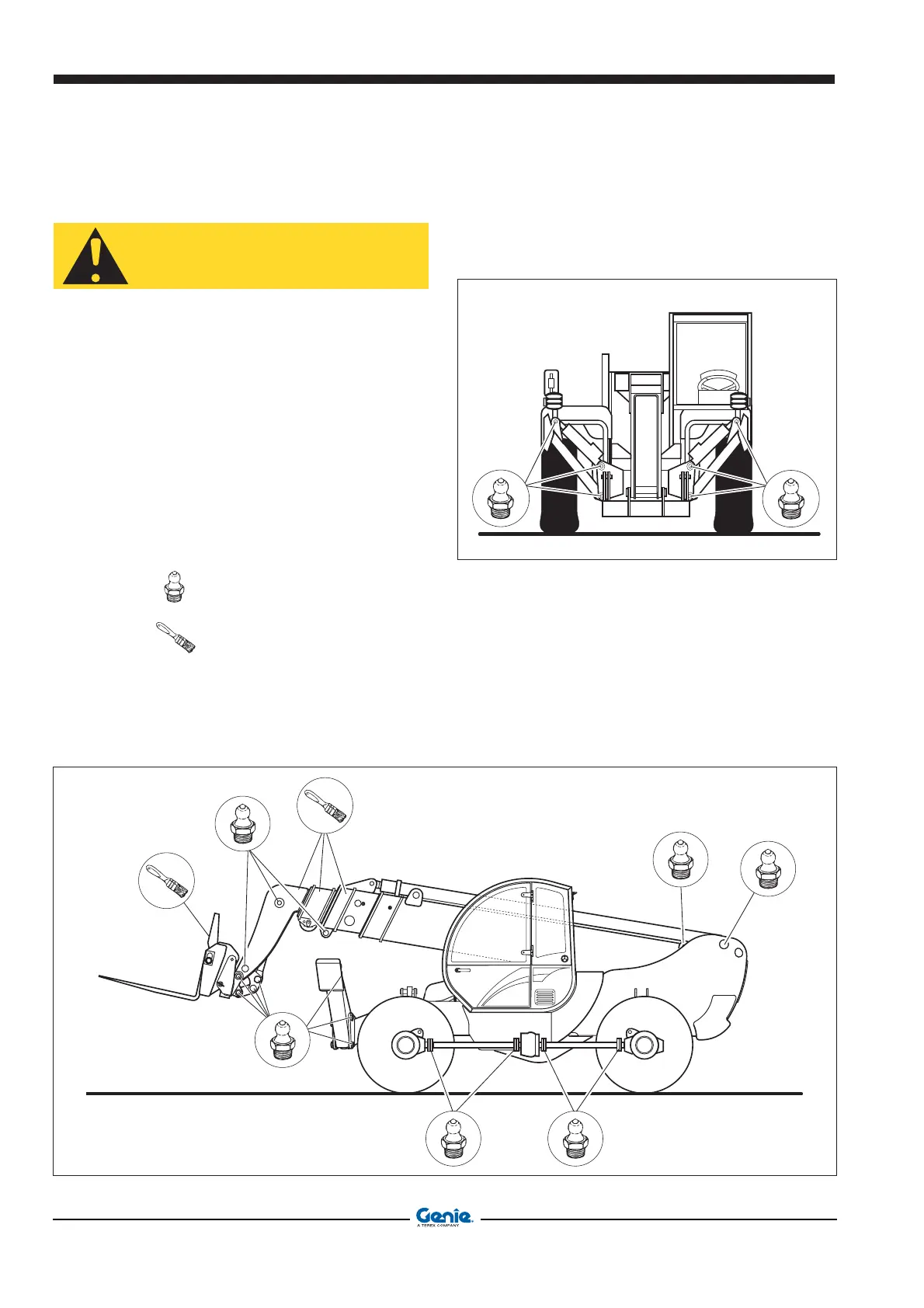

The greasing points are shown in the following figures:
- the symbol
represents the points to be greased
by a pump
- the symbol
represents the points to be greased
by a brush.
