Hours Min.
Procedure:
Table: 006
GTH-4017EX
GTH-4514EX
GTH-4013EX
November 2008 Section 7 - Repair Procedures
TABLE 006S
Document 57.0009.0427
21
GTH-4017EX GTH-4514EX GTH-4013 EX
2
6

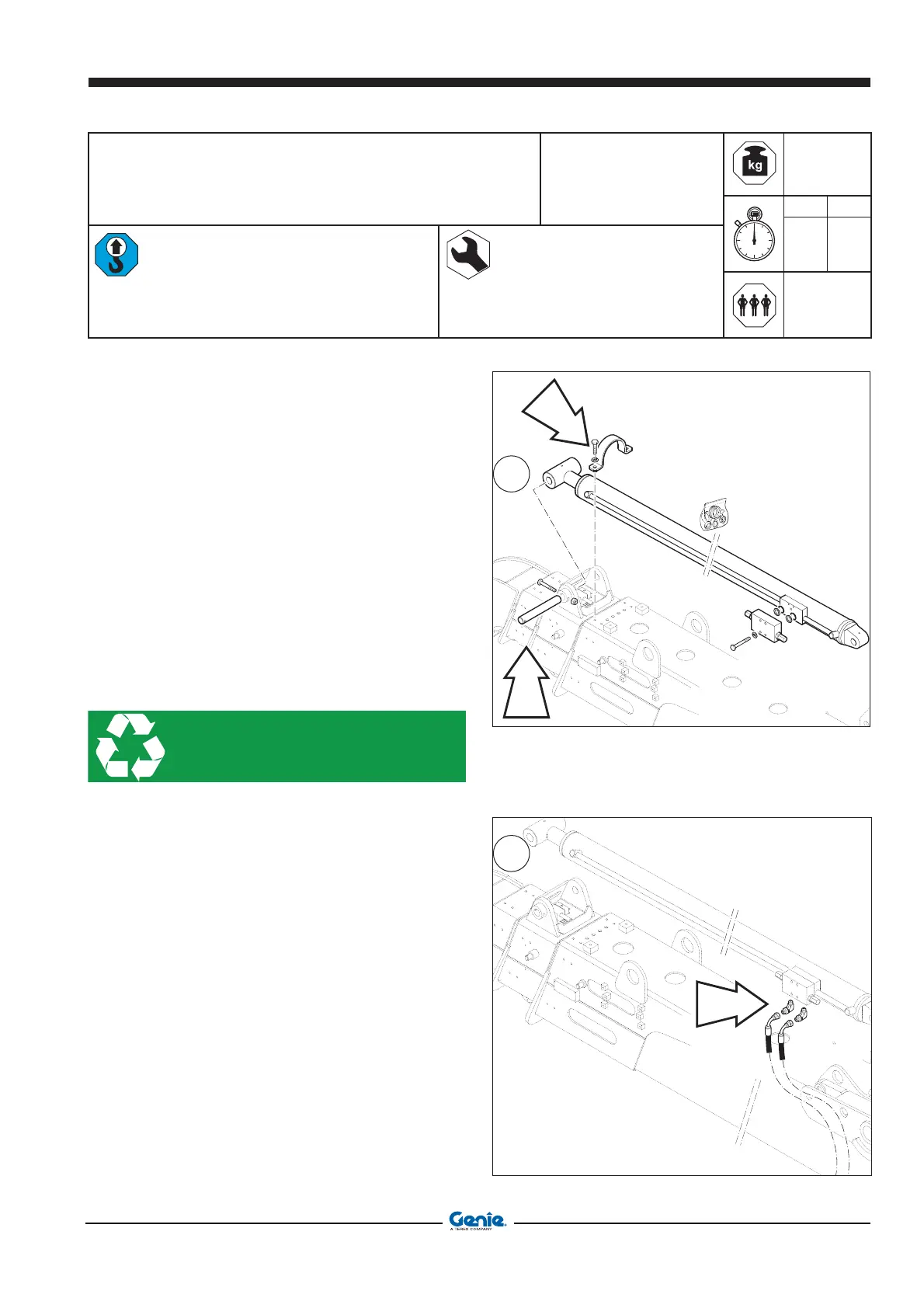

Cylinder disassembly
Boom extension cylinder
GTH-401 EX - GTH-451 EX
Bridge crane, payload 500 kg
Textile bridles or chains with hooks
Standard tools
92
2 30
1
Operation:
1 Set the boom to horizontal position with the
telescope slightly extended to work on the
cylinder connecting pin (rod side).
2 Remove the screw fixing the pin to the boom
section using two 17mm wrench.
3 Extract out and knock the pin using a plug of
soft material (aluminium, copper, wood, etc.).
4 Remove the two screws of the bracket A using
a 22mm wrench.
5 Place a container of suitable size under the
hydraulic piping before disconnecting.
PROTECT THE
ENVIRONMENT
Used oils must be handled and disposed of
according to local regulations. Address to
legally authorised centres.
6 With a 24 mm wrench, disconnect the two
hydraulic hoses from the blocking valve, then
plug the disconnected connectors to prevent
dust and impurities from entering the circuit.
A
