Terex Genie GTH-4017 EX - Cylinder Disassembly - Attachment Rotation Cylinder

Procedure:
Table: 015
GTH-4017EX
GTH-4514EX
GTH-4013EX
Section 7 - Repair Procedures November 2008
TABLE 015
Document 57.0009.0427
GTH-4017EX GTH-4514EX GTH-4013 EX
46
Cylinder disassembly
Attachment rotation cylinder

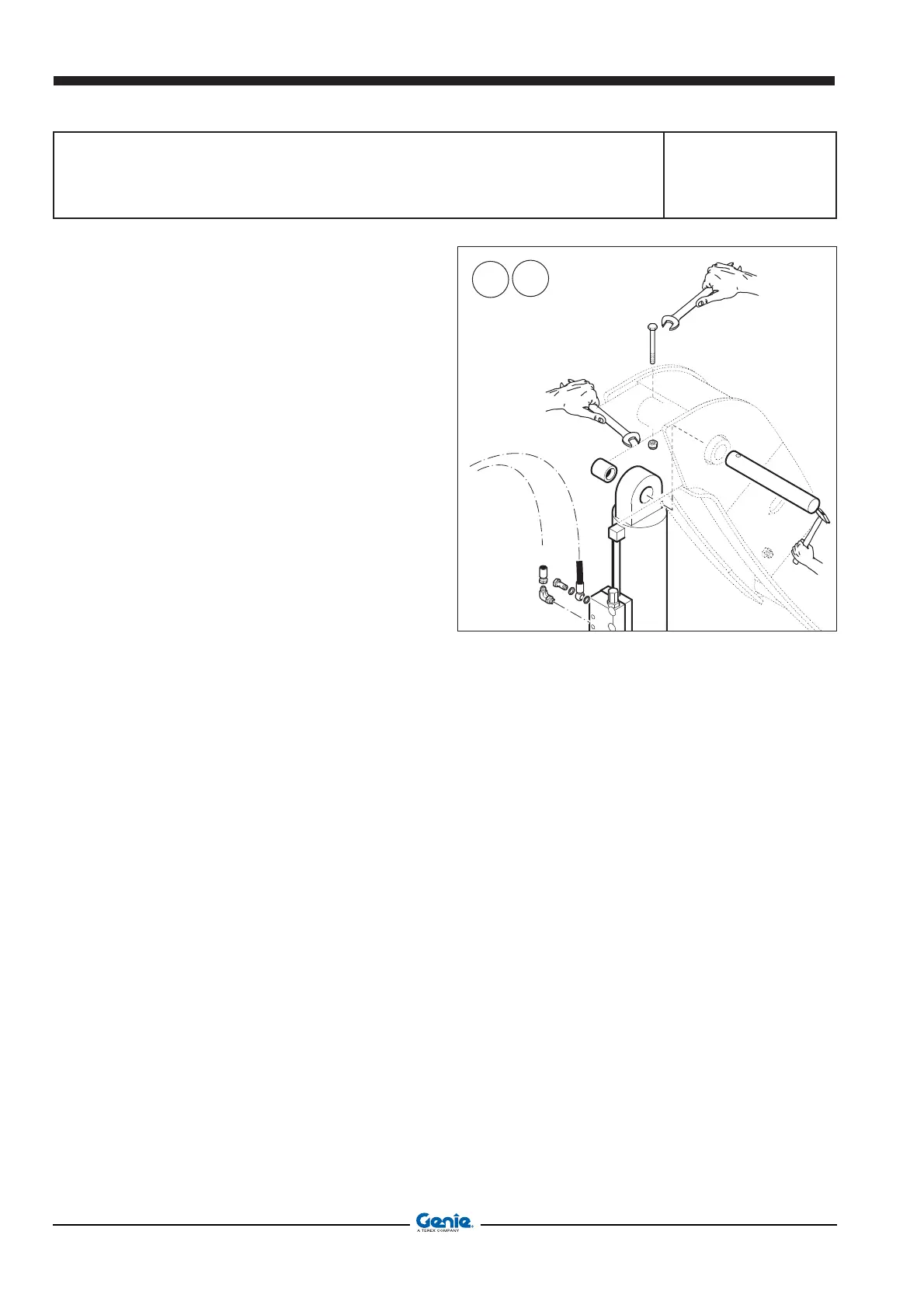

8 Remove the screw fixing the cylinder pin (bottom
side) using two 17 mm wrenches.
9 Knock out and extract the pin using a plug of
soft material (aluminium, copper, wood, etc.).
10 Secure the cylinder to the bridge crane with a
textile bridle, then slightly raise the boom to set
the cylinder free.
11 Remove the cylinder using the bridge crane.
8
9
