Terex Genie GTH-4017 EX - Check the Efficency of the Lighting Electric System

November 2008 Section 4 - Maintenance Procedures
TABLE A
Document 57.0009.0427
17
GTH-4017EX GTH-4514EX GTH-4013EX

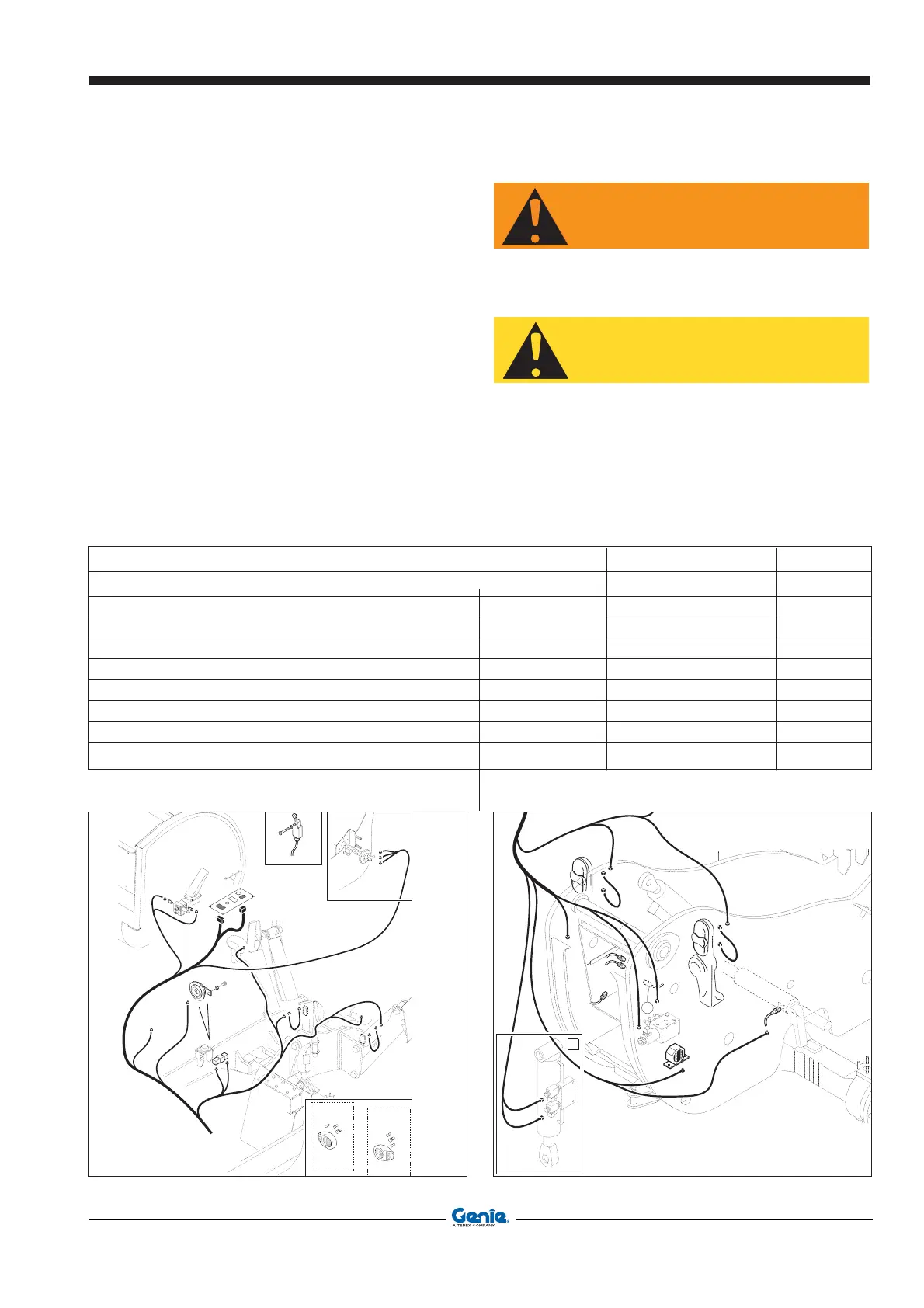

A-14 CHECK THE EFFICENCY OF THE LIGHTING
ELECTRIC SYSTEM
Check every day that the electrical system powering the
lights of the machine is in efficient working order.
Use the assistance of a second technician to check that
the front lights (position lights, low and high beams and
turn signals) and the rear lights (position lights, stop/tail
lights and turn signals) are in excellent state of repair.
Also check beacon located on the cab roof.
If one lamp or more must be replaced, use the table
below as a reference.
WARNING
When switched on, lamps get hot. Before touching
a lamp with your fingers, let it cool down.
CAUTION
Never touch the bulb of halogen lamps with your
fingers: this may damage the lamp (use of a clean
cloth or a paper tissue). If you touch it accidentally,
thoroughly clean with a paper tissue and some ethyl
alcohol.
Use Voltage Mount type Power
• Front low/high beam 12 V P45t 45/40 W
• Front position lights 12 V BA 9s 3 W
• Side/tail turn signals 12 V BA 15s 21 W
• Stop lights and rear position lights 12 V BAY 15d 21/5 W
• Beacon - Work lights (OPTIONAL) 12 V H3 55 W
• Dashboard indicators and cab lighting 12 V W 2x4,6d 1,2 W
• Interior lamp 12 V SV 8,5-8 5 W
• License plate lights 12 V BA 15s 5 W
• Back-up lamps 12 V BA 15s 21W
