Side-Stow Jib
DESCRIPTION-T300-1
Optional jib extension is available to provide additional boom reach, which is a 32-49 ft.
(9.75-14.9 m) side stow swing-on one-piece lattice type jib that is offsettable at 0°, 15°, or
30°. The jib is extendible to 49 ft. (14.9 m) by means of a 18 ft. (5.5 m) pull out tip section.
The 32 ft. (9.75 m) jib weighs 1,280 pounds (581 kg).
DESCRIPTION-T500-1 & T780
Optional jib extension is available to provide additional boom reach, which is a 33-57 ft.
(10.05 - 17.37 m) side stow swing-on lattice type jib. The jib is extendible to 57 ft. (17.37 m)
by means of a 25ft. (7.62 m) manual pullout tip section.
The 33-57 ft. (10.05-17.37 m) jib weighs 2,070 pounds (939 kg).
Each optional jib extension is pinned directly to the ends of the sheave pins. When not in
use, the jib can be unpinned from the boom head and stored on mounting brackets on the
right side of the boom base section.

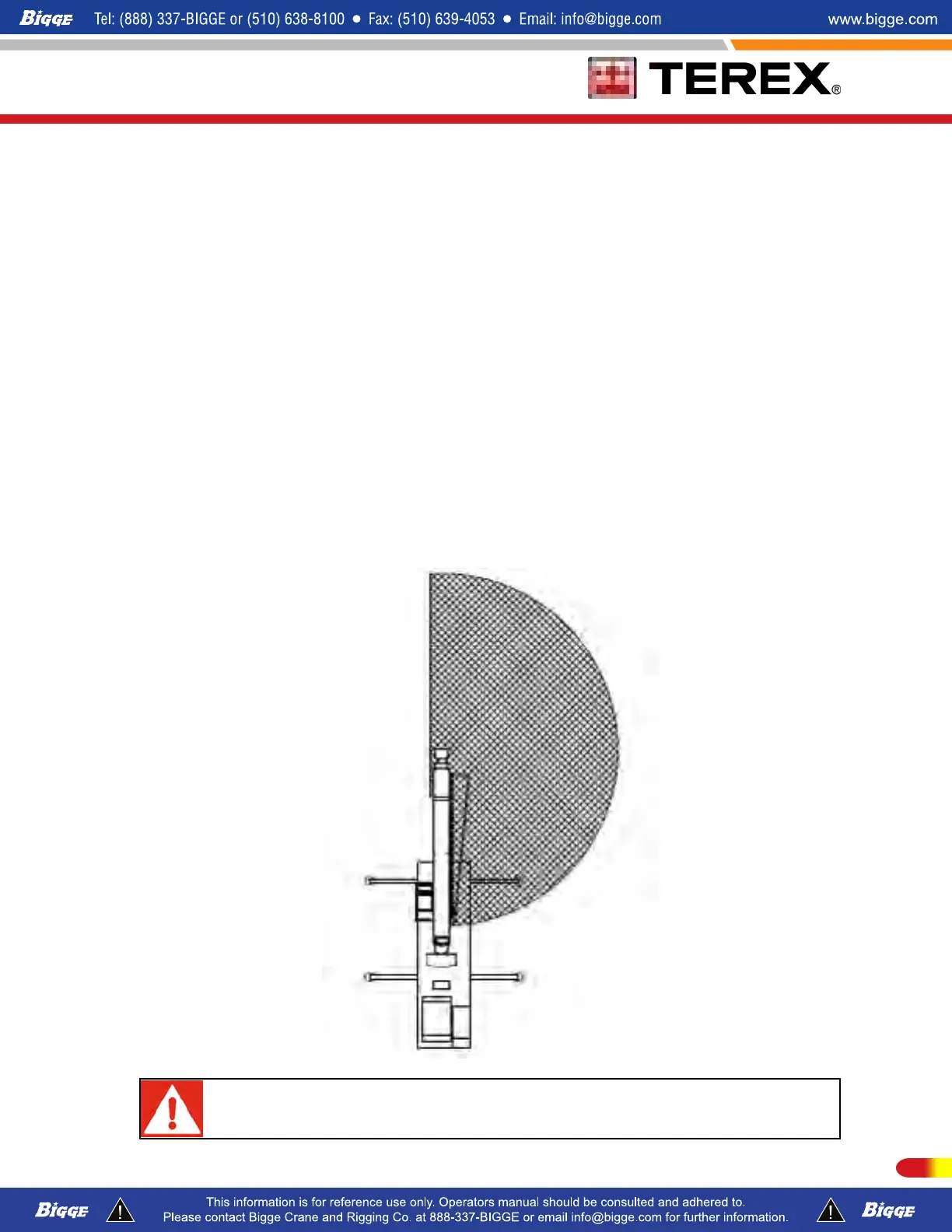

Before erecting or stowing the jib, ensure that no personnel or obstacles are in
the swing path of the jib.
