Shift Control Adjustment
Proper adjustment of the L.R.C. is necessary for smooth shift linkage operation. Use the
procedure listed below to insure correct adjustment. The steps should be followed as listed
to avoid confusion and prevent mistakes.
MOVE THE INNER SHIFT FINGER TO THE NEUTRAL POSITION
Move gear shift lever forward or backward to the neutral position.
Move the gear shift lever sideways, toward reverse, until you feel resistance from the
reverse plunger spring. DO NOT overcome the spring tension and shift to reverse. The shift
finger must remain in this position while you are making all the adjustments.

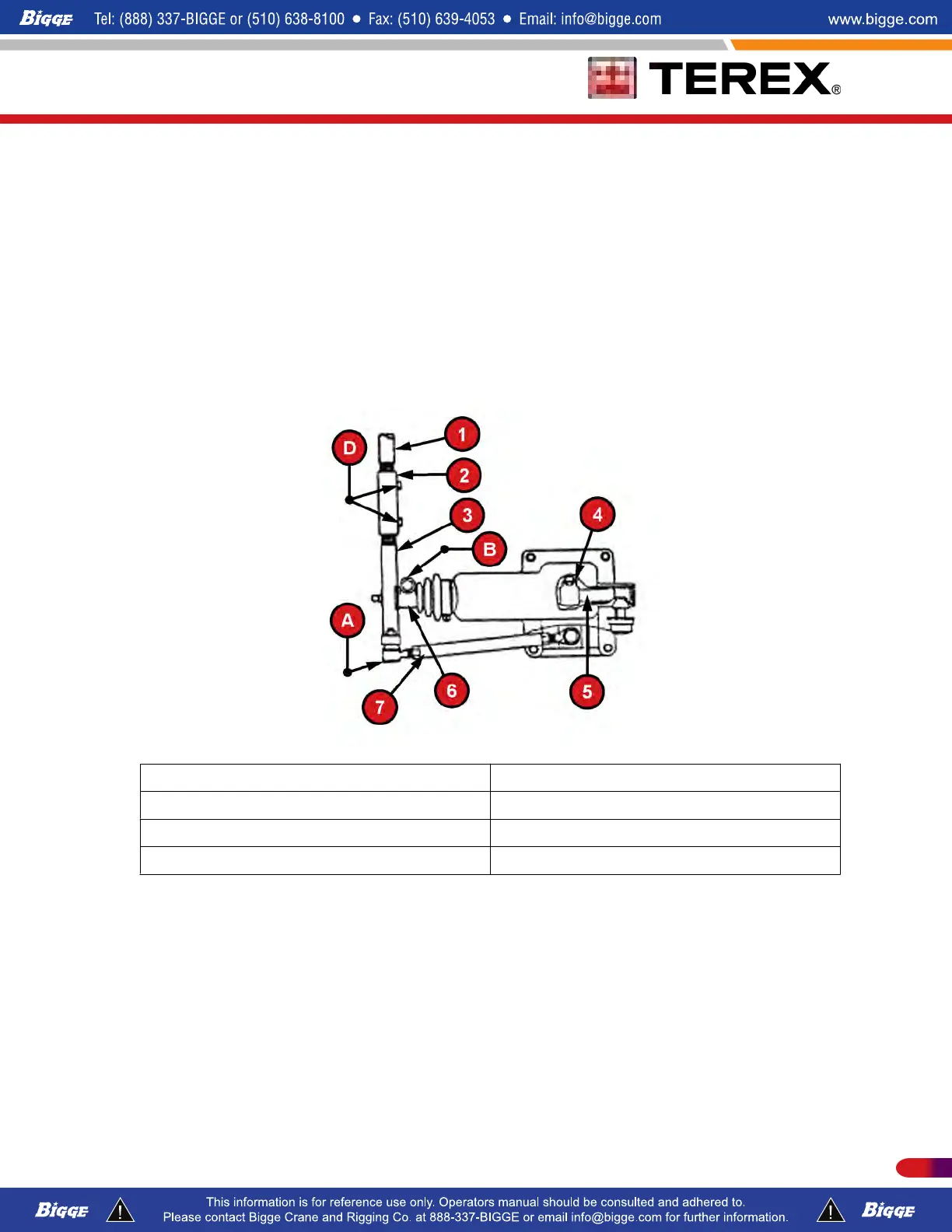

1. REACH ROD 2. TURNBUCKLE
3. SELECTION LEVER 4.INNER SHIFT FINGER
5. INNER SHIFT SHAFT 6. SHIFT ARM
7. PIVOT LINK ASSEMBLY
ADJUST THE SLAVE UNIT
Remove the cotter pin, castle nut, and ball joint A from the selection lever. Do not remove
the ball joint from the pivot link.
Loosen capscrew B and remove shift arm from inner shaft. Do not disconnect the selection
lever from the shift arm.
Turn the shift arm until it is at a right angle (90°) to the selection lever as viewed from the side.
469P/N 12261-683 REVISED: January 2015
