Terex T780 - Extending and Retracting the Jib Pull-Out Section

Extending and Retracting the Jib Pull-out Section

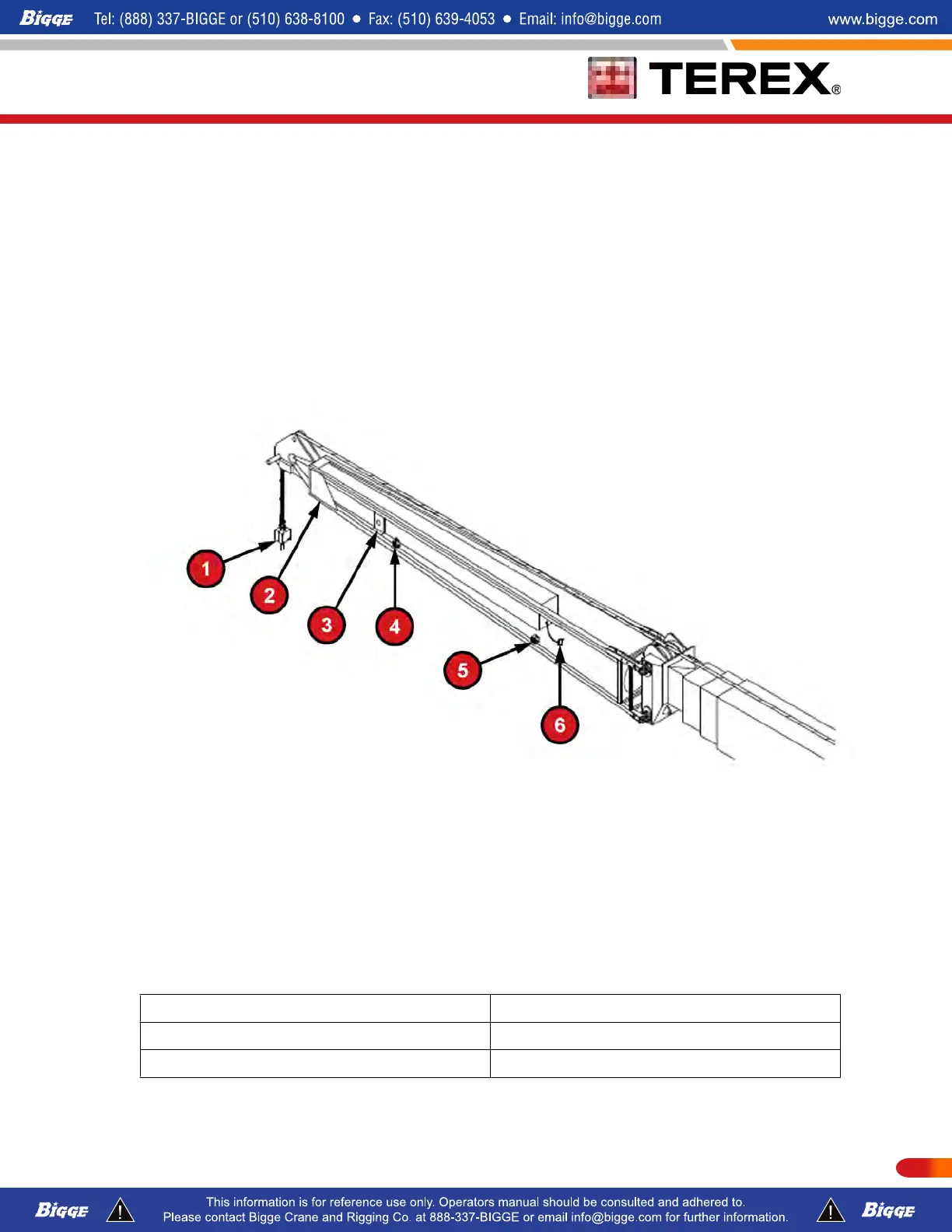

1 Anti Two-block Weight 4 Anti Two-block Extended Socket
2 Attach Dead-end Of Rope 5 Anti Two-block Retracted Socket
3 Pull Out Retaining Pin Hole 6 Pull out Anti Two-block Plug
NOTE: The jib must be erected before extending the pullout section. Do not attempt
to extend the pullout section while the jib is stowed.
67P/N 12261-683 REVISED: January 2015
