Air-Ride Suspension
This machine is equipped with an air suspension on both the front & rear axles. Operation
of the suspension is very simple. As explained in Group 2, air is added or released from the
air bags by depressing the switch in the carrier cab.
T300-1-Dumps air only on rear axles.
T500-1 & T780-Dumps air on both front & rear axles.
RIDE HEIGHT ADJUSTMENT
To adjust the ride height, begin by loosening clamp (1). This will allow the bar to slide so
that the trailing arm can be rotated relative to the frame. Adjust the suspension member so
that its surface (2) is parallel to the frame surface (3). Pass a small rod through the holes in
the air yoke (4) and the switch (5). The rod should pass through both outside holes and
between the two small bosses on the switch. Tighten the clamp (1). Remove the small rod,
by moving arm (4) up to add air, pushing the trailing arm away from the frame, or down to
bring it closer.

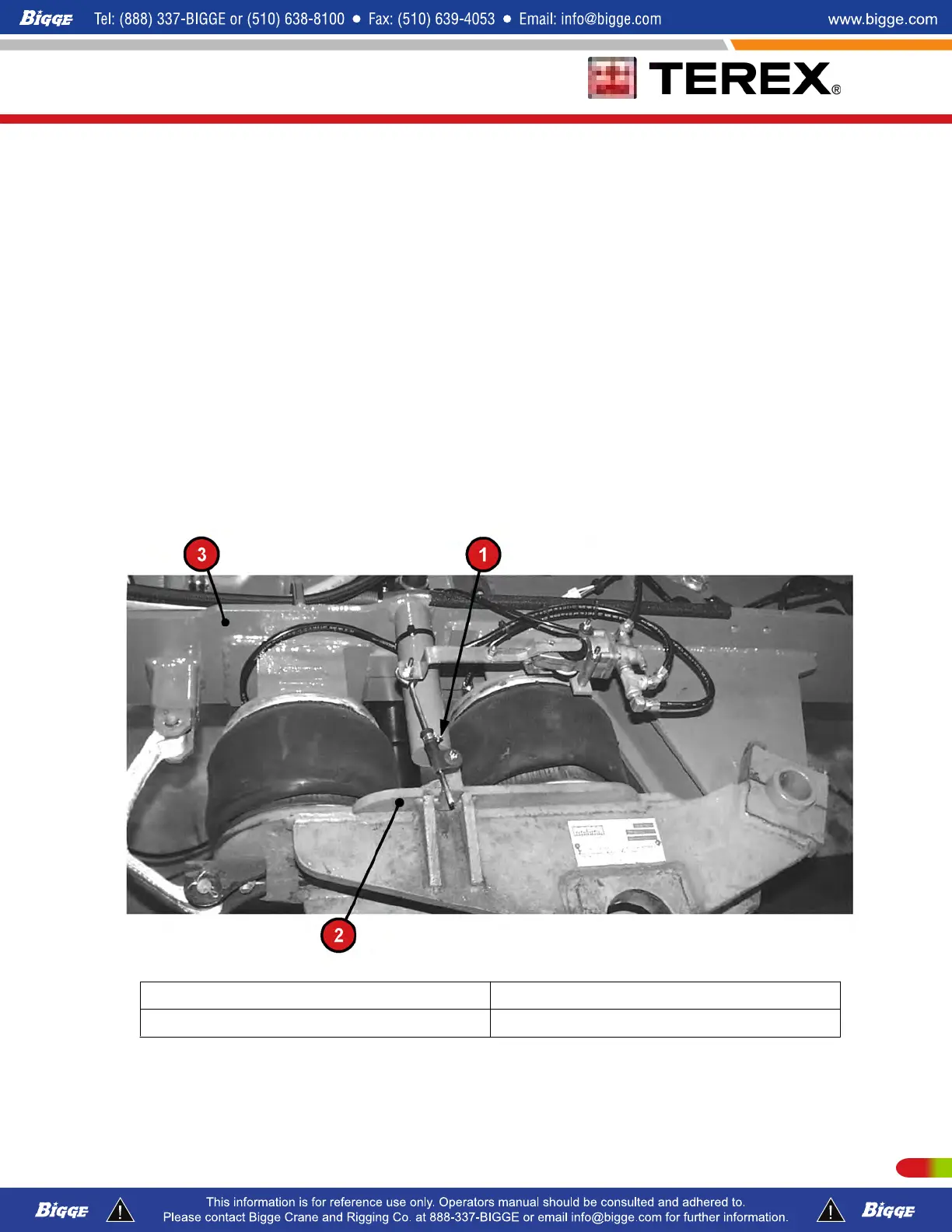

1 Clamp 3 Frame Surface
2 Suspension Member Surface
