Propellor Shaft & Universal Joints
The drive train on this machine incorporates three drive shafts and five universal joints:
The front shaft extends from the transmission to a point just above and aft of the forward
outrigger box. The shaft runs in a “Hanger” bearing at this point.
The second shaft couples with the front shaft and extends rearward to the intermediate axle.
The third shaft couples the two axles of the rear bogie, transmitting drive from the forward
driving axle to the rear axle.
End yokes are used at all shaft ends and all couplings use bearing-cap type cross journal
retainers.

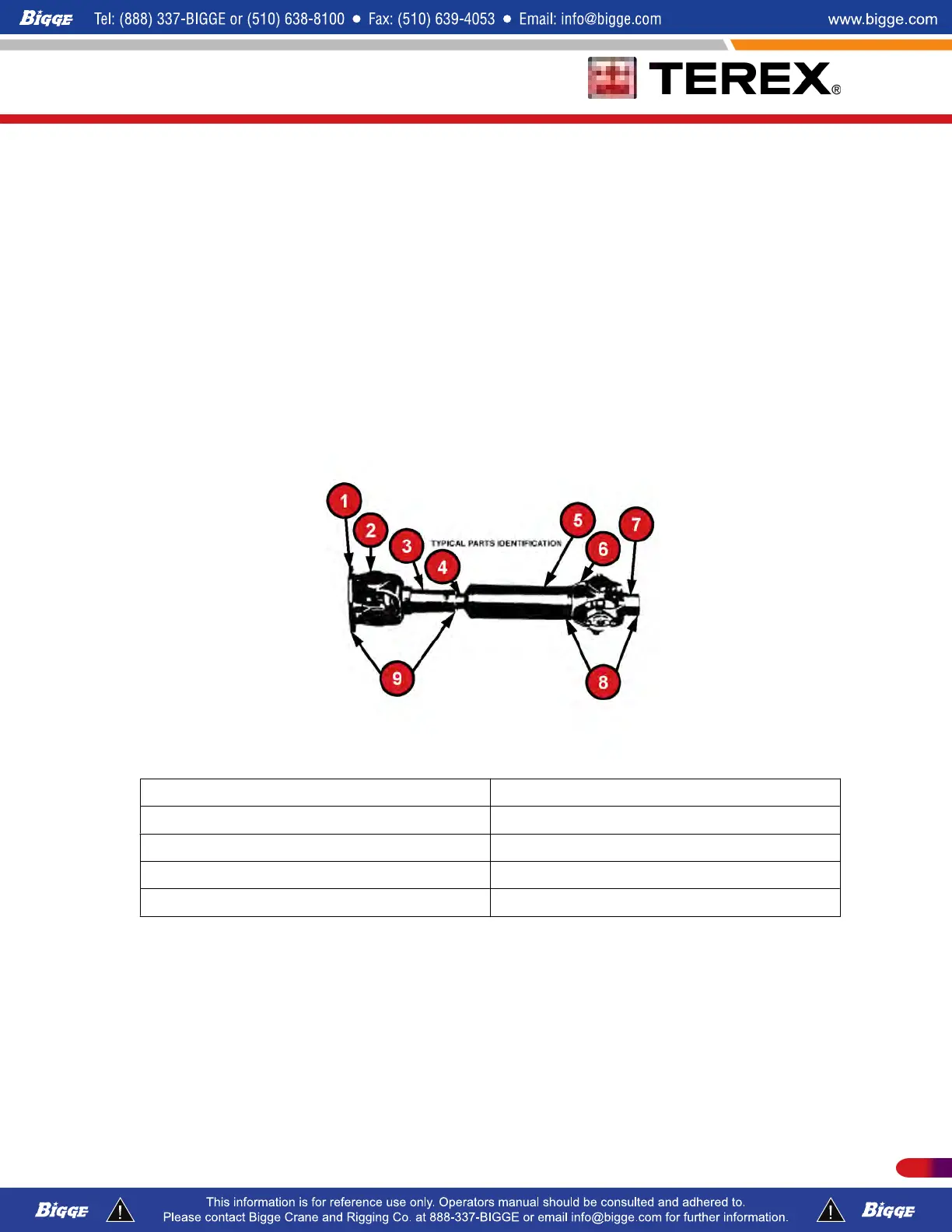

1. Flange Yoke 6. Stub Yoke
2. Journal and Bearing Kit 7. End Yoke
3. Sleeve Yoke Assembly 8. Permanent Joint
4. Slip Stub Shaft 9. Slip Joint
5. Tubing
DRIVE SHAFT REMOVAL
Remove the drive shafts by the following procedures:
THIRD SHAFT (Inter-axle Shaft)
Remove the capscrews, lock plates, and bearing caps from the intermediate and rear axle
end yokes. Remove the shaft with journal crosses and remaining bearings as a unit. Axle
end yokes remain on the vehicle
SECOND SHAFT
455P/N 12261-683 REVISED: January 2015
