NOTE: Ideally, the shift arm should be adjusted 90° to the selection lever as
described, but in some chassis configurations, it may be necessary to index the shift
arm in the vertical position. This is done to prevent a shift lever jump out complaint.
This type of adjustment will cause an unequal amount of gear shift lever travel
between neutral and a forward lever position as compared to neutral and a rearward
lever position.
Re-install the shift arm on the splines of the inner shift shaft. You may have to move the
shift arm 4 or 5 degrees to align the splines of the two parts. Disregard any movement of
the gear shift lever at this point. You will adjust the gear shift lever later.
Tighten capscrew B
Re-connect pivot link assembly ball joint to selection lever. Secure with castle nut and
cotter pin.
Loosen jam nuts C on pivot link.
Check to be sure the inner shift finger is still in place as described above.
Rotate pivot link until curved end of selection lever is parallel with the shift arm as viewed
from the rear.
Tighten pivot link jam nuts C.

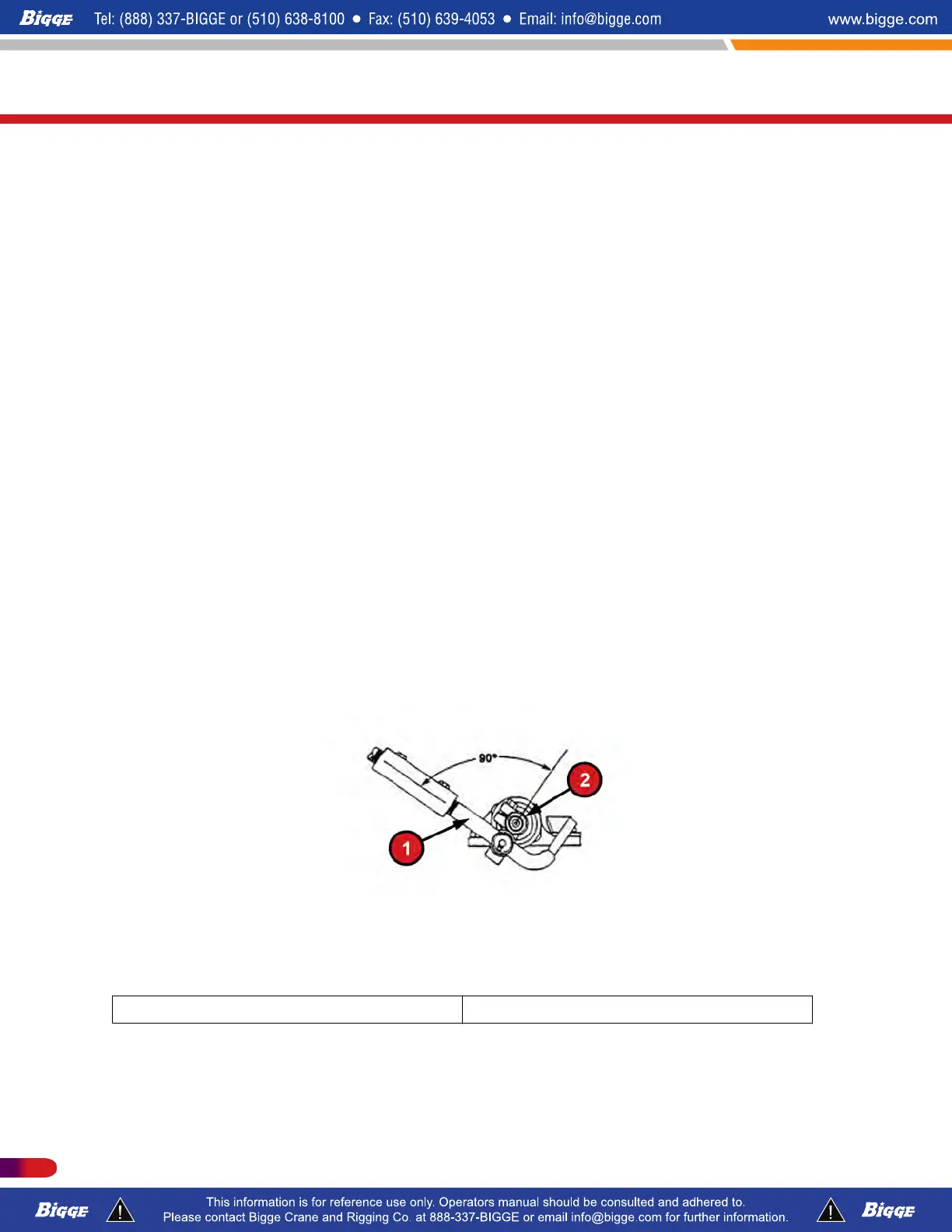

1. SELECTION LEVER 2. SHIFT ARM
ADJUST GEAR SHIFT LEVER NEUTRAL POSITION
Loosen both capscrews on turnbuckle D
Check to be sure inner shift finger is still in place as described above.
