Rotate turnbuckle to obtain proper forward-backward neutral position of the gear shift lever
in the cab.
Tighten one turnbuckle capscrew D
Move gear shift lever to desired left-right neutral position.
Tighten second turnbuckle capscrew D
Check for linkage obstructions in all gear positions.

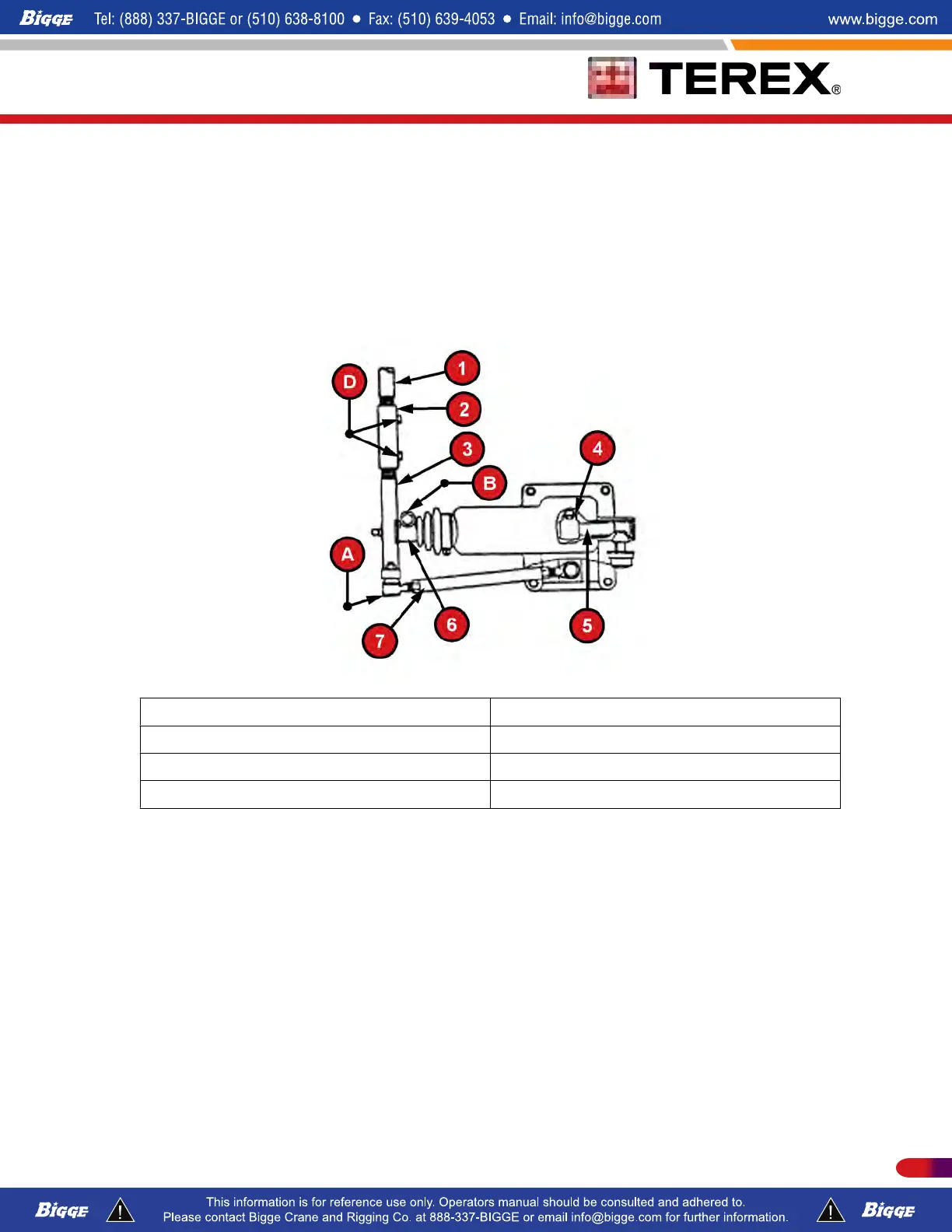

1. REACH ROD 2. TURNBUCKLE
3. SELECTION LEVER 4.INNER SHIFT FINGER
5. INNER SHIFT SHAFT 6. SHIFT ARM
7. PIVOT LINK ASSEMBLY
