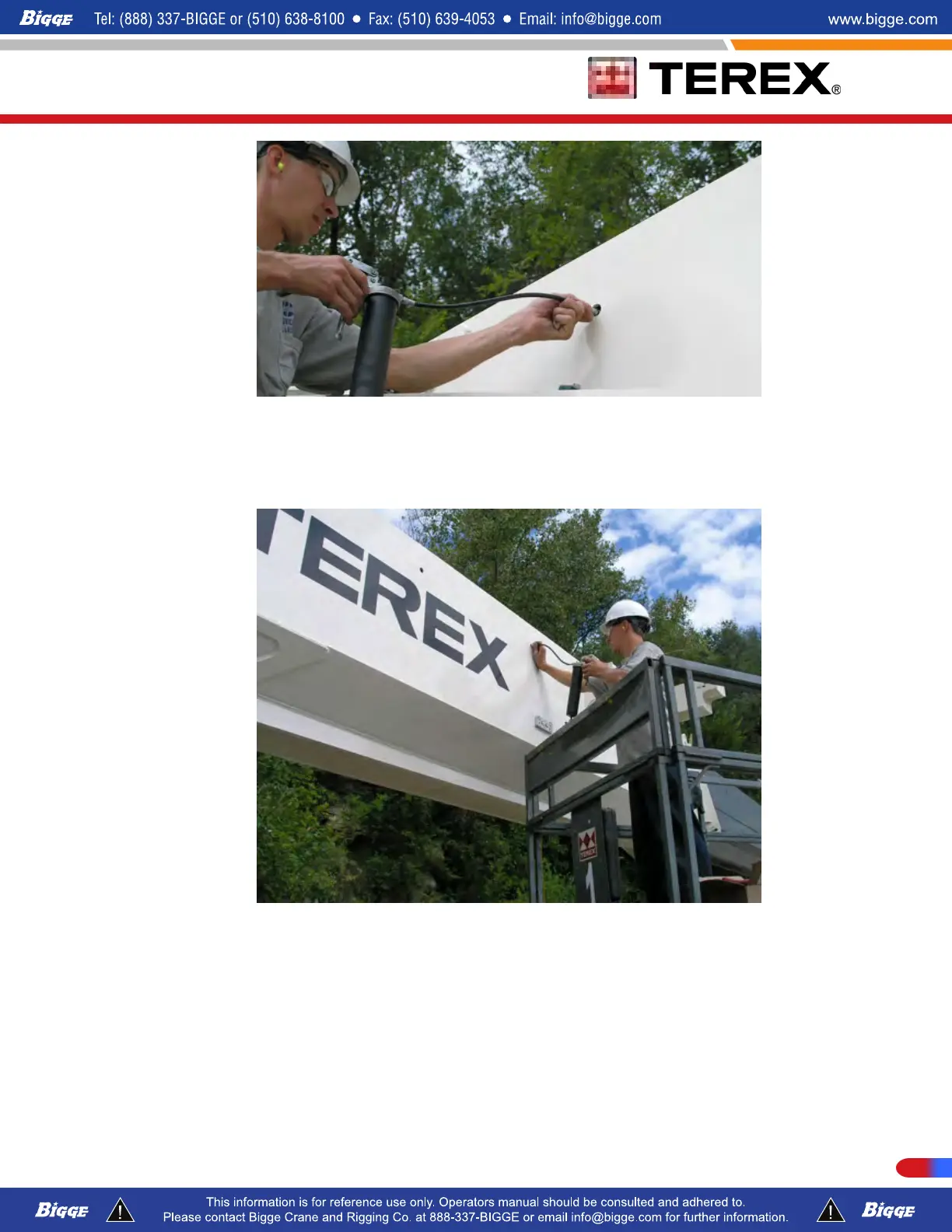

1. Repeat item 4. for each of the access holes going forward on the base boom as
the second section is extended approximately (3) FT. each time. The last hole in
the base boom will line up with the zerk when the second section is fully
extended as shown in photo below.
1. Extend the second section for the 1st zerk hole in the second section of the
boom to line up with zerk in 3rd section. Grease the zerk on each side of the
second section (10) shots. See photo below.
325P/N 12261-683 REVISED: January 2015
