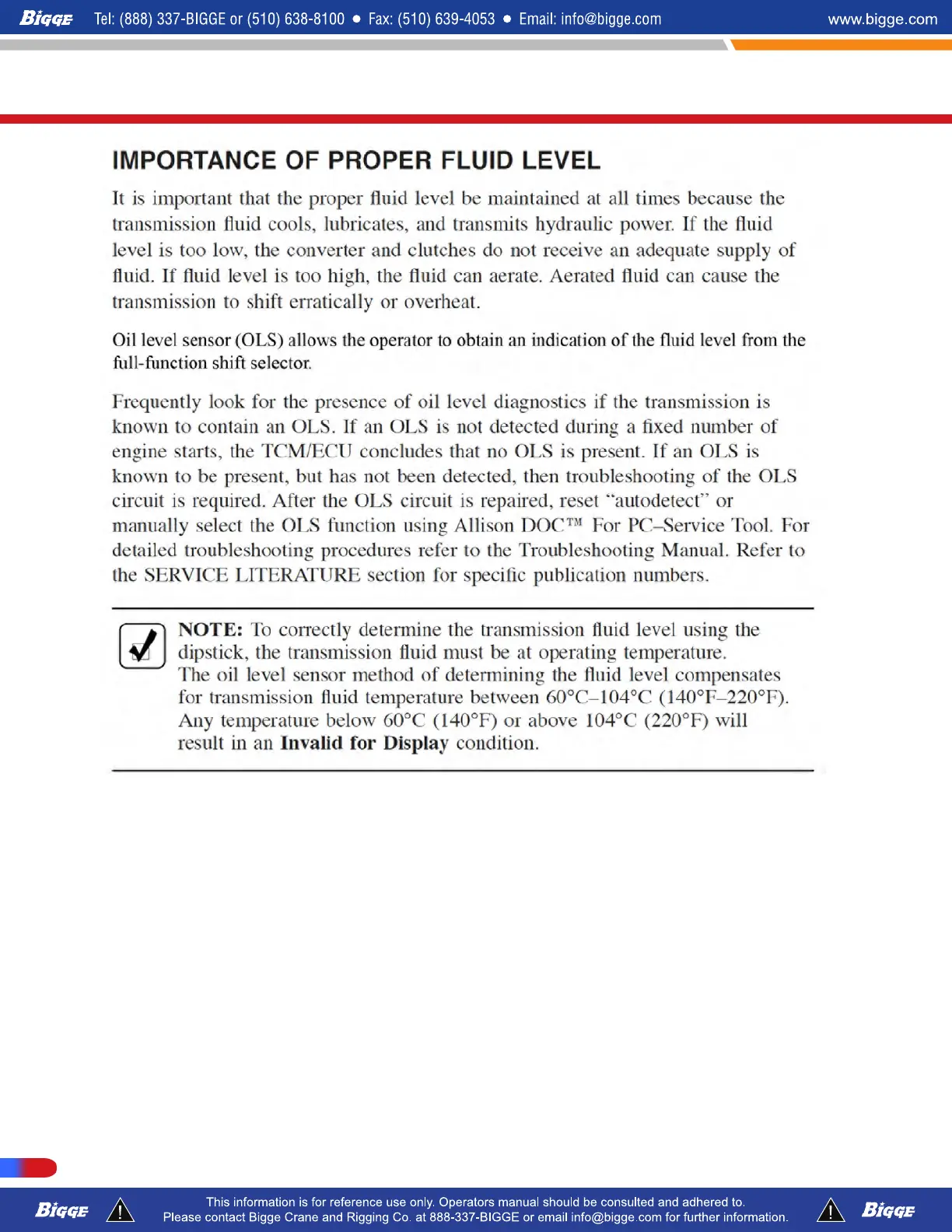

Fluid Level Check
Fluid level check by using the Lever Shift Selector and perform the following steps:
1. Park the vehicle on a level surface, shift to N (Neutral), and apply the parking brake.
2.
Engine at idle, fluid temperature is above 60 degrees C (140F) and below 104 degrees
C (220F) and transmission output shaft is stopped. The fluid temperature may be
delayed until the temperature range is met.
3. The vehicle has been stationary for approximately two minutes to allow the fluid to settle.
4. Lever Shift Selector-Press the Display Mode/Diagnostic button once.
5. The delayed fluid level check is indicated by a "-" in each of the digital displays
(SELECT and MONITOR) followed by a numerical countdown. The countdown, from 8
to 1, indicates the time remaining in the two minute waiting period. The following is an
explaination of what will appear in the SELECT and MONITOR digital displays.
Correct Fluid Level
T300-1_T500-1_T780
Maintenance
342 P/N 12261-683
